Product Overview

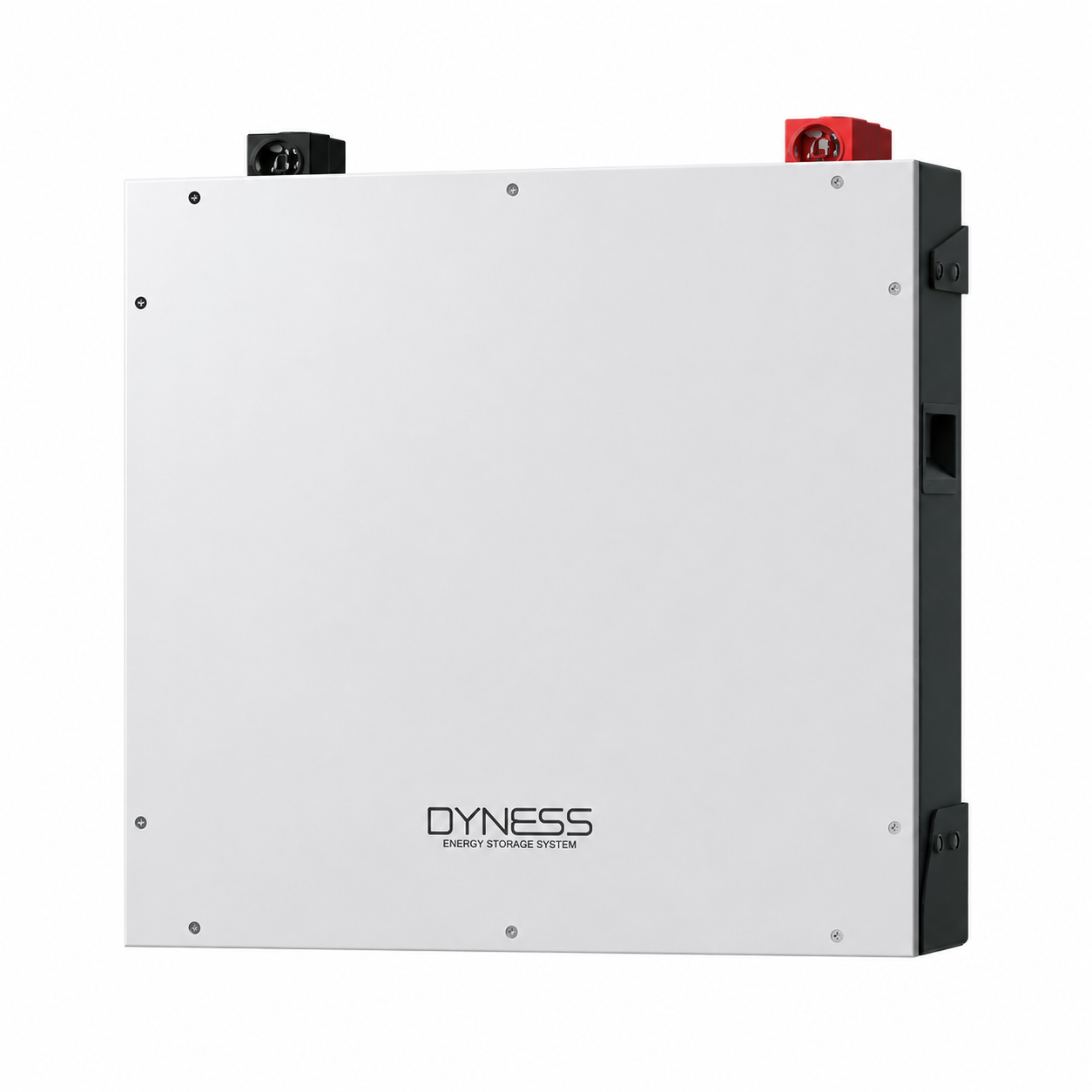

The Dyness DL5.0C is a 5.12kWh low-voltage LiFePO4 battery designed for residential and small commercial energy storage. Its modular design supports flexible system expansion, making it suitable for backup power, hybrid and off-grid applications where a scalable battery bank is required.
Key Features
- 5.12kWh nominal battery energy with a 51.2V, 100Ah LiFePO4 battery platform.
- Supports up to 50 units connected in parallel for scalable storage systems from a single battery through to larger installations.
- 1C maximum discharge rate provides strong power delivery for demanding backup and energy storage applications.
- Recommended 50A charge and discharge current, with maximum continuous discharge current of 100A.
- CAN, RS485 and RS232 communications support integration with compatible inverter systems.
- Multiple installation options include wall-mounted, floor-standing and stacked configurations.
- Optional app monitoring provides real-time system monitoring and remote upgrade capability.
- LiFePO4 chemistry with cell-level monitoring and balancing supports safe, reliable operation.
Applications
- Residential backup power systems.
- Hybrid solar power systems.
- Off-grid solar power systems.
- Small commercial energy storage installations.
- Expandable battery banks where additional capacity may be required over time.
Why Choose This Product?
The DL5.0C combines a compact 5.12kWh battery format with flexible expansion, multiple mounting options and broad inverter integration support. It is a practical choice for installers and system owners who need a modular low-voltage battery platform that can grow with changing energy requirements.
Important Notes
- Battery and inverter compatibility must be confirmed against the latest Dyness inverter matching list before installation.
- Installation, configuration and commissioning should be completed by a suitably qualified installer in accordance with applicable electrical requirements.
- The battery is rated IP20 and should be installed in a suitable protected environment.
- Dyness lists compatible inverter brands including SMA, Victron, Ingeteam, GoodWe, Solis, Deye, SAJ, Voltronic and Growatt; specific model compatibility must still be verified before installation.
Technical Specifications
| Specification |
Detail |
| Brand |
Dyness |
| Model |
DL5.0C |
| Supplier Product Code |
DY-DL5.0C-V2 |
| Product Type |
Low-voltage LiFePO4 battery |
| Battery Chemistry |
LiFePO4 |
| Nominal Battery Energy |
5.12kWh |
| Nominal Capacity |
100Ah |
| Nominal Voltage |
51.2V |
| Operating Voltage |
44.8–57.6V |
| Recommended Charge / Discharge Rate |
0.5C |
| Maximum Discharge Rate |
1C |
| Recommended Charge / Discharge Current |
50A |
| Maximum Continuous Charge Current |
75A |
| Maximum Continuous Discharge Current |
100A |
| Peak Charge / Discharge Current |
110A for 15 seconds |
| Depth of Discharge |
90% |
| Communication |
CAN / RS485 / RS232 |
| Cycle Life |
≥6000 cycles |
| IP Rating |
IP20 |
| Parallel Expansion |
Up to 50 units |
| Dimensions |
558 × 545 × 150mm |
| Net Weight |
49.9kg |
| Charging Temperature Range |
0–55°C |
| Discharging Temperature Range |
-20–55°C |
| Certifications / Safety Standards |
UN38.3 / CE-EMC / IEC62619 / CEI-021 |
