Product Overview

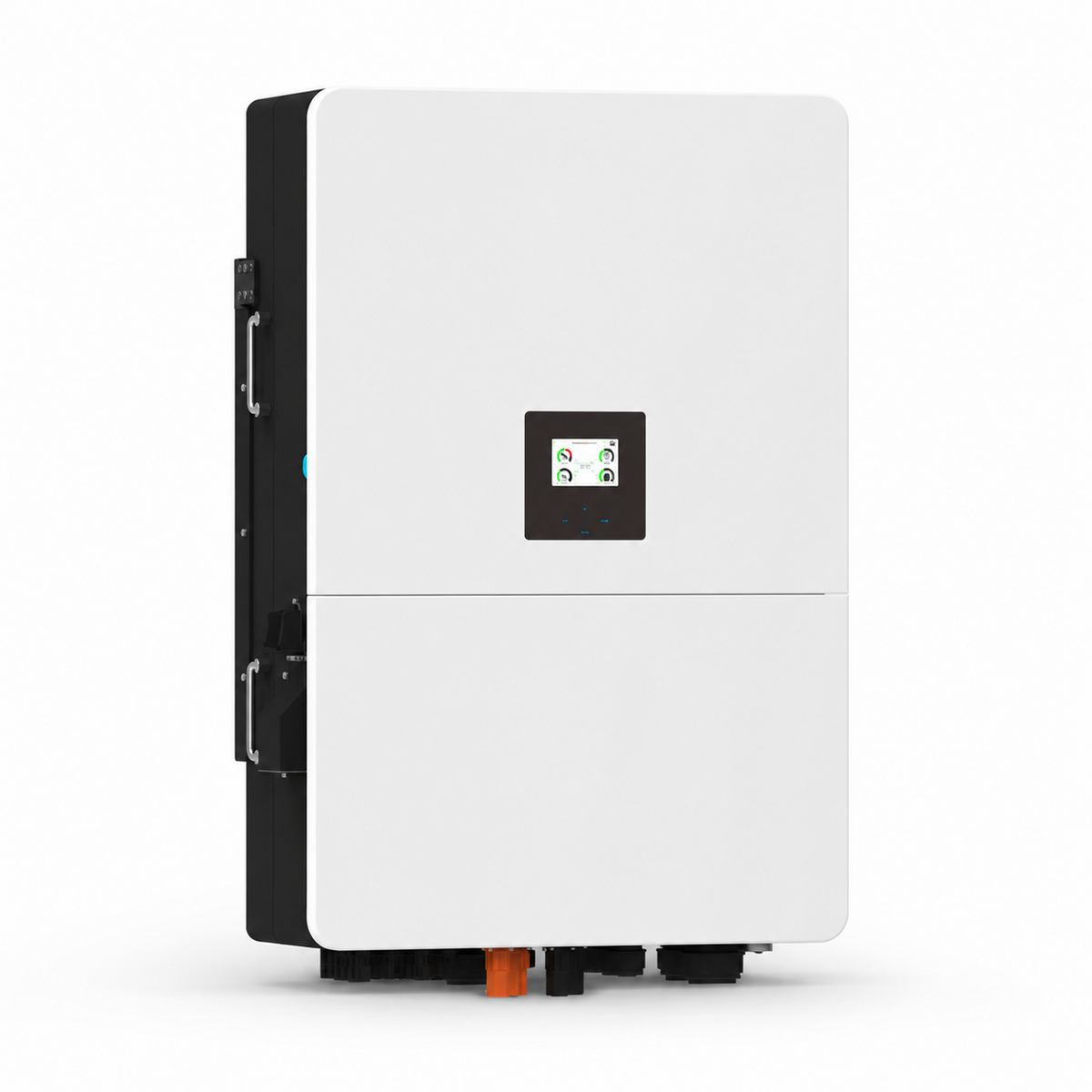

The Deye SUN-80K-SG02HP3-EU-EM6 is an 80 kW three-phase hybrid inverter designed for large solar and energy-storage installations. It supports lithium-ion battery systems, six independent MPPT trackers, AC coupling for retrofitting existing solar systems, and parallel operation of up to 10 units for suitably designed on-grid or off-grid installations.
Key Features
- 80 kW rated AC input/output active power with up to 88 kVA apparent power.
- Supports up to 160 kW PV access power and 128 kW maximum PV input power.
- Six MPPT trackers with a 150-850 V MPPT operating range to support complex array layouts.
- Designed for lithium-ion batteries with a 160-1000 V battery-voltage range and BMS self-adaptation.
- Maximum battery charging and discharging current of 160 A across two battery inputs.
- 100% unbalanced output and up to 1.5 times rated off-grid peak power for 10 seconds.
- Supports AC coupling to retrofit an existing solar system and storage from a diesel generator.
- Up to 10 units can be connected in parallel for appropriately designed on-grid and off-grid systems.
- IP65 enclosure, intelligent air cooling, and an operating temperature range of -40°C to +60°C.
Applications
- Large three-phase solar and battery storage systems.
- Commercial, agricultural and other high-demand sites requiring three-phase energy management.
- Solar retrofit projects where AC coupling is required.
- Systems incorporating a diesel generator as an energy source for battery charging.
- Multi-inverter installations requiring parallel operation.
Why Choose This Product?
This Deye hybrid inverter combines high PV input capacity, high-voltage lithium-ion battery support and six MPPT trackers in a three-phase 80 kW platform. Its AC-coupling capability, configurable battery charging and discharging periods, and parallel-operation support make it a practical option for professionally designed large-scale energy-storage systems.
Important Notes
- Installation, protection settings and commissioning must be completed by a qualified electrician in accordance with applicable local regulations and utility requirements.
- Confirm battery compatibility, BMS communication compatibility and approved operating settings with the battery supplier and installer before purchase or installation.
- The datasheet lists 5-year and 10-year warranty arrangements, with the applicable period dependent on the final installation site. Confirm the local warranty terms before publishing or purchasing.
- Grid-regulation and standards listings in the datasheet do not by themselves confirm approval for a particular municipal or utility connection. Confirm project-specific requirements before installation.
- Supplied accessories, connectors and mounting hardware are not specified in the supplied datasheet and should be confirmed before ordering.
Technical Specifications
| Specification |
Detail |
| Brand |
Deye |
| Model |
SUN-80K-SG02HP3-EU-EM6 |
| Product Type |
Three-phase hybrid inverter |
| Rated AC Input/Output Active Power |
80,000 W |
| Maximum AC Input/Output Apparent Power |
88,000 VA |
| Rated AC Input/Output Current |
121.3 / 115.9 A |
| Maximum AC Input/Output Current |
133.4 / 127.6 A |
| Maximum Continuous AC Passthrough |
200 A |
| Off-grid Peak Power |
1.5 times rated power for 10 seconds |
| Grid Connection |
3L+N+PE |
| Rated Input/Output Voltage |
220/380 V, 230/400 V |
| Voltage Range |
0.85Un-1.1Un |
| Grid Frequency/Range |
50/45-55 Hz, 60/55-65 Hz |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion |
<3% of nominal power |
| DC Injection Current |
<0.5% In |
| Battery Type |
Lithium-ion |
| Battery Voltage Range |
160-1000 V |
| Maximum Charging Current |
80 + 80 A |
| Maximum Discharging Current |
80 + 80 A |
| Battery Inputs |
2 |
| Li-ion Charging Strategy |
Self-adaptation to BMS |
| Maximum PV Access Power |
160,000 W |
| Maximum PV Input Power |
128,000 W |
| Maximum PV Input Voltage |
1,000 V |
| PV Start-up Voltage |
180 V |
| MPPT Voltage Range |
150-850 V |
| Rated PV Input Voltage |
650 V |
| MPPT Trackers / Strings per MPPT |
6 / 2+2+2+2+2+2 |
| Maximum Operating PV Input Current |
36+36+36+36+36+36 A |
| Maximum PV Short-circuit Current |
54+54+54+54+54+54 A |
| Maximum Efficiency |
98.70% |
| Euro Efficiency |
98.10% |
| MPPT Efficiency |
>99% |
| Surge Protection |
Type II (DC), Type II (AC) |
| Communication Interfaces |
RS485, RS232, CAN |
| Monitoring Options |
GPRS, WiFi, Bluetooth, 4G, LAN (optional) |
| Ingress Protection Rating |
IP65 |
| Operating Temperature Range |
-40°C to +60°C; derating above 45°C |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude |
3,000 m |
| Noise |
≤65 dB |
| Cooling |
Intelligent air cooling |
| Inverter Topology |
Non-isolated |
| Overvoltage Category |
OVC II (DC), OVC III (AC) |
| Dimensions (W x H x D) |
606 x 927 x 314 mm, excluding connectors and brackets |
| Weight |
105 kg |
| Warranty |
5 years / 10 years; dependent on final installation site |
