Product Overview

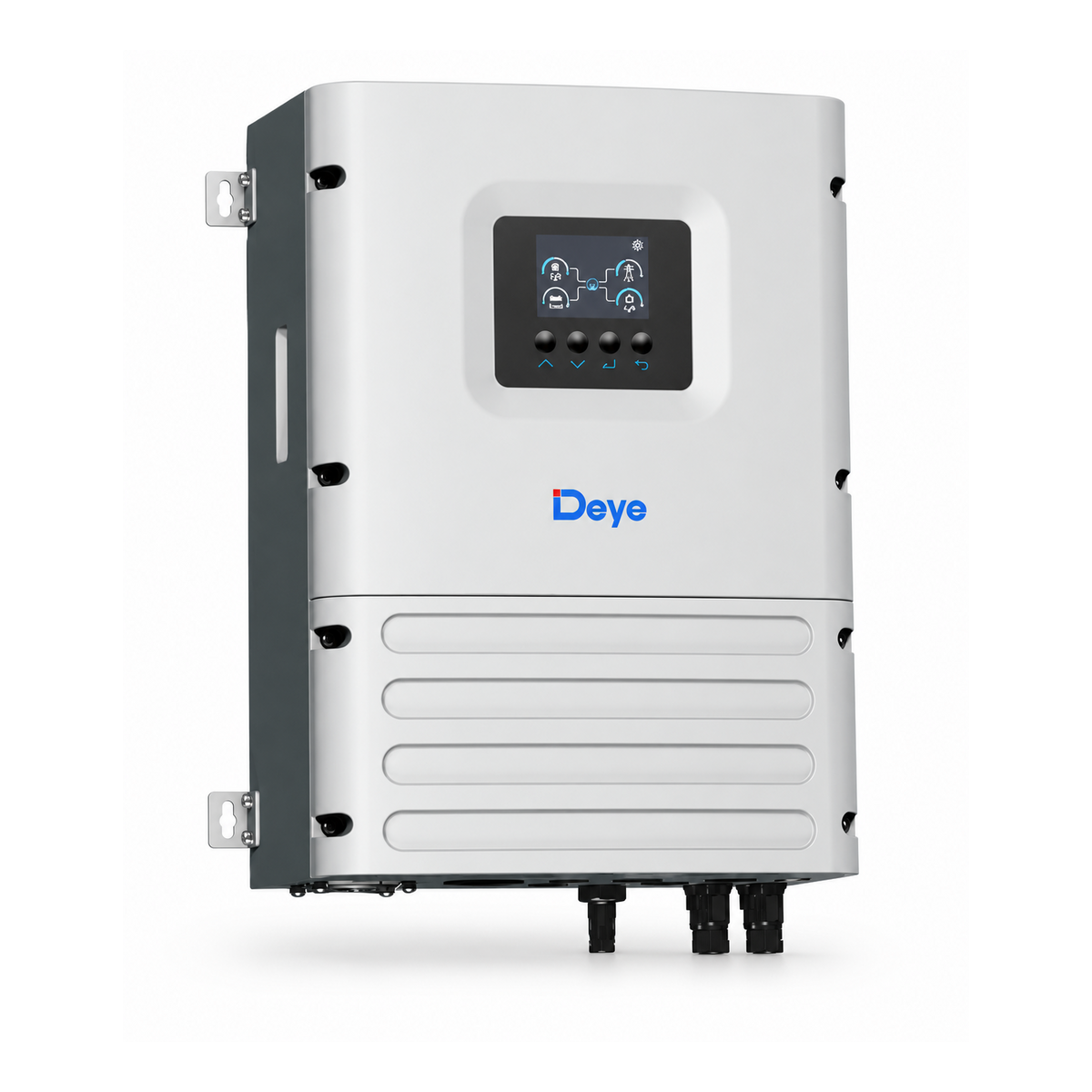

The Deye 6 kW Off-Grid Inverter forms part of the SUN-3.6/5/6K-OG01LP1-EU-AM2 range and is designed for solar-and-battery systems requiring a 6 kW AC supply. It accepts up to 9.6 kW of PV input, supports 40-60 V lead-acid or lithium-ion battery systems, and uses two MPPT trackers to support flexible solar array layouts.
Key Features
- 6 kW rated AC output with peak output of up to twice the rated power for 10 seconds, helping the system accommodate short-duration start-up loads when correctly sized.
- Up to 9.6 kW PV input capacity with two MPPT trackers and 18 A + 18 A maximum operating PV input current.
- Compatible with 40-60 V lead-acid and lithium-ion battery systems.
- Built-in Wi-Fi and a colour touch screen for viewing operating status and adjusting settings.
- 4 ms switching time for continuity of supply between operating modes.
- IP65 protection rating and an independent cooling duct design intended to reduce dust reaching the electrical system.
- Supports diesel generator applications, smart load management and parallel expansion of up to 16 units.
Applications
- Off-grid solar power systems for homes, farms and remote sites.
- Solar-and-battery systems requiring up to 6 kW rated AC output.
- Systems with generator support where the installation is correctly designed and configured.
- Expandable power systems requiring parallel inverter capability.
Why Choose This Product?
This inverter offers a practical combination of 6 kW AC output, high PV input capacity, two independent MPPT trackers and support for 48 V nominal battery systems. Its IP65 rating, built-in Wi-Fi, colour touch screen and parallel capability make it suitable for properly specified off-grid installations where monitoring, system flexibility and environmental protection are important.
Important Notes
- Installation must be completed by a qualified electrician in accordance with applicable regulations and the manufacturer’s installation instructions.
- Confirm battery compatibility, battery communication requirements, PV string design, generator settings and protection equipment before ordering or installation.
- Parallel operation requires a correctly designed system and compatible components.
Technical Specifications
| Specification |
Detail |
| Brand |
Deye |
| Model Range |
SUN-3.6/5/6K-OG01LP1-EU-AM2 |
| Version |
6 kW |
| Product Type |
Off-grid inverter |
| Rated AC Power |
6 kW |
| Peak AC Power |
2 x rated power for 10 seconds |
| Rated AC Voltage |
220/230 V, 0.85Un-1.1Un |
| Grid Connection Form |
L+N+PE |
| PV Input Power |
9.6 kW |
| PV Start-up Voltage |
125 V |
| Rated PV Input Voltage |
370 V |
| MPPT Voltage Range |
150-425 V |
| MPPT Trackers / Strings |
2 / 1+1 |
| Maximum Operating PV Input Current |
18 A + 18 A |
| Maximum PV Input Short-Circuit Current |
27 A + 27 A |
| Battery Type |
Lead-acid or lithium-ion |
| Battery Voltage Range |
40-60 V |
| Charge / Discharge Efficiency |
94.7% supplier-stated |
| Switching Time |
4 ms |
| Parallel Operation |
Up to 16 units |
| Generator Support |
Diesel generator applications supported |
| Wi-Fi |
Built-in |
| Display |
Colour touch screen |
| IP Rating |
IP65 |
| Operating Temperature |
-40 to 60°C; derating above 45°C |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude |
Below 3,000 m |
| Noise |
Below 45 dB |
| Weight |
13.25 kg |
| Dimensions |
306 x 427.5 x 175.77 mm |
