Product Overview

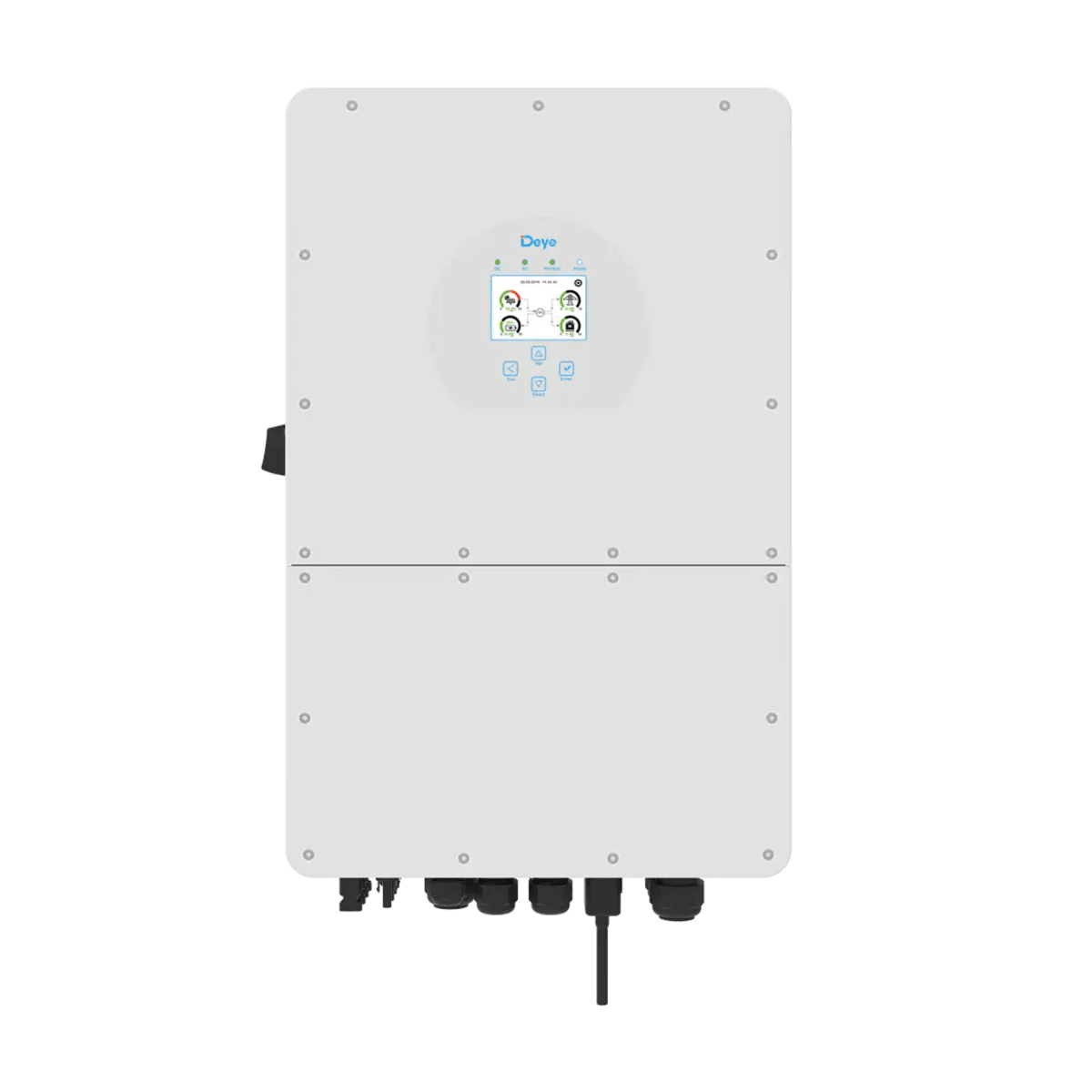

The Deye 20kW 48V Three Phase Hybrid Inverter is a low-voltage hybrid inverter designed for larger residential, commercial and backup power installations requiring three-phase operation. It combines solar PV, battery storage, grid and generator integration in one platform, with a rated AC input/output active power of 20kW.
Key Features
- 20kW rated three-phase AC input/output active power for higher-demand hybrid solar power systems.
- Supports 40-60V lead-acid or lithium-ion battery systems, with a maximum charging and discharging current of 350A.
- Two MPPT trackers with support for up to 40,000W PV access power and 32,000W maximum PV input power.
- Supports 100% unbalanced output, with maximum output up to 50% of rated power per phase.
- Can be AC coupled to retrofit an existing solar power system.
- Supports up to 10 units in parallel for on-grid and off-grid operation, subject to system design requirements.
- Includes six programmable time periods for battery charging and discharging.
- Supports energy storage from a diesel generator.
Applications
- Three-phase residential properties with higher electrical demand.
- Commercial and light industrial hybrid solar power systems.
- Backup power installations combining solar PV, battery storage, grid and generator sources.
- Retrofit applications where AC coupling to an existing solar installation is required.
Why Choose This Product?
The Deye 20kW three-phase hybrid inverter offers a flexible low-voltage architecture for larger systems where three-phase power, battery storage and multiple energy sources need to be managed together. Its high battery charge and discharge current, dual MPPT design and support for parallel operation make it suitable for professionally designed hybrid and backup installations.
Important Notes
- Battery compatibility, BMS communication and system sizing must be confirmed against the selected battery manufacturer’s documentation before installation.
- Installation and commissioning must be carried out by a suitably qualified installer or electrician in accordance with applicable South African electrical regulations and system requirements.
- Optional monitoring methods and protection features may depend on the supplied configuration; confirm included accessories and communication hardware before publishing or ordering.
Technical Specifications
| Specification |
Detail |
| Brand |
Deye |
| Model |
SUN-20K-SG05LP3-EU-SM2 |
| Product Type |
Three Phase Hybrid Inverter |
| Rated AC Input/Output Active Power |
20,000W |
| Max. AC Input/Output Apparent Power |
22,000VA |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40-60V |
| Max. Charging Current |
350A |
| Max. Discharging Current |
350A |
| Battery Inputs |
2 |
| Max. PV Access Power |
40,000W |
| Max. PV Input Power |
32,000W |
| Max. PV Input Voltage |
800V |
| Start-up Voltage |
160V |
| MPPT Voltage Range |
160-650V |
| Rated PV Input Voltage |
550V |
| MPPT Trackers / Strings per MPPT |
2 / 2+2 |
| Max. Continuous AC Pass-through |
70A |
| Grid Connection |
3L+N+PE |
| Max. Efficiency |
97.6% |
| Euro Efficiency |
97.0% |
| MPPT Efficiency |
>99% |
| Communication |
RS485 / RS232 / CAN |
| Surge Protection |
Type II (DC), Type II (AC) |
