Product Overview

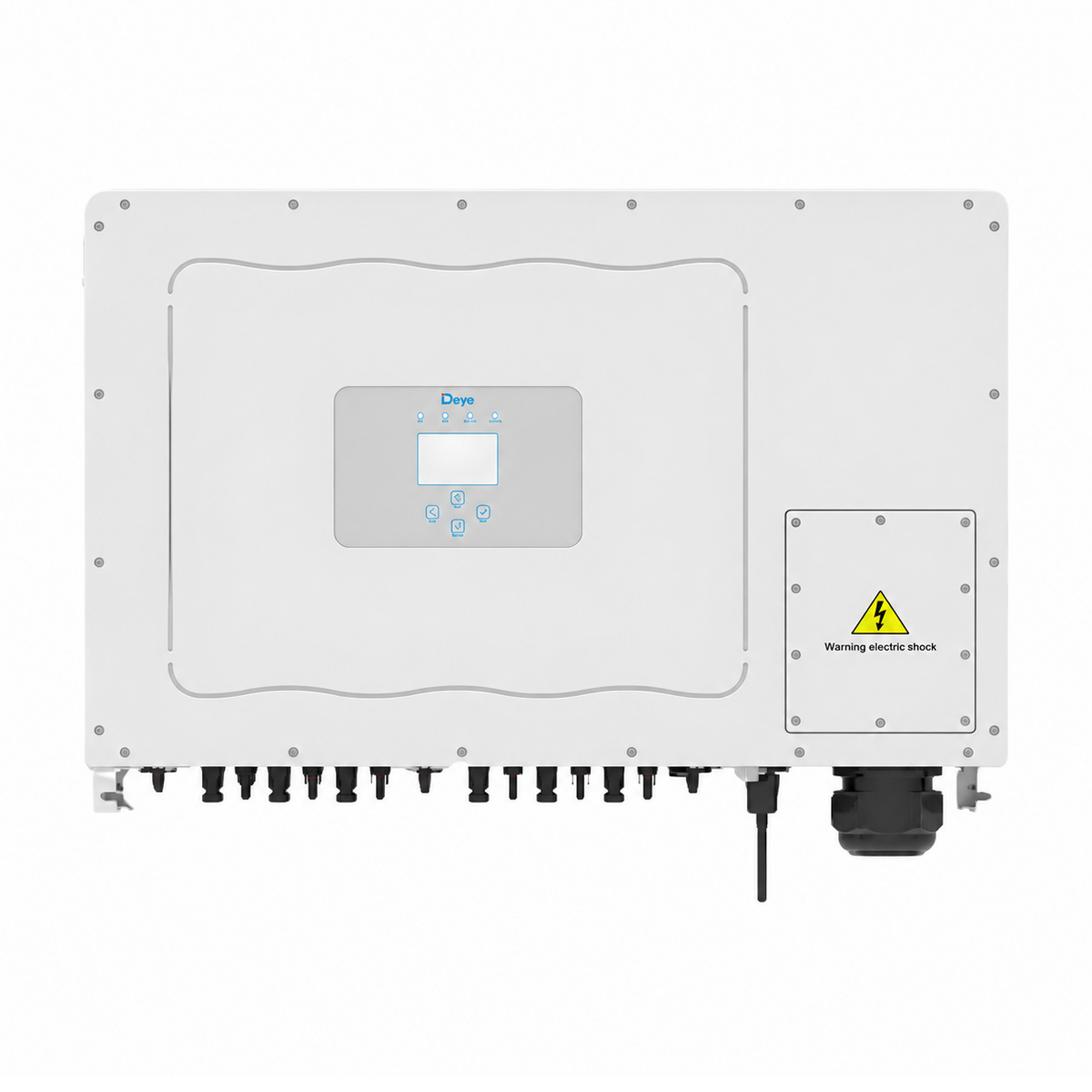

The Deye SUN-136K-G01P3-EU-AM8 is a 136 kW three-phase string inverter designed for commercial and industrial grid-tied solar PV installations. Its eight MPPT trackers, 204 kW maximum PV input capacity and wide 200-1,000 V MPPT voltage range support flexible multi-string array design for larger solar projects.
Key Features
- 136 kW rated AC active power output with 136 kVA maximum apparent power.
- Eight MPPT trackers with four PV string inputs per tracker for flexible array configuration.
- Maximum PV input power of 204 kW, with a maximum DC input voltage of 1,100 V.
- Maximum efficiency of 98.8%, Euro efficiency of 98.2% and MPPT efficiency above 99%.
- Built-in Type II DC and AC surge protection, DC reverse-polarity protection, AC overcurrent protection and AC short-circuit protection.
- Supports zero-export and VSG applications.
- RS485 and RS232 communication interfaces, with optional GPRS, WiFi, Bluetooth, 4G and LAN monitoring methods.
Applications
- Commercial rooftop solar PV installations.
- Industrial and business premises with high daytime electricity demand.
- Large multi-string grid-tied solar PV systems requiring multiple MPPT channels.
- Projects requiring zero-export or VSG functionality, subject to correct system design and configuration.
Why Choose This Product?
The SUN-136K-G01P3-EU-AM8 combines high three-phase output capacity, eight MPPT channels and a broad operating voltage range in an IP65-rated enclosure. Its integrated protection functions, communication interfaces and intelligent air cooling make it a practical option for professionally designed commercial-scale solar PV systems.
Important Notes
- This is a three-phase inverter with a 3L/N/PE grid connection form. Installation, commissioning and protection settings should be completed by a qualified solar PV and electrical professional.
- Confirm PV string voltages, current limits, grid voltage and frequency requirements before installation.
- String intelligent monitoring and the anti-PID function are listed as optional features; confirm the required configuration and supplied accessories before ordering.
- The datasheet lists a 5-year warranty. Confirm the applicable warranty terms and conditions with the supplier before purchase.
Technical Specifications
| Specification |
Detail |
| Brand |
Deye |
| Model |
SUN-136K-G01P3-EU-AM8 |
| Product Type |
Three-phase string inverter |
| Rated AC Output Active Power |
136 kW |
| Maximum AC Output Apparent Power |
136 kVA |
| Maximum PV Input Power |
204 kW |
| Maximum PV Input Voltage |
1,100 V |
| Start-up Voltage |
250 V |
| MPPT Voltage Range |
200-1,000 V |
| Rated PV Input Voltage |
600 V |
| Maximum Operating PV Input Current |
8 x 40 A |
| Maximum Input Short-Circuit Current |
8 x 60 A |
| MPP Trackers |
8 |
| Strings per MPP Tracker |
4 |
| Rated / Maximum AC Output Current |
206.1 / 197.2 A |
| Rated Output Voltage / Range |
220/380 V, 230/400 V; 0.85Un-1.1Un |
| Grid Connection Form |
3L/N/PE |
| Rated Output Grid Frequency / Range |
50 Hz / 45-55 Hz; 60 Hz / 55-65 Hz |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion |
<3% |
| DC Injection Current |
<0.5%In |
| Maximum Efficiency |
98.8% |
| Euro Efficiency |
98.2% |
| MPPT Efficiency |
>99% |
| Surge Protection Level |
Type II (DC), Type II (AC) |
| Communication |
RS485 / RS232 |
| Optional Monitoring Interfaces |
GPRS / WiFi / Bluetooth / 4G / LAN |
| Operating Temperature Range |
-25°C to +60°C; derating above +45°C |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude |
4,000 m |
| Noise |
≤65 dB |
| IP Rating |
IP65 |
| Inverter Topology |
Non-isolated |
| Overvoltage Category |
OVC II (DC), OVC III (AC) |
| Dimensions (W x H x D) |
1,006 x 516 x 325.5 mm, excluding connectors and brackets |
| Weight |
103 kg |
| Cooling Method |
Intelligent air cooling |
| Warranty |
5 years |
| Grid Regulations Listed |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety / EMC Standards Listed |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
