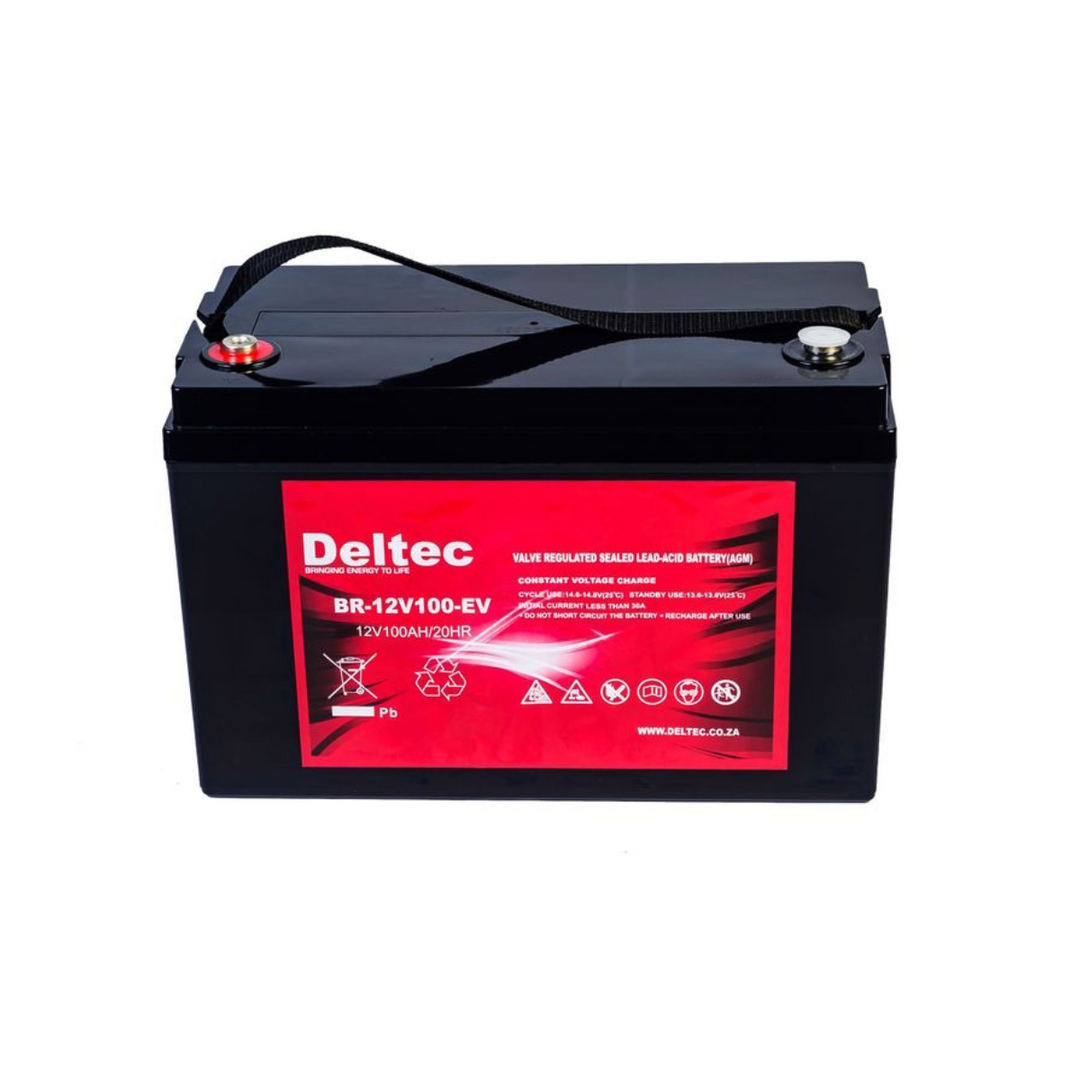

Deltec BR-12V100-EV 100Ah 12V AGM Battery

Deltec BR-12V100-EV 100Ah 12V AGM Battery

Deltec BR-12V100-EV 100Ah 12V AGM Battery

Regular price R 5,652.00 incl. VAT Sale price R 4,187.00 incl. VATSave R 1,465
R 3,64087 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Product Description:

Electric Vehicle series is deigned for frequent discharge deep cycle application - by using specially designed active material, strong grids, thick plate construction
this battery offers reliable performance in high load situations. Suitable for electric vehicle, golf carts, industrial equipment, floor machines, forklifts, aerial lifts, robotics,
marine, RV's, no-idle Solutions, mobility equipment, medical equipment and most outdoor applications

Specifications:

  • Cells Per Unit: 6
  • Voltage Per Unit: 12
  • Capacity: 100Ah@20hr-rate to 1.75V per cell @25℃
  • Weight: Approx. 31.5 Kg (Tolerance±2%)
  • Internal Resistance: Approx. 5.0 mΩ
  • Terminal: F12(M8)
  • Max. Discharge Current: 1000A (5 sec)
  • Cold Cranking Ampere(CCA): 630A
  • Maximum Charging Current: 30.0 A
  • Reference Capacity: C3 78.3AH, C5 85.0AH, C10 95.0 AH, C20 100.AH
  • Float Charging Voltage: 13.6 V~13.8 V @ 25℃, Temperature Compensation: -3mV/℃/Cell
  • Cycle Use Voltage: 14.6 V~14.8 V @ 25℃, Temperature Compensation: -4mV/℃/Cell
  • Operating Temperature Range: Discharge: -20℃~60℃, Charge: 0℃~50℃, Storage: -20℃~60℃
  • Normal Operating Temperature Range: 25℃±5℃
  • Self Discharge: Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25°C and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25°C. Please charge batteries before using.
  • Container Material: A.B.S. UL94-HB, UL94-V0 Optional.

Dimensions

  • Length: 328±2mm (12.9 inches
  • Width: 172±2mm (6.77 inches)
  • Height: 215±2mm (8.46 inches
  • Total Height: 220±2mm (8.66 inches
  • Terminal: Value M5: 6~7 N*m, M6:8~10 N*m, M8: 10~12 N*m

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
