Product Overview

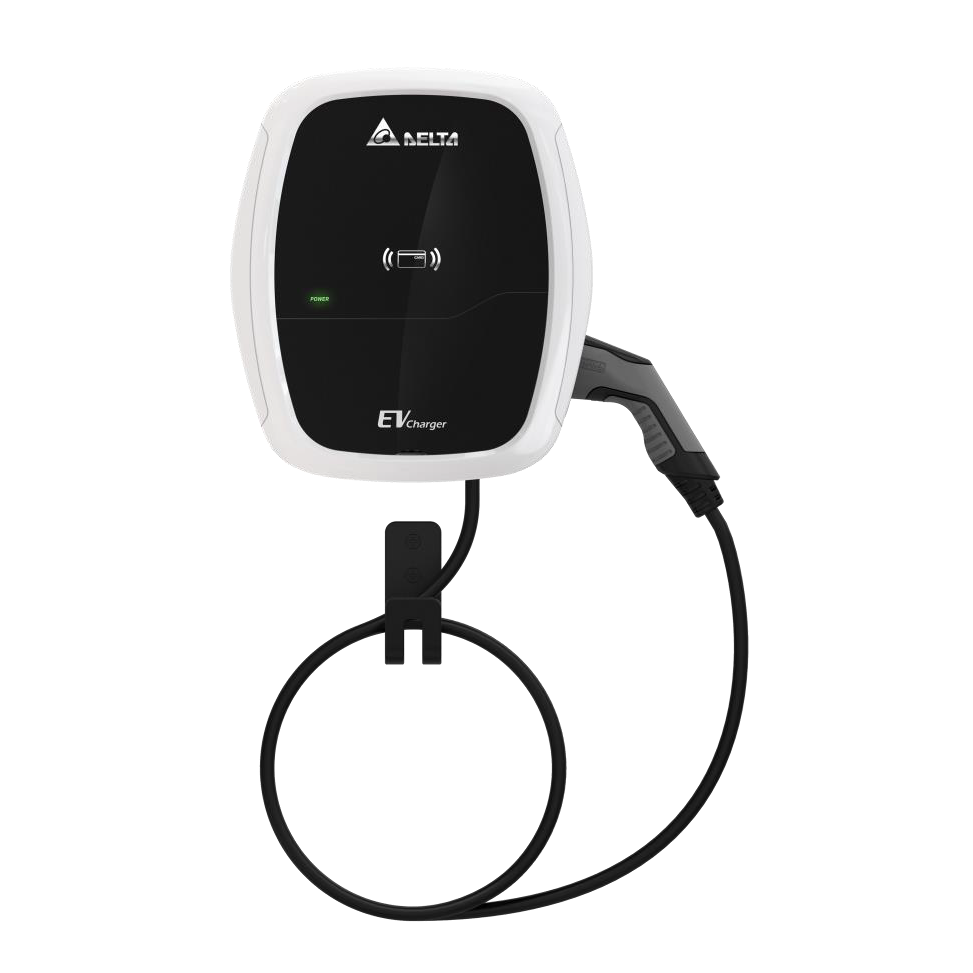

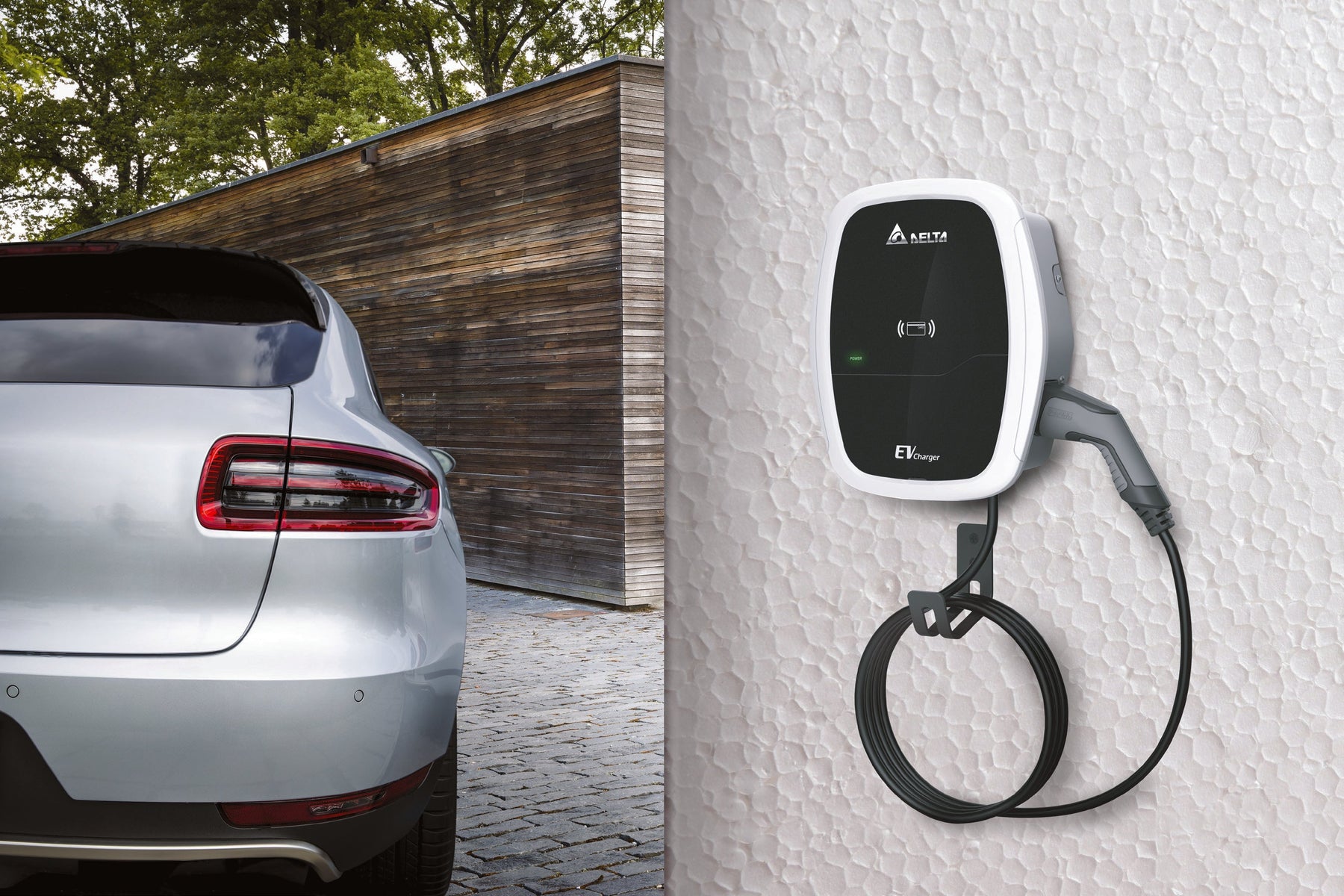

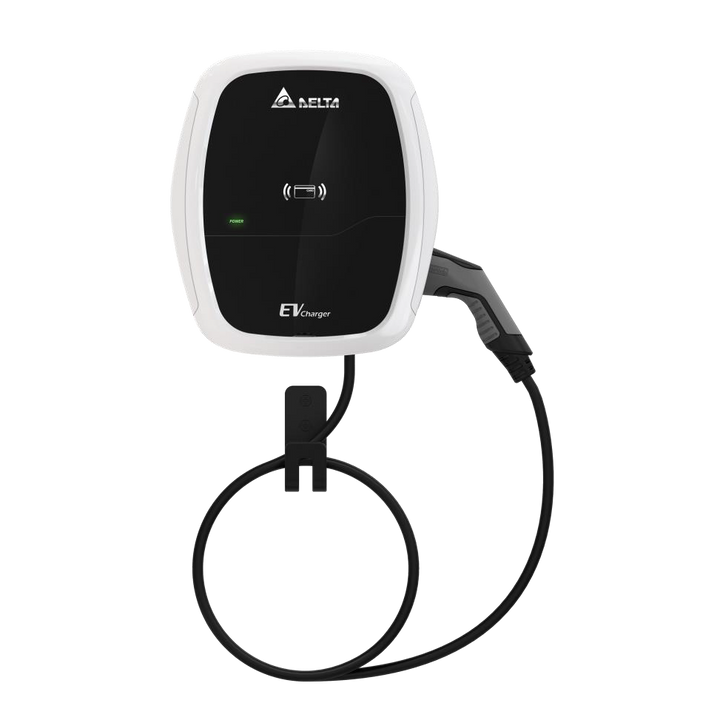

The Delta AC Mini Plus is a compact single-phase EV wall charger designed for reliable residential, workplace and light commercial charging. This 7.2kW class model supports up to 32A charging through a Type 2 socket and includes RFID access control, OCPP communications and a robust IP55 enclosure.
Key Features
- Up to 7.4kW AC charging output at 230V single phase and 32A.
- IEC 62196-2 Type 2 socket for use with a compatible separate charging cable.
- RFID authentication for controlled charger access.
- OCPP support enables integration with compatible remote monitoring and charger-management platforms.
- Ethernet connectivity is standard, with WLAN and 3G available as optional backend communications.
- Integrated 30mA AC residual-current protection and 6mA DC residual-current detection.
- IP55 and IK08 enclosure ratings suit demanding indoor and outdoor installations.
- Automatic recovery after minor electrical faults helps restore charging without manual intervention.
Applications
- Residential EV charging.
- Workplace and office parking areas.
- Fleet and light commercial charging installations.
Why Choose This Product?
The AC Mini Plus combines a straightforward Type 2 charging interface with access control, OCPP communications and comprehensive electrical protection. Its compact wall-mounted format makes it suitable where reliable 7kW-class single-phase EV charging and network integration are required.
Important Notes
- This model is supplied without an EV charging cable. A compatible Type 2 charging cable must be sourced separately.
- Installation and upstream electrical protection must comply with local regulations and should be completed by a suitably qualified electrician.
- WLAN and 3G are optional communications features; Ethernet is standard.
Technical Specifications
| Specification |
Detail |
| Brand |
Delta |
| Model / Supplier Code |
EVPE3220MUN |
| Product Type |
AC EV Charger |
| Input |
230Vac, single phase, 16A or 32A maximum, 50/60Hz |
| Maximum Output |
Up to 7.4kW, 32A |
| Charging Interface |
IEC 62196-2 Type 2 socket |
| Authentication |
RFID |
| Communications |
Ethernet standard; WLAN and 3G optional |
| Charging Protocol |
OCPP |
| Residual Current Protection |
30mA AC RCD and 6mA DC RCD function |
| Electrical Protection |
Overcurrent, undervoltage, overvoltage, residual current, surge, short circuit, overtemperature, ground fault and plug-out protection |
| Ingress Protection |
IP55 |
| Impact Rating |
IK08 |
| Operating Temperature |
-30°C to +50°C |
| Storage Temperature |
-40°C to +80°C |
| Maximum Operating Altitude |
2,000m |
| Standby Power |
5W |
