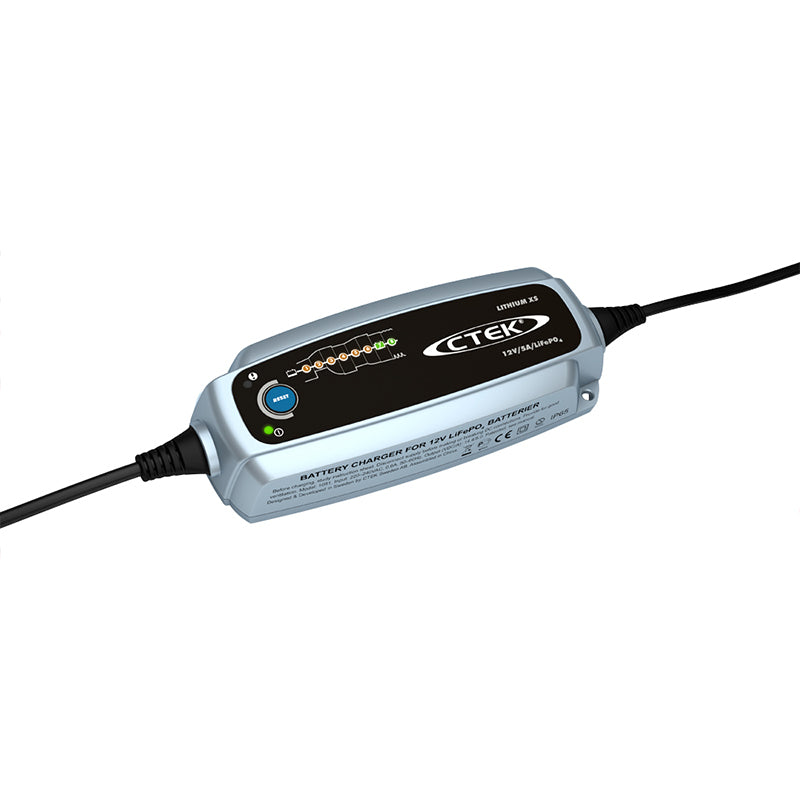

The LITHIUM XS is an advanced microprocessor-controlled charger and maintainer specially designed for Lithium (12V LiFePO4) batteries.
- Reverse polarity protection.
- Splash proof and dust proof (IP65).
- Rated Voltage AC: 220–240VAC, 50–60Hz.
- Charging voltage: 13.8/14.4 VDC.
- Charging current: 5A max.
- Current, mains: 0.65Arms (at full charging current).
- Back current drain: <1Ah/month.
- Ripple: <4%.
- Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperatures.
- Charger type: 8 step, fully automatic charging cycle.
- Battery types: 12V LiFePO4 batteries.
- Battery capacity: 5–60Ah up to 120Ah for maintenance.
- Dimensions: 168 x 65 x 40mm (L x W x H).
- Insulation class: IP65.
- Weight: 0.6kg.
- Warranty: 5 years.
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
