Benifits

• Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
• Highest Efficiency Thanks to a Real High-Voltage Series Connection.
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
• Two Distinct Modules to Cover the Complete Range of System Sizes.
• Highest Safety Standards like VDE 2510-50.

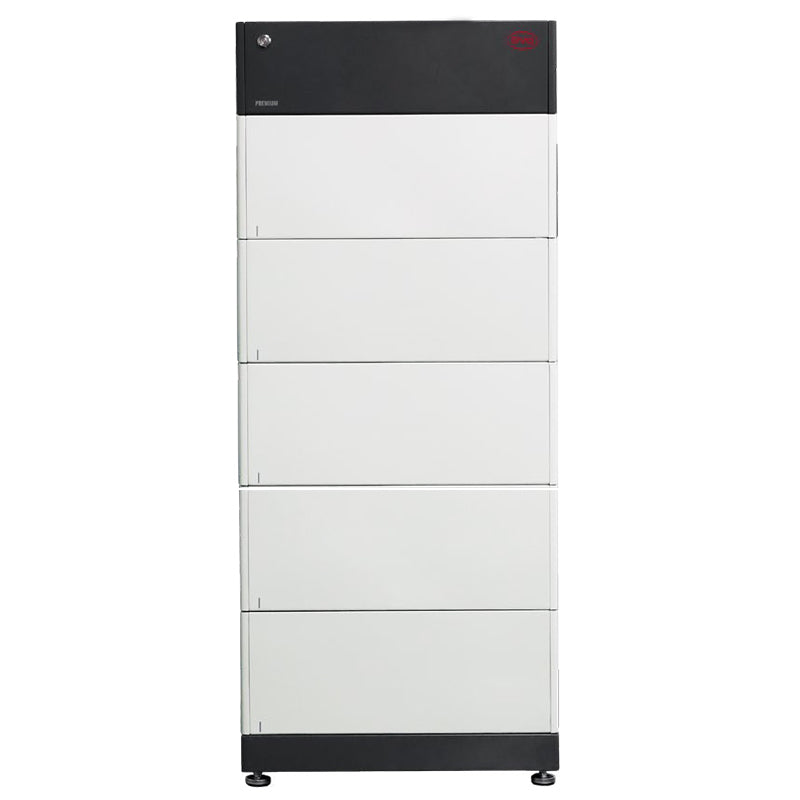

Technical Parameters HVS 12.8

• Battery Module HVS: (2.56 kWh, 102.4 V, 38 kg).
• Number of Modules: 5.
• Usable Energy: 12.8 kWh.
• Max Output Current: 25 A.
• Peak Output Current: 50 A.
• Nominal Voltage: 512 V.
• Operating Voltage: 400~476 V.
• Dimensions (H/W/D) 1411mm x 585mm x 298mm.
• Weight: 207 kg.

General Information

• Operating Temperature: -10 °C to +50°C.
• Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
• Communication: CAN/RS485.
• Enclosure Protection Rating: IP55.
• Round-trip Efficiency: ≥96%.
• Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3.
• Applications: ON Grid / ON Grid + Backup / OFF Grid.
• Warranty: 10 Years.
• Compatible Inverters: Refer to BYD Battery-Box Premium HVS / HVM Compatible Inverter List.
