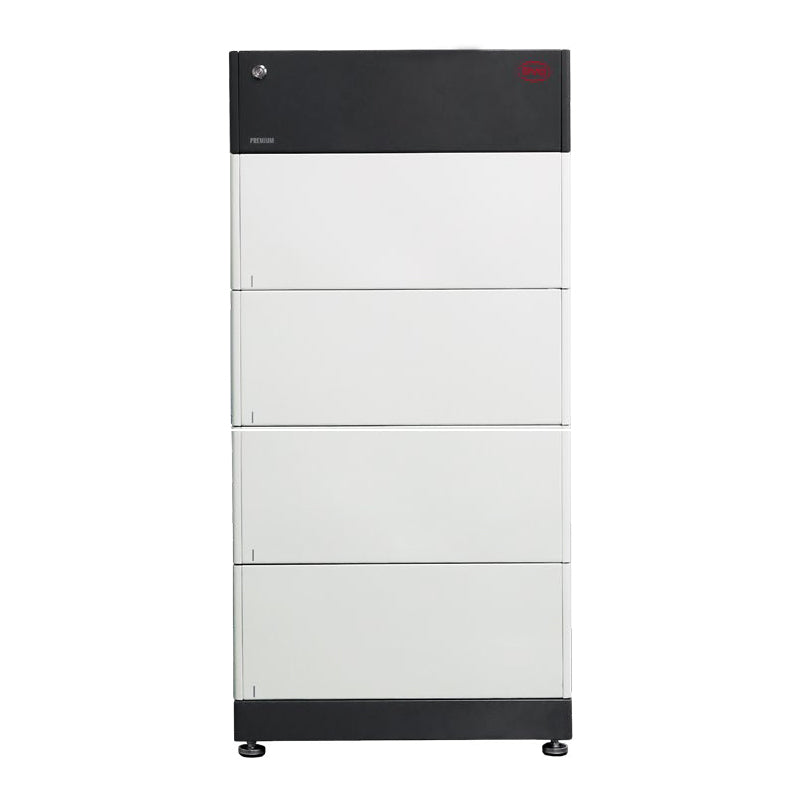

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery with BCU

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery with BCU -

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery with BCU

Regular price R 125,217.00 incl. VAT
R 108,88435 excl. VAT
incl. VAT /

Tax included. Shipping calculated at checkout.
  • Secure online payments


  • Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
  • Highest Efficiency Thanks to a Real High-Voltage Series Connection.
  • The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
  • Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
  • Two Distinct Modules to Cover the Complete Range of System Sizes.
  • Highest Safety Standards like VDE 2510-50.

Technical Parameters HVS 10.2

  • Battery Module HVS: (2.56 kWh, 102.4 V, 38 kg).
  • Number of Modules: 4.
  • Usable Energy: 10.24 kWh.
  • Max Output Current: 25 A.
  • Peak Output Current: 50 A.
  • Nominal Voltage: 409 V.
  • Operating Voltage: 320~460 V.
  • Dimensions (H/W/D) 1178mm x 585mm x 298mm.
  • Weight: 167 kg.

General Information

  • Operating Temperature: -10 °C to +50°C.
  • Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
  • Communication: CAN/RS485.
  • Enclosure Protection Rating: IP55.
  • Round-trip Efficiency: ≥96%.
  • Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3.
  • Applications: ON Grid / ON Grid + Backup / OFF Grid.
  • Warranty: 10 Years.
  • Compatible Inverters: Refer to BYD Battery-Box Premium HVS / HVM Compatible Inverter List.


All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
