Product Overview

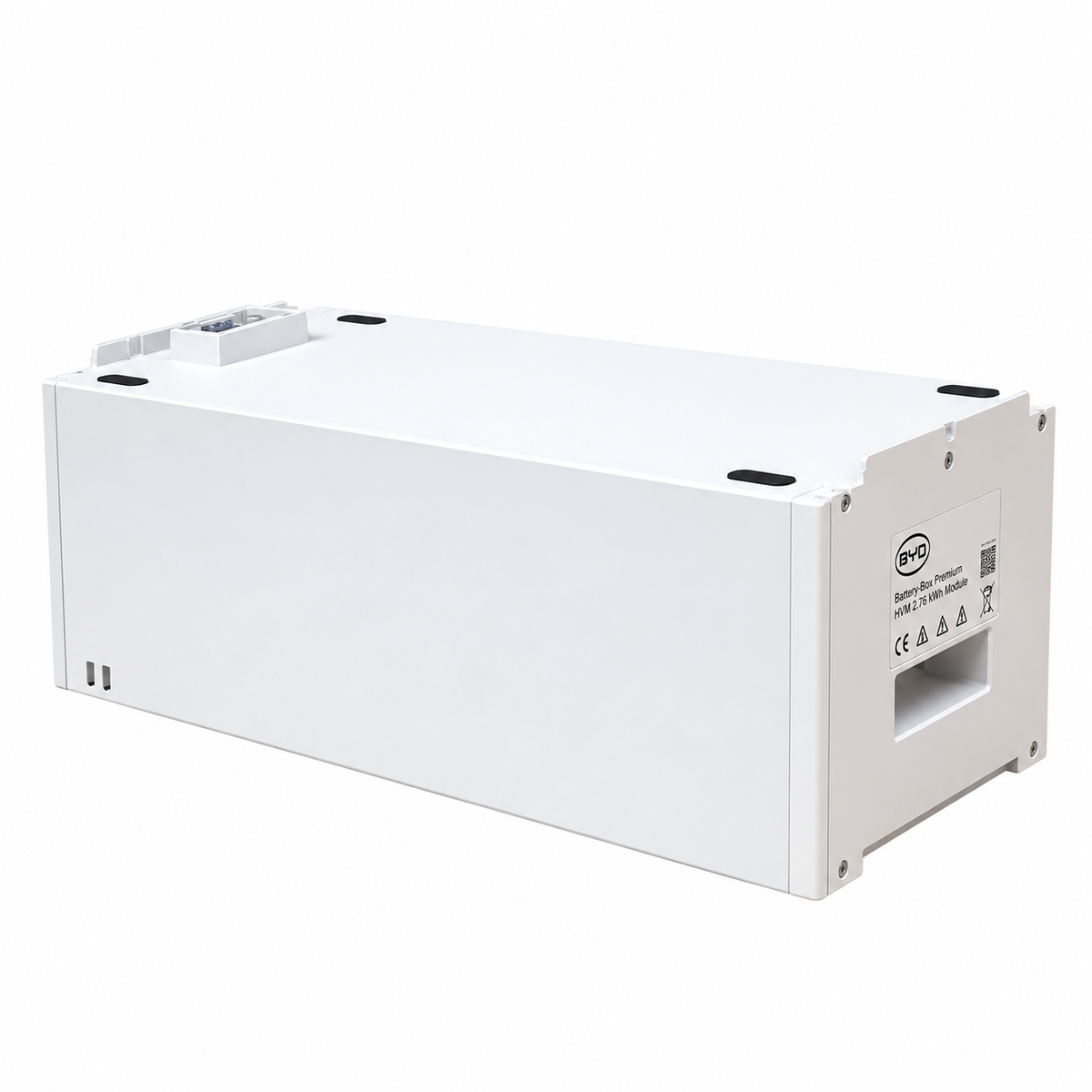

The BYD Battery-Box Premium HVM 2.76kWh Battery Module is the modular building block used to expand or configure a BYD Battery-Box Premium HVM high-voltage battery system. Each HVM module provides 2.76kWh of battery capacity at 51.2V and uses cobalt-free Lithium Iron Phosphate (LFP) cell technology for high safety, long service life and strong power performance.
A complete BYD Battery-Box Premium HVM system requires multiple HVM battery modules connected in series together with the appropriate BYD Battery Control Unit (BCU) and base. A single HVM module is not designed to operate as a standalone battery.
Key Features
-
2.76kWh modular capacity: Each HVM module contributes 2.76kWh to the overall battery system.
-
51.2V nominal module voltage: Designed specifically for the high-voltage BYD Battery-Box Premium HVM platform.
-
Flexible system sizing: HVM systems are assembled using 3 to 8 HVM modules per battery tower, providing usable system capacities from 8.28kWh to 22.08kWh.
-
Expandable architecture: HVM battery systems can be expanded by adding modules, subject to BYD installation and compatibility requirements.
-
LFP battery chemistry: Cobalt-free Lithium Iron Phosphate technology provides excellent thermal stability, safety and cycle life.
-
High-voltage series connection: Designed for efficient high-voltage operation with compatible single- and three-phase battery inverters.
-
Plug-in modular design: BYD's patented internal connection system reduces internal wiring requirements and simplifies installation.
-
Backup and off-grid capable: Suitable for compatible on-grid, backup and off-grid energy storage systems.
HVM System Configurations
| HVM Configuration |
Modules |
Usable Energy |
Nominal Voltage |
| HVM 8.3 |
3 |
8.28kWh |
153V |
| HVM 11.0 |
4 |
11.04kWh |
204V |
| HVM 13.8 |
5 |
13.80kWh |
256V |
| HVM 16.6 |
6 |
16.56kWh |
307V |
| HVM 19.3 |
7 |
19.32kWh |
358V |
| HVM 22.1 |
8 |
22.08kWh |
409V |
Technical Specifications
| Brand |
BYD |
| Product |
Battery-Box Premium HVM Battery Module |
| Module Capacity |
2.76kWh |
| Module Nominal Voltage |
51.2V |
| Module Weight |
38kg |
| Battery Cell Technology |
Lithium Iron Phosphate (LFP), cobalt-free |
| HVM Modules per Tower |
3 to 8 modules |
| HVM System Usable Capacity |
8.28kWh to 22.08kWh per tower |
| Maximum HVM System Output Current |
50A |
| Peak HVM System Output Current |
75A for 5 seconds |
| Operating Temperature |
-10°C to +50°C |
| Communication |
CAN / RS485 |
| Enclosure Protection Rating |
IP55 |
| Round-trip Efficiency |
≥96% |
| Certifications |
VDE 2510-50 / IEC 62619 / CEC / CE / UN38.3 |
| Applications |
On-grid / On-grid + Backup / Off-grid |
| Warranty |
10 years, subject to BYD warranty conditions |
Important Compatibility Information
- This listing is for one BYD Battery-Box Premium HVM 2.76kWh battery module.
- The module cannot be used as a standalone 51.2V battery.
- A complete HVM battery tower requires a minimum of 3 HVM modules together with the compatible BYD Battery Control Unit (BCU) and base.
- HVM modules are intended for use only within the BYD Battery-Box Premium HVM platform and should not be mixed with HVS modules.
- Always confirm inverter compatibility against the current BYD Battery-Box Premium compatible inverter list before installation.
- System usable energy and operating performance may vary depending on the inverter, operating conditions and installation configuration.
