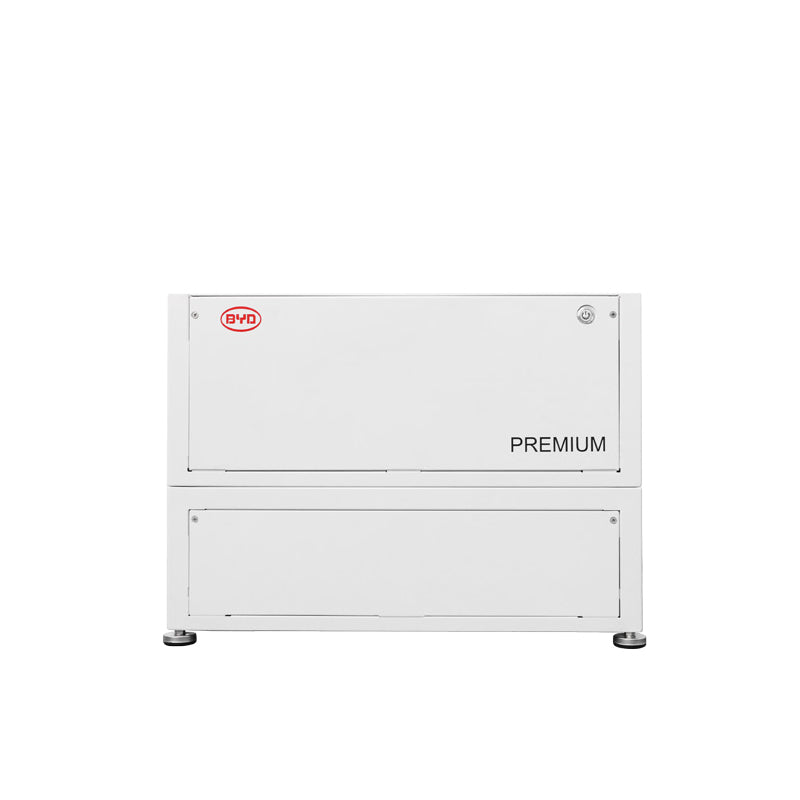

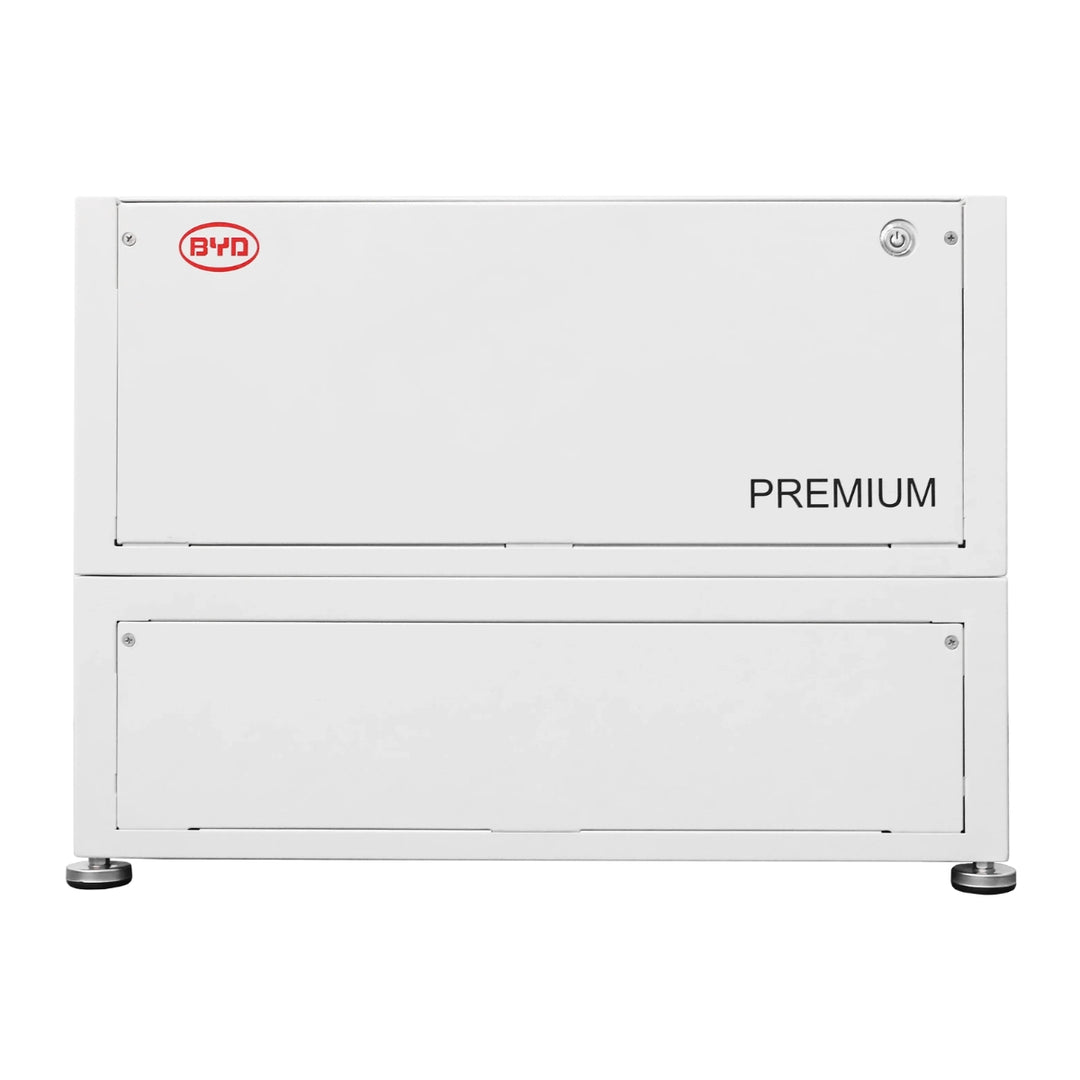

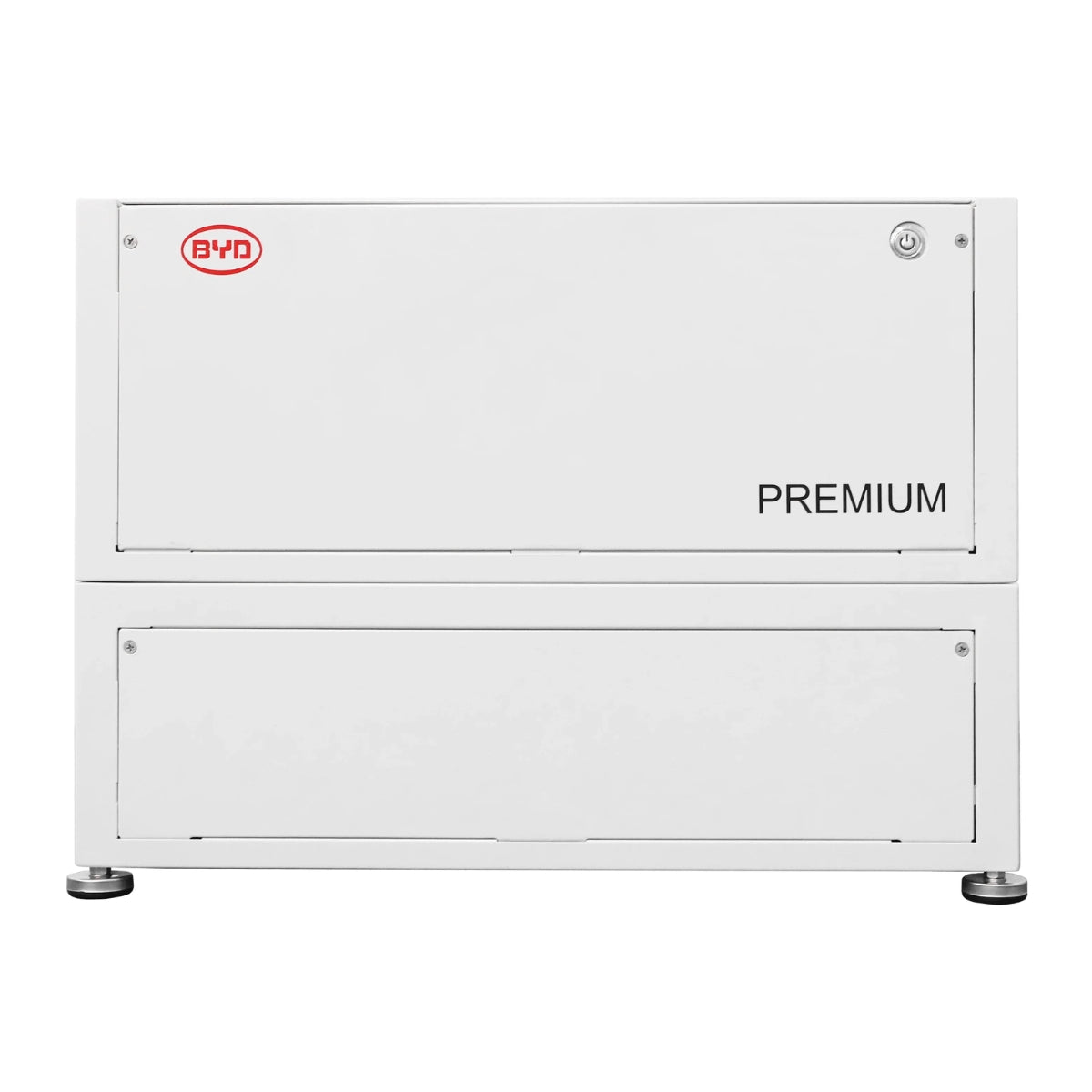

BYD 15.4 kWh 48V Premium LVL Lithium Battery Box
Features
- Scalable from 15.4 to 983 kWh.
- Compatible with 1 and 3 Phase Inverters.
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life.
- Cycle, and Power.
- Capable of High-Powered Back-up and Off-Grid Function.
- Space Saving via the Ability to Stack 2 Premium Batteries.
- Add Additional Batteries in Parallel to Expand the System.
Specifications - LVL15.4
- Number of Modules: 2.
- Usable Energy: 15.36 kWh.
- Max Cont. Output Current: 250 A.
- Peak Output Current: 375 A, 5 s.
- Dimensions (H/W/D): 500 x 575 x 650 mm.
- Weight: 164 kg.
- Nominal Voltage: 51.2 V.
- Operating Voltage: 40-59 V.
- Operating Temperature: -10 °C to +50°C.
- Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
- Communication: CAN/RS485.
- Enclosure Protection Rating: IP20.
- Round-trip Efficiency: ≥95%.
- Scalability: Max. 64 in Parallel (983 kWh).
- Certification: IEC62619 / CE / CEC / UN38.3.
- Applications: ON Grid / ON Grid + Backup / OFF Grid.
- Warranty: 10 Years.
- Compatible Inverters: Refer to BYD Battery-Box Premium Inverter Compatible List and Minimum Configuration List.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
