Features
- Use Solar or AC Power
- NO Batteries required
- Auto Switch from AC to DC & back
- Digital Display
Technical Specifications
| Model | AD-3SPW1-17P |
|---|---|
| DC Voltage Range | 60 - 450 V |
| AC Voltage Range | 150 - 240 V |
| Pump Wattage | 1500 Watts |
| Min. Power Requirement | 2250 Watts |
| Max Flow Rate (m³/h) | 4.1 m³/h |
| Max Flow Rate (L p/h) | 4100 L/h |
| Max Head | 144 m |
| Warranty | 12 Months |

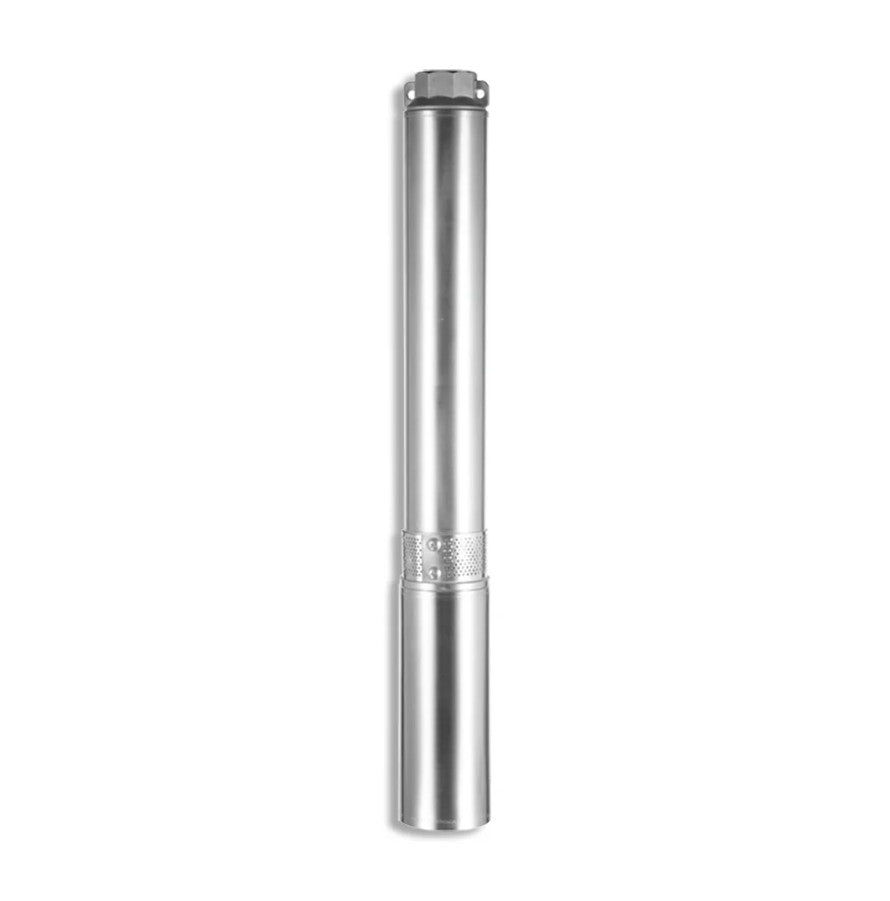

General Data
| Outlet | 1.5 Inch |
|---|---|
| Pump Diameter | 76mm (3") |

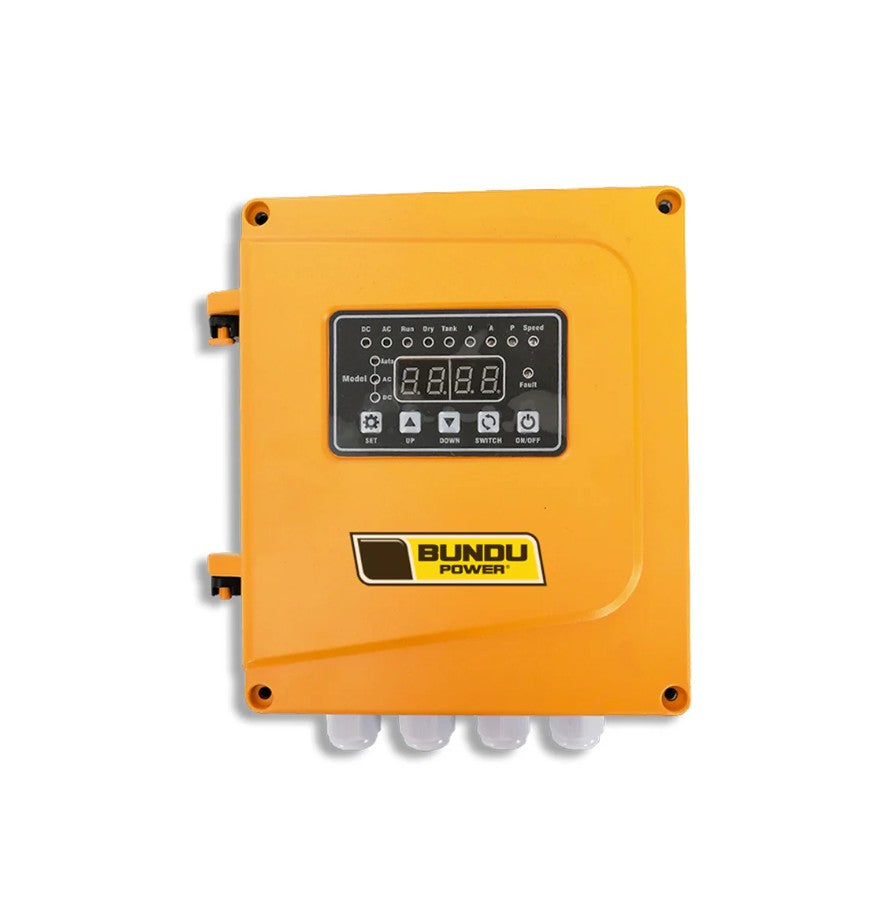

| Type of Controller | Hybrid (AC & DC Input) |
| Submersible Depth (Pump) | 150 m |
| Controller Input Voltage (DC) | 60 - 450 |
| Controller Input Voltage (AC) | 150 - 240 |
| Controller Type | External |
| Controller | Auto Restart on AC or DC on loss |
| Pump Body | Stainless Steel (304) |
| Pump Motor | Water Filled |
| Pump Impeller | Plastic |
| Impeller Type | Centrifugal |
| Certification | CE, TUV SUD, UL, ISO9001, ISO14001 |

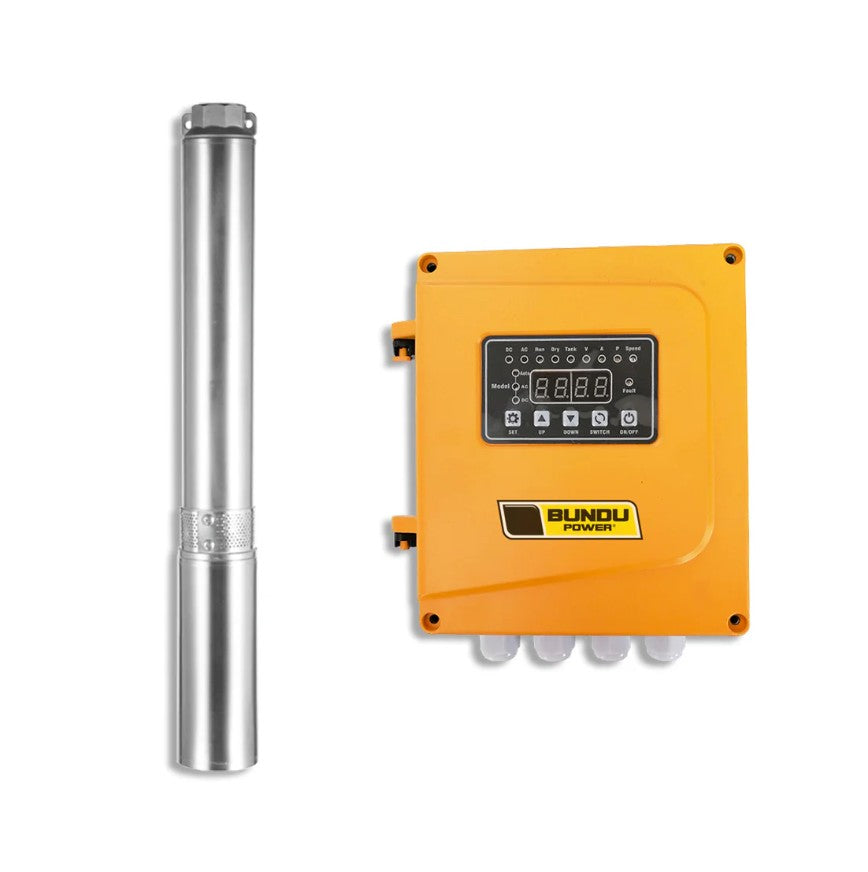

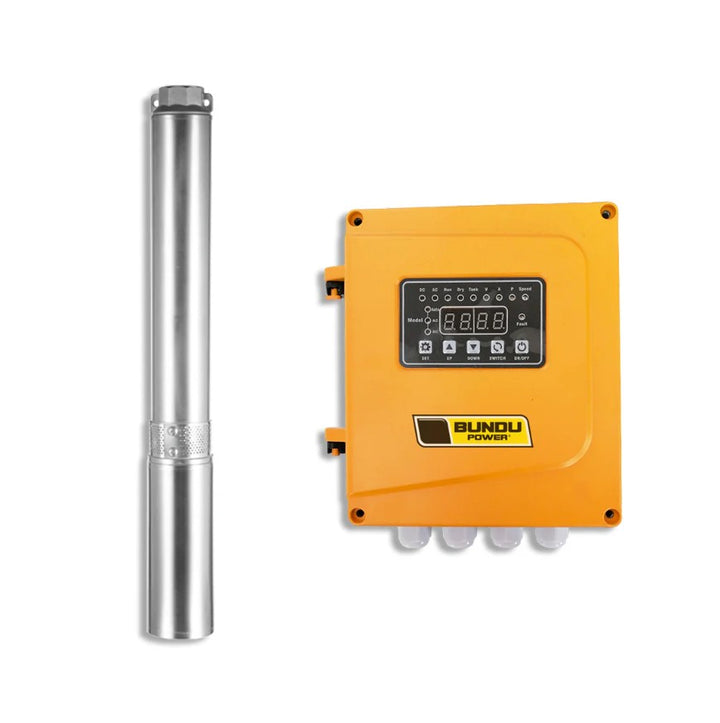

| What's Included | Hybrid Pump, Hybrid Controller, User Manual |
Packed Dimensions
| Pump Length | 940 mm |
|---|---|
| Pump Width | 90 mm |
| Pump Height | 90 mm |
| Pump Weight | 8.5 kg |
| Controller Length | 240 mm |
| Controller Width | 230 mm |
| Controller Height | 150 mm |
| Controller Weight | 2.5 kg |
Solar Panel Requirements
| Solar Panels | 4 x 550W (or Similar) |
|---|
Key Points
- Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels
- Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.
- Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
