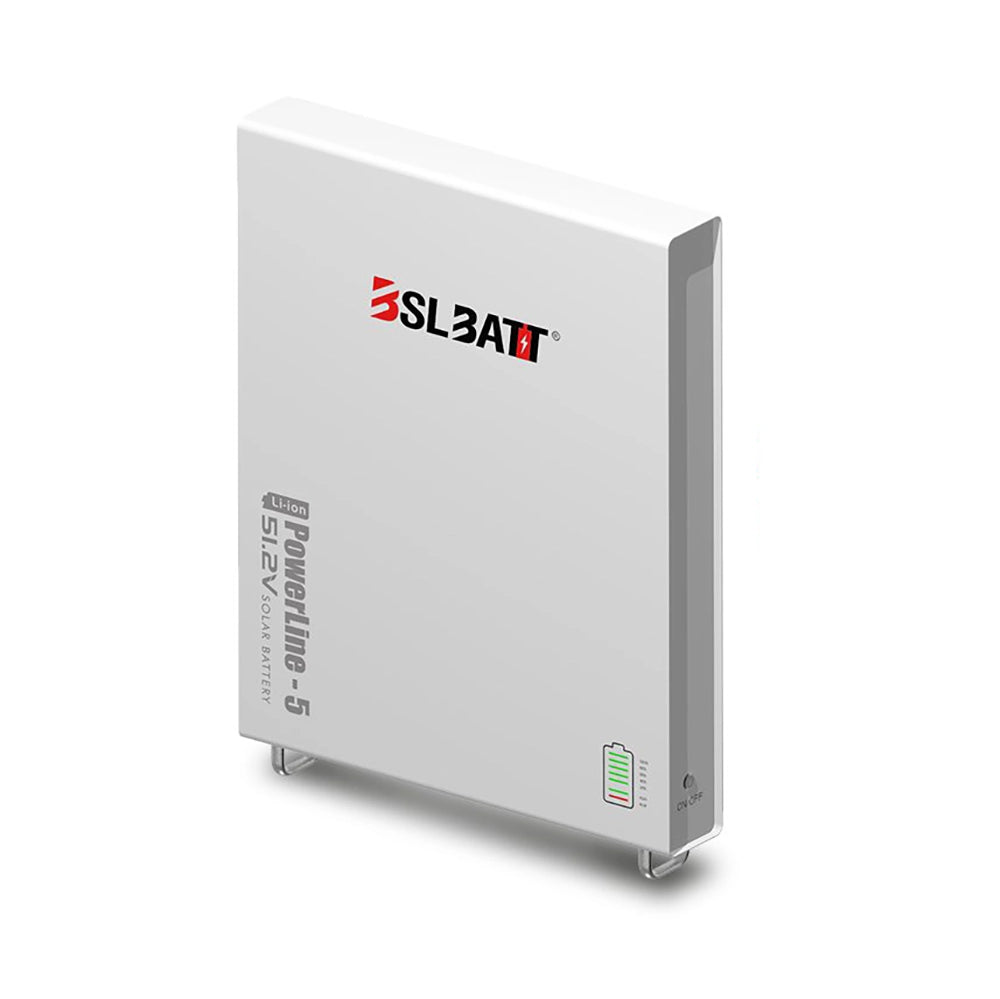

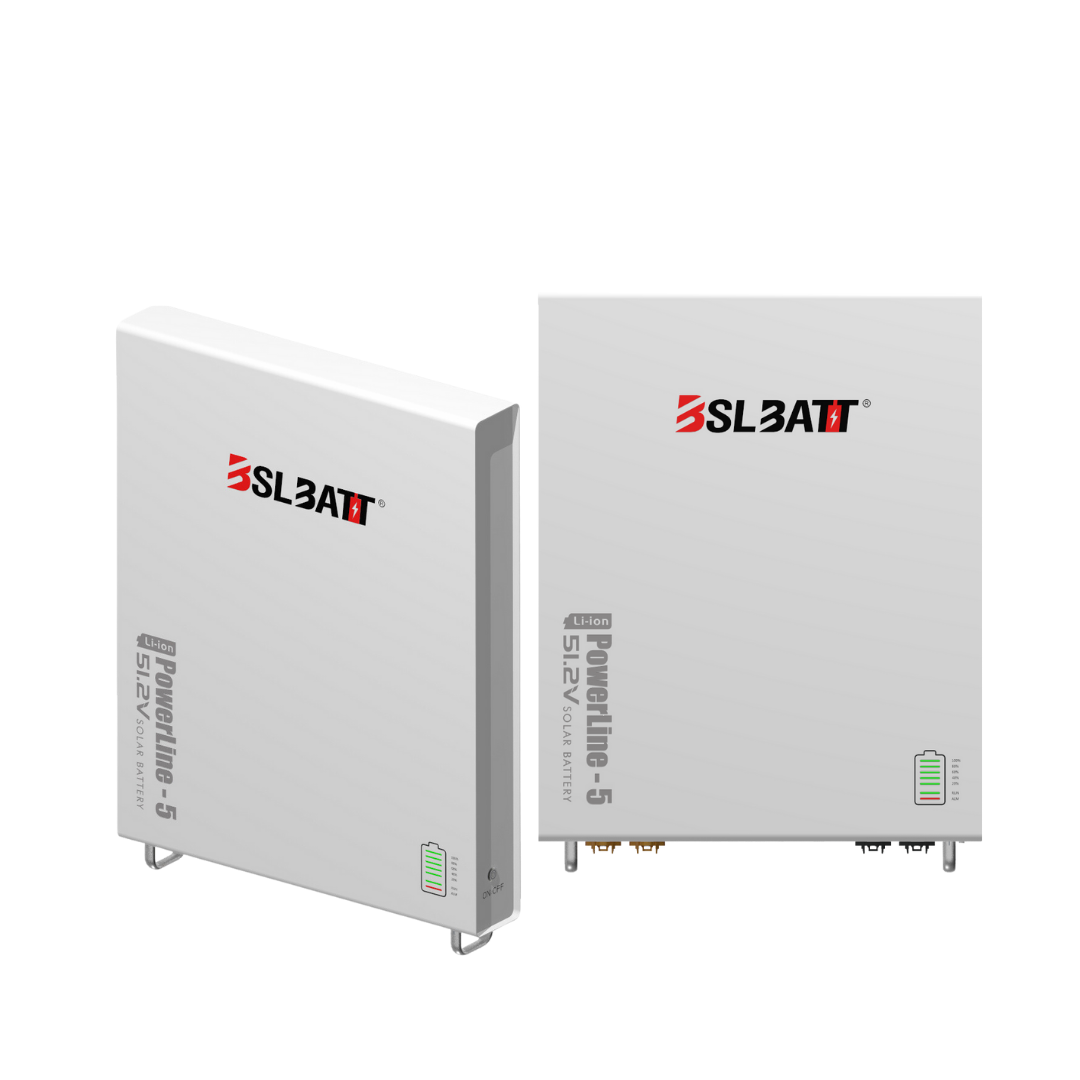

PowerLine 5 Home Energy Storage System
Introducing the PowerLine 5, the thinnest home energy storage system (ESS) available. Designed for ultra-efficient space utilization, it boasts a minimal profile of just 90mm in thickness and can be mounted directly onto your wall with a simple, snap-in installation process.
- Peak Performance: Supports 3C peak with real-time monitoring and remote debug capabilities.
- High Capacity: Offers up to 81.9 kWh in a low voltage connection, with a nominal capacity of 100Ah and a nominal voltage of 51.2V.
- Exceptional Efficiency: Achieves up to 98% efficiency with FPC technology, certified by UL1973.
- Longevity: Can cycle one to several times per day, offering an exceptional lifespan of up to 8000 cycles and can retain 80% capacity even after 6000 cycles at 100% Depth of Discharge (DOD).
- Extended Warranty: Comes with an extended warranty of up to 15 years, ensuring reliable performance and cost savings.
- Eco-Friendly: Utilizes non-toxic and non-hazardous cobalt-free LFP (Lithium Iron Phosphate) chemistry.
- Temperature Tolerance: Operates efficiently within an extended temperature range from -4℉ to 140℉.
- Safety and Certifications: Meets global safety standards with certifications including IEC62619, CE, UL1973, and UN38.3.
| Specification | Detail |
|---|---|
| Model | PowerLine - 5 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Compound Mode | 1P16S |
| Charging Voltage | 58.4V |
| Charge Current | 50A |
| Discharge Current | 100A |
| Out Of Factory Voltage | 50.4V-53.6V |
| Continuous Charging | 100A |
| Continuous Discharging | 50A |
| Self-discharge Rate | ≤ 2.5% per Month |
| Mode Of Equilibrium | Passive Equilibrium |
| Temperature Of Charge | 0℃ to +65℃ |
| Temperature Of Discharge | −20℃ to +65℃ |
| Dimensions | 670 x 540 x 90 ±1 mm |
| Weight | 50 ±1 kg |
| IP Level | IP22 |
| Certifications | IEC62619, CE, UL1973, UN38.3 |
The PowerLine 5 is an excellent choice for homeowners seeking a reliable, efficient, and space-saving solution for their energy storage needs. Ensure uninterrupted power and significant savings with this cutting-edge technology.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
