Product Overview

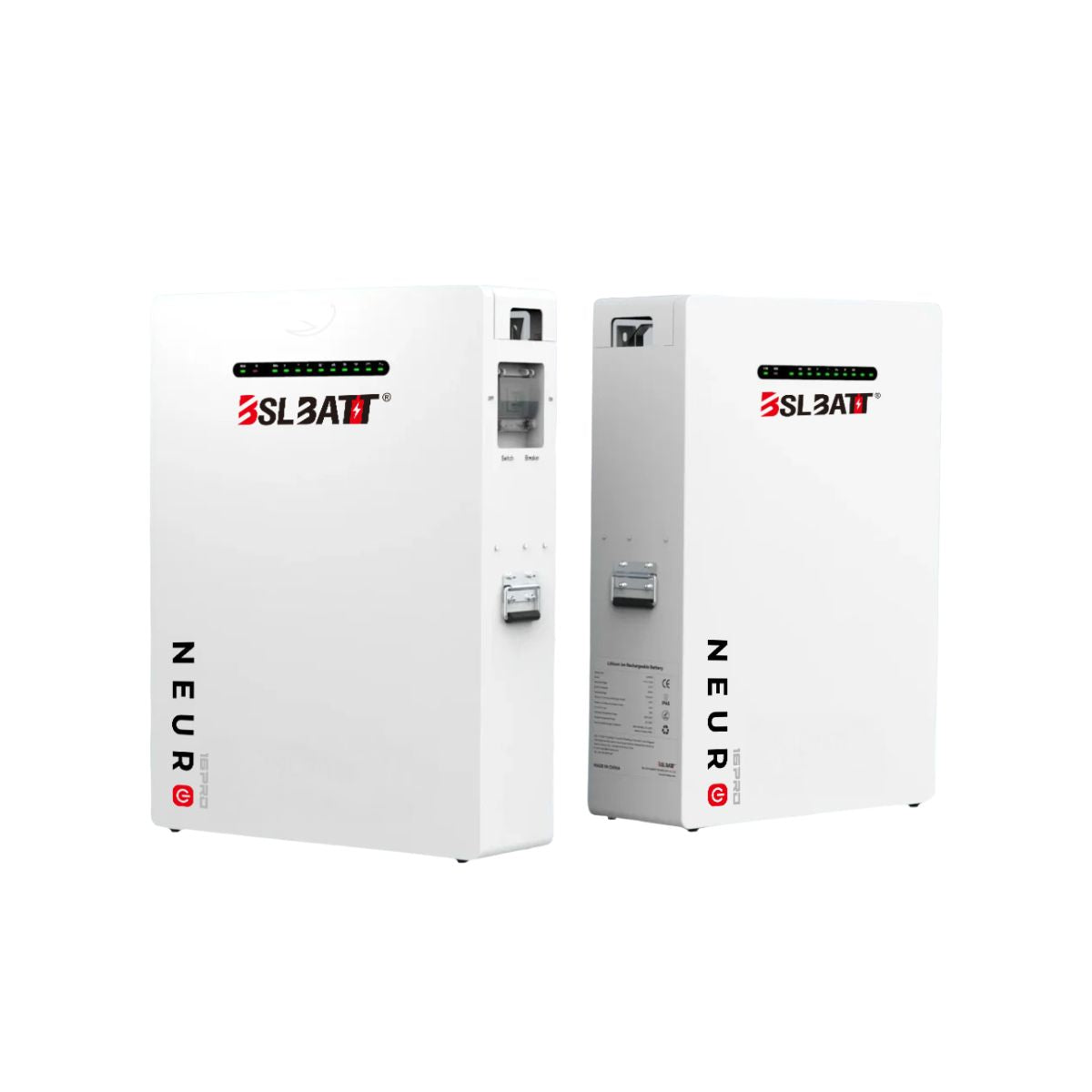

The BSLBATT Neuro 16 is a 51.2 V, 314 Ah LiFePO4 wall-mounted battery designed for solar energy storage systems. With a nominal capacity of 16.076 kWh and a usable capacity of 15.272 kWh, it is suited to home and light commercial energy storage applications where safe lithium iron phosphate chemistry, scalable capacity, and long cycle life are important.
Key Features
- 16.076 kWh nominal capacity provides substantial battery storage for solar and backup power systems.
- LiFePO4 battery chemistry offers a safer lithium-ion option with strong cycle-life performance.
- Wall-mounted design helps save floor space and keeps the installation neat.
- Scalable system design supports up to 32 batteries in parallel where the installation and compatible equipment allow.
- RS232, RS485 and CAN communication options support integration with suitable system equipment.
- IP20 protection rating for installation in an appropriate protected environment.
- Backed by a 10-year limited manufacturer warranty or up to 6000 cycles at 90% depth of discharge, whichever comes first.
Applications
- Residential solar energy storage systems.
- Backup power systems for homes and small businesses.
- On-grid and off-grid solar installations where the battery is matched with compatible system equipment.
- Scalable battery banks requiring additional storage capacity through parallel expansion.
Why Choose This Product?
The Neuro 16 is a practical high-capacity battery option for solar users who need reliable energy storage in a compact wall-mounted format. Its LiFePO4 chemistry, 90% maximum depth of discharge, parallel expansion capability and long warranty period make it suitable for properly designed storage systems where capacity, safety and service life are key considerations.
Important Notes
- Battery compatibility with a specific inverter, charger or energy management system must be confirmed before installation.
- Installation must be completed by a qualified electrician with a valid South African Certificate of Compliance, as required for warranty validation.
- The battery must be operated within the manufacturer’s specified technical limits.
- The IP20 rating means the battery should be installed in a protected environment suitable for this protection level.
- Do not dispose of the battery in general waste. End-of-life handling and recycling must follow the supplier’s battery disposal guidance.
Technical Specifications
| Specification |
Detail |
| Brand |
BSLBATT |
| Model |
Neuro 16 |
| Product Type |
Wall-mounted LiFePO4 solar battery |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
51.2 V |
| Nominal Capacity |
314 Ah / 16,076 Wh / 16.076 kWh |
| Usable Capacity |
15,272 Wh / 15.272 kWh |
| Cell & Method |
16S1P |
| Dimensions |
778 x 510 x 270 mm (H x W x D) |
| Weight |
135 kg ±3% |
| Discharge Voltage |
47 V |
| Charge Voltage |
55 V |
| Charge Rated Current / Power |
80 A / 4.096 kW |
| Charge Max. Current / Power |
160 A / 8.192 kW |
| Charge Peak Current / Power |
200 A / 10.752 kW, 1s |
| Discharge Rated Current / Power |
180 A / 10.24 kW |
| Discharge Max. Current / Power |
200 A / 11.264 kW, 1s |
| Discharge Peak Current / Power |
250 A / 12.80 kW, 1s |
| Communication |
RS232, RS485, CAN |
| Maximum Depth of Discharge |
90% |
| Expansion |
Up to 32 units in parallel |
| Working Temperature - Charge |
0°C to 55°C |
| Working Temperature - Discharge |
-20°C to 55°C |
| Storage Temperature |
0°C to 35°C |
| Short Circuit Current / Duration Time |
350 A, delay time: 500 ms |
| Cooling Type |
Natural convection |
| Protection Level |
IP20 |
| Monthly Self-Discharge |
≤ 3%/month |
| Humidity |
≤ 60% ROH |
| Altitude |
< 4000 m |
| Warranty |
6000 cycles at 90% DOD or 10 years, whichever comes first |
| Design Life |
> 15 years at 25°C / 77°F |
| Cycle Life |
> 6000 cycles, 25±2°C, 0.5C charge, 0.5C discharge |
