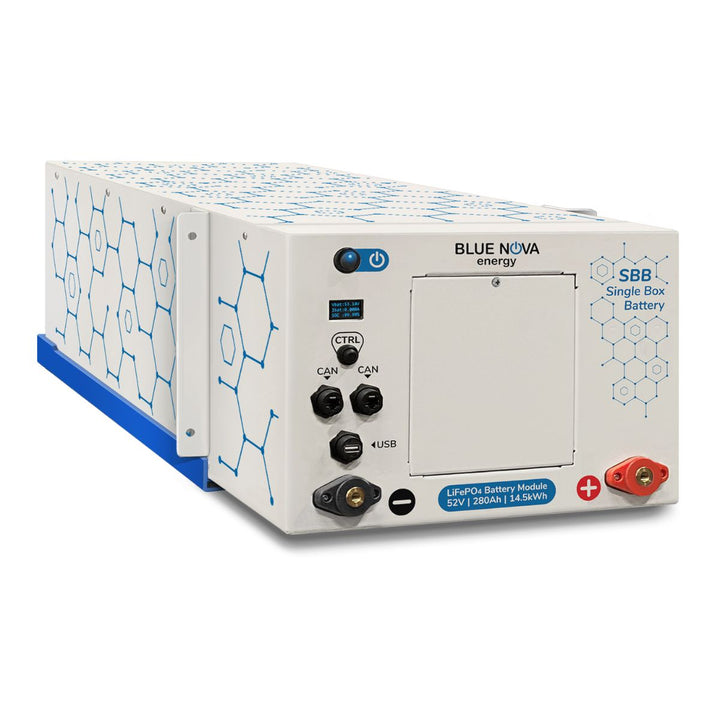

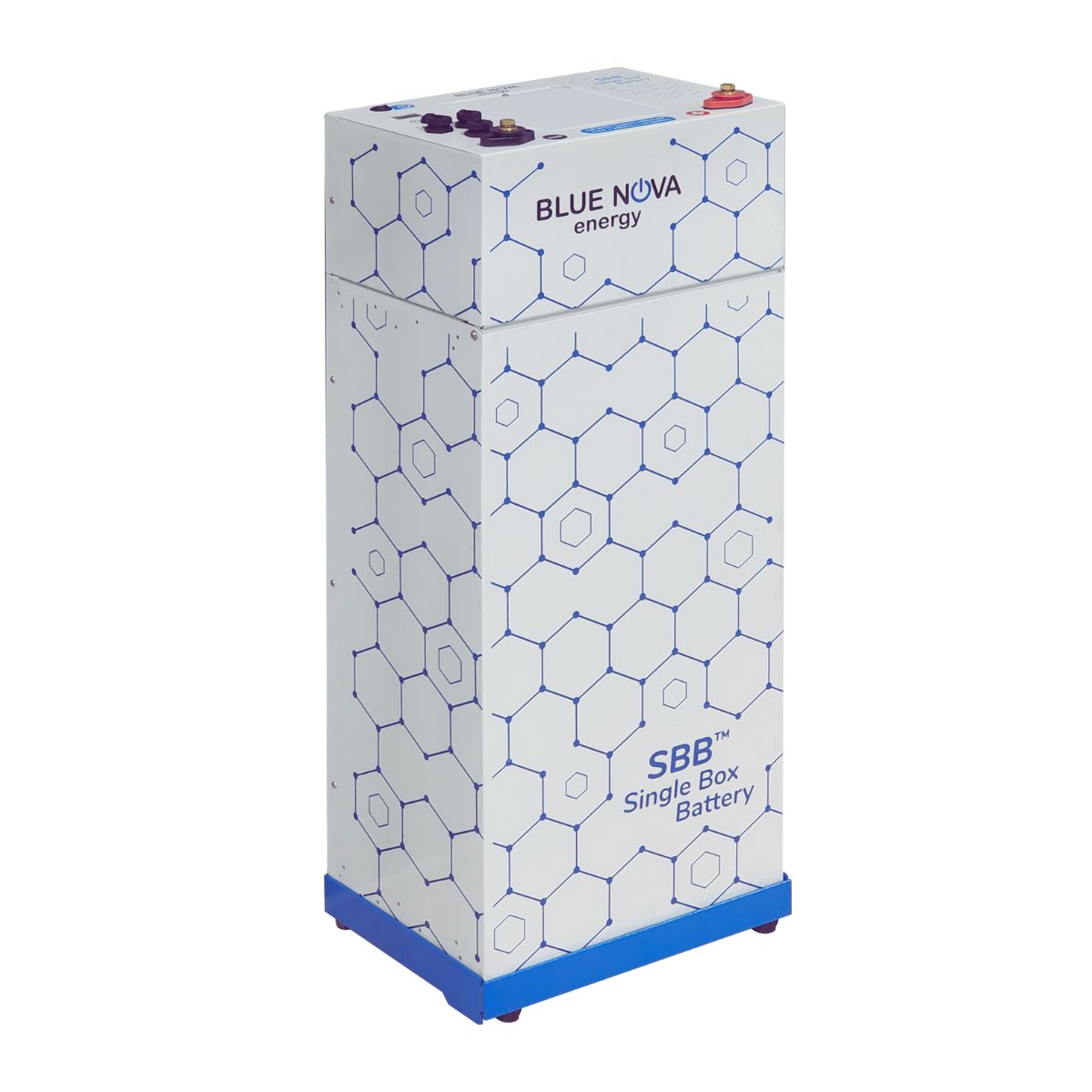

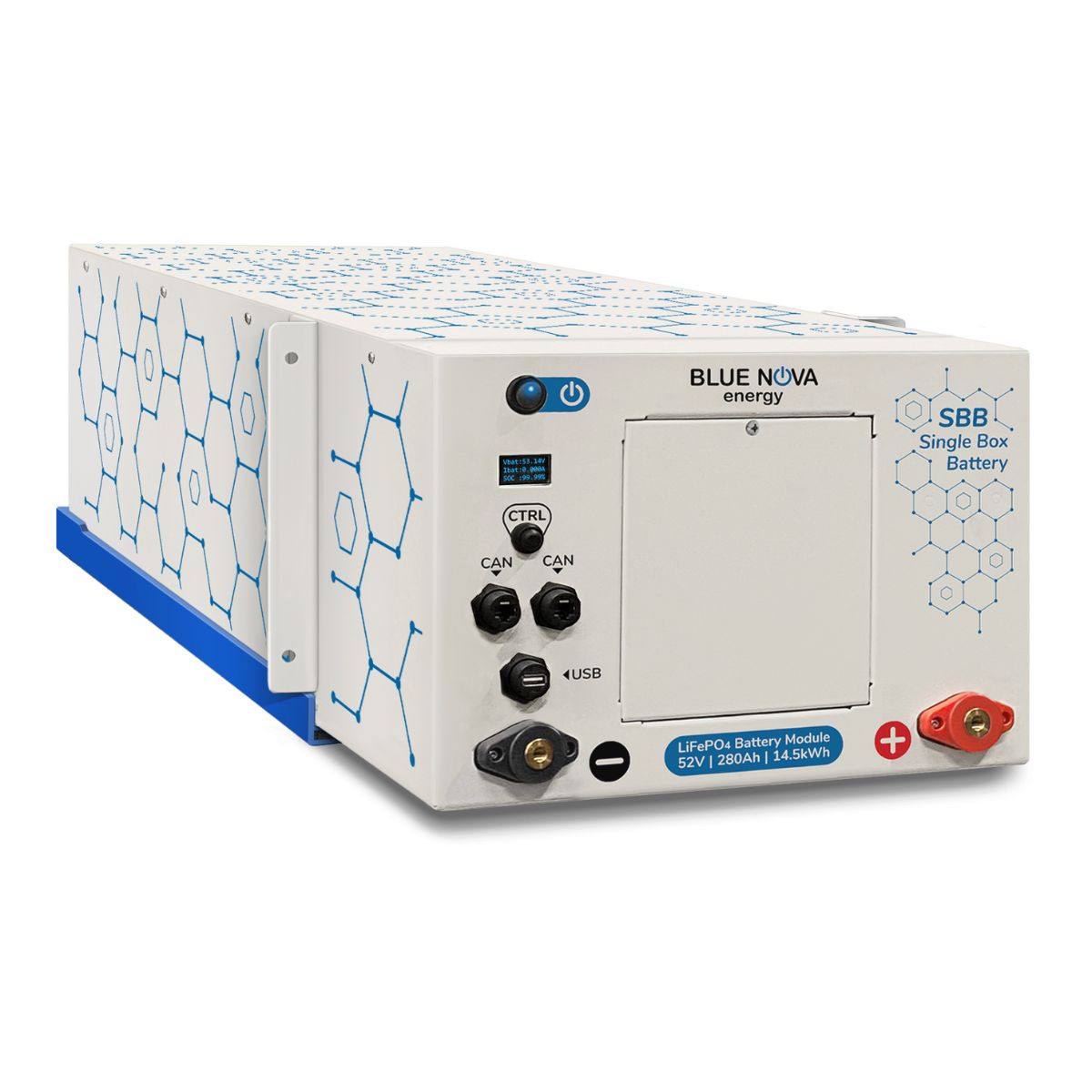

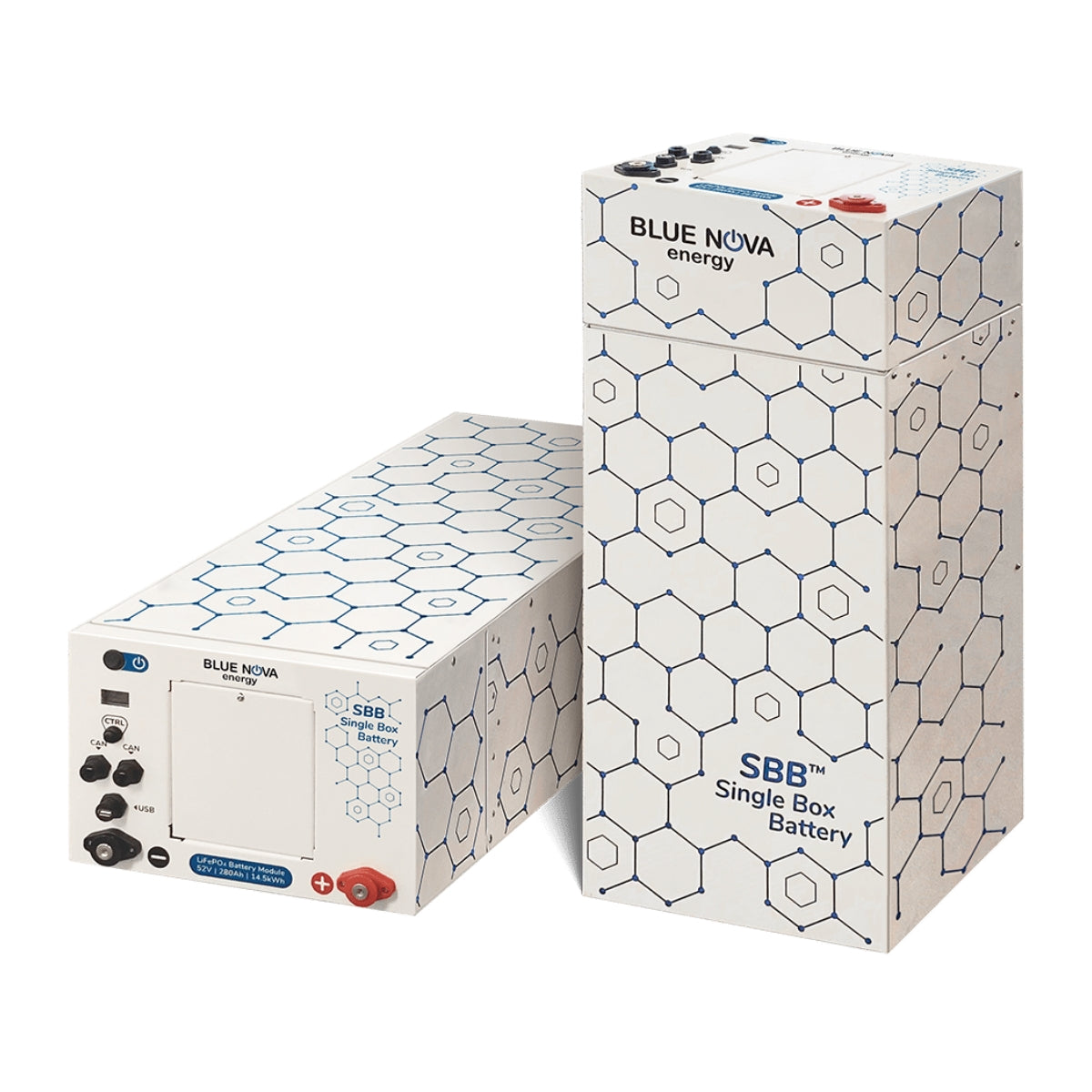

Product Description:
SBB™ batteries have been developed to allow for the easy installation of 14.5kWh of high performance battery capacity in single-module installations as well as for expanded capacities in increments of 14.5kWh. Up to 9 x SBB™ modules can be connected in parallel for a total installed capacity of >130kWh.
The integrated BMS in SBB™ batteries is a completely redesigned version of the BMS integrated in our High Current & Battery Rack Series (discontinued but still supported since April 2024). Several new improvements have been made to the new BMS in SBB™ modules, while parallel integration functionality with the legacy BMS it is based on remains intact. This means that SBB™ batteries are 100% parallel-compatible with existing HC & BR installations.
Benefits:
- Built only with new (non-refurbished) premium quality LiFePO4 cells.
- Stackable modular design for seamless expansion of capacity in increments of 14.5kWh (up to >130kWh).
- Redesigned BMS featuring optimised charge performance & legacy compatibility with High Current (HC) and Battery Rack (BR) products.
- Serial (CAN) compatible with inverters & other associated peripherals of industry-leading manufacturers.
- 10 Year warranty.
- Premium quality LiFePO4 technology.
- Built with A-grade cells & integrated smart battery management system
- Stackable Modular design.
- Designed for seamless expanson of the capacity of increments of 14.5kWh.
- Operational lifespan of 10 years.
- Guaranteed to retain> 80% of original capacity at end-of-life (at 1 cycle/day).
- Serial/CAN compatible with leading inverters and other relevant peripherals
- Weight: +-104kg.
General Specifications:
- Battery chemistry: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 52VDC
- Usable capacity: 14 560Wh @C2, 25°C
- Operating voltage range: 48V ~ 55.2V
- Operating temperature range:Charge: 0°C ~ 50°C | Dischar ge: -10°C ~ 50°C
- Cycle life @100% DoD, C2, 25°C: >3600 cycles (<20% fade) | 7000 cycles (<40% fade)
- Cycle life @ 80% DoD, C2, 25°C: >5000 cycles (<20% fade) | 9000 cycles (<40% fade)
- Cycle life @70% DoD, C2, 25°C: >7000 cycles (<20% fade) | 12000 cycles (<40% fade)
- Dimensions: 370 x 262 x 870mm (Wx H x D) incl. mounting extrusions
Voltage and Current:
- Bulk Voltage(Operational Max.): 55.2V
- Low Voltage (Min): 48V
- Charge Current (max.): 240A continuous
- Discharge Current Max: 240A continuous | 300A burst (for < 1 minute) | 750A peak (for < 2 seconds)
- Charge Power(Max):Maximum: 7 280W (C2) | Recommended: 3 640W (C4)
- Discharge power: Maximum: 7 280W (C2) | Recommended: 1 248W (C10)
- Self-discharge rate: < 2% per monthly
- Charge/discharge efficiency: 96% @C2 | 98% @C10
Safety Features:
- Isolator: 400A
- Inline fuse: 500A
- Current over-charge protection: 250A
- Voltage over-charge protection: < 58.4V (auto cut-off at first Vcell ≥ 3.65V)
- Voltage over-discharge protection: > 45.6V (auto cut-off at first Vcell ≤ 2.85V)
Kindly note that the BlueNova BMAC Battery Monitor is required with this product for warranty purposes.
https://www.sustainable.co.za/products/bluenova-bmac-battery-monitor?_pos=1&_sid=604dba04a&_ss=r
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
