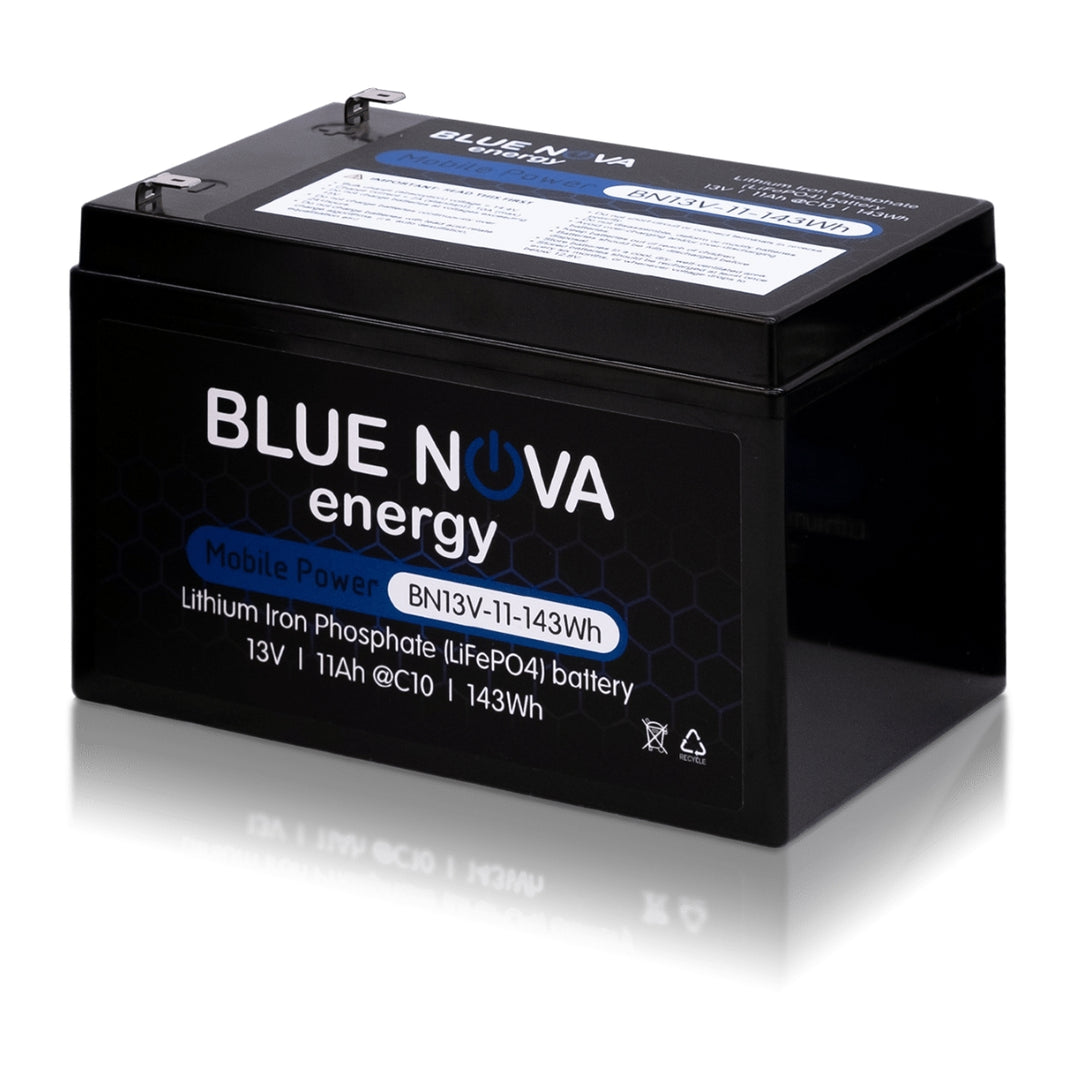

BlueNova BN13V-11-140Wh MPS LiFePO4 Battery

BlueNova BN13V-11-140Wh MPS LiFePO4 Battery

BlueNova BN13V-11-140Wh MPS LiFePO4 Battery

Regular price R 1,546.00 incl. VAT Sale price R 1,144.95 incl. VATSave R 401.05
R 99561 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

General Information

  • Battery Type: LiFePO4 (Lithium Iron Phosphate)
  • Usable Capacity: 140Wh @C10, 25°C
  • Nominal Voltage: 13VDC
  • Operating Voltage Range: 11.6 VDC – 14.4 VDC
  • Operating Temperature Range Charge: 0°C – 45°C | Discharge: -20°C – 65°C
  • Cycle Life @ 100% DoD: > 2000 cycles (140 Wh @C10, 25°C)
  • Cycle Life @ 80% DoD: > 3000 cycles (112 Wh @C10, 25°C)
  • Cycle Life @ 50% DoD: > 5000 cycles (70 Wh @C10, 25°C)
  • Dimensions (mm): 151 x 99 x 100mm (W x D x H)
  • Weight (kg): 1.5 kg
  • Warranty Period: 3 Years
  • Drop in lead acid replacement in terms of physical size. Please ensure that your charge controller/ inverter are lithium compatible.
  • Max. 4 in series, max. 2 in parallel
  • Recommended to not expand if the difference between the oldest & newest battery is more than 12 months.

Charge / Discharge

  • Bulk Voltage: 14.4 VDC
  • Float Voltage: 13.8 VDC
  • Discharge Voltage (min.): 11.6 V
  • Charge Current (max.): 11 A continuous
  • Discharge Current (max.): 11 A continuous 20 A burst (2C, 30 seconds)
  • Self-discharge Rate: < 3% per month
  • Charge & Discharge Efficiency: 96% - 99% @C1

Protection

  • Environmental Protection: IP56
  • Over-current Protection: 25 A
  • Over-voltage Cut-out: 15.6 V
  • Under-voltage Cut-out: 10.0 V

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
