Product Overview

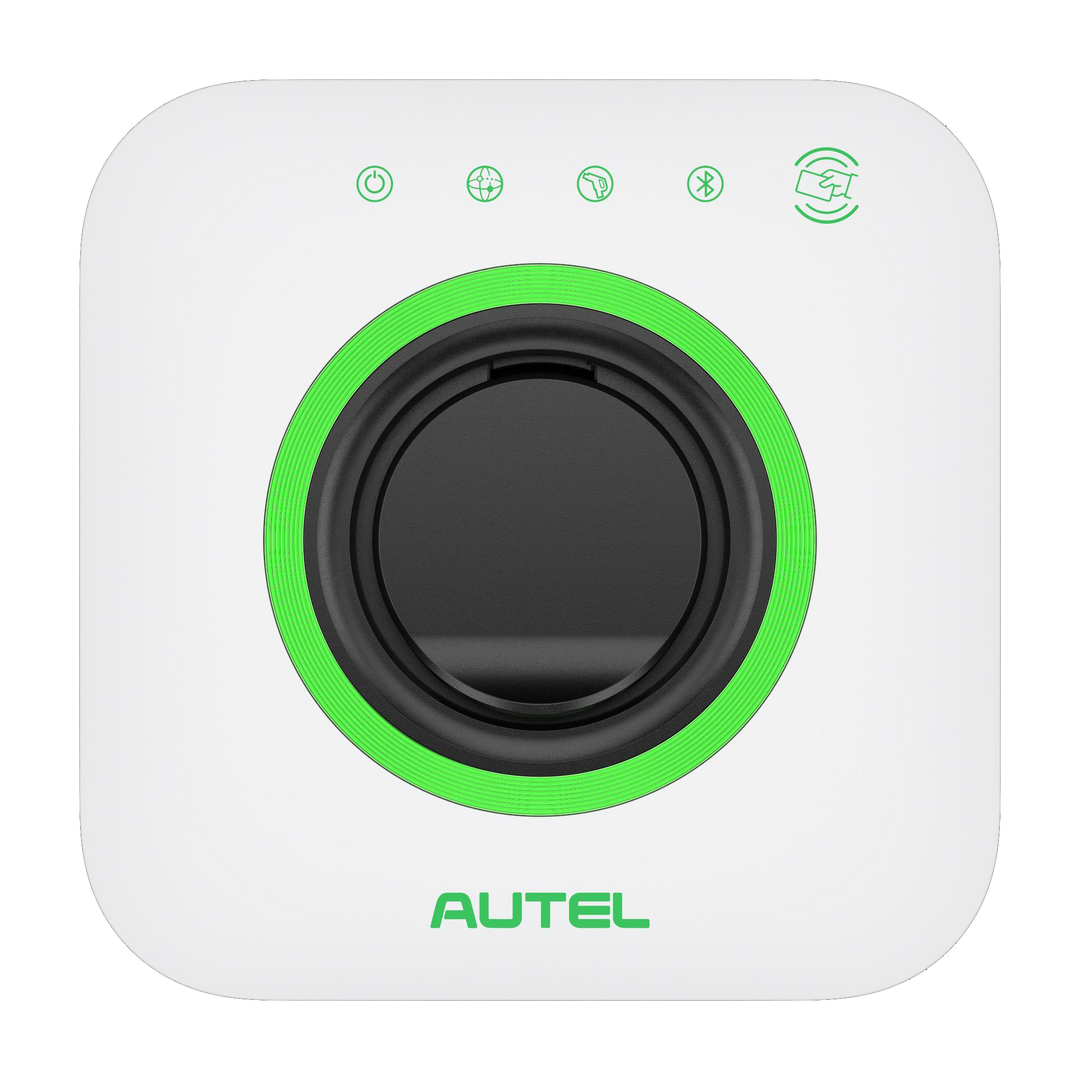

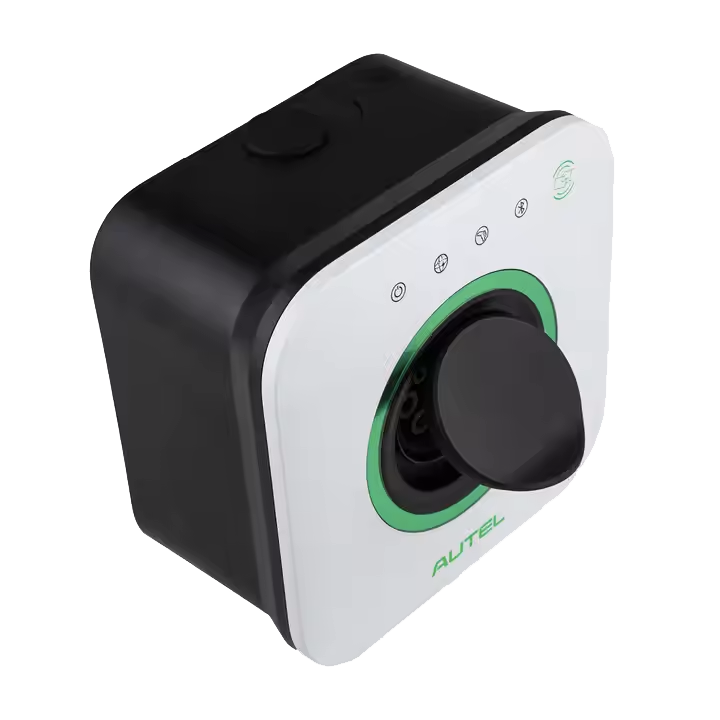

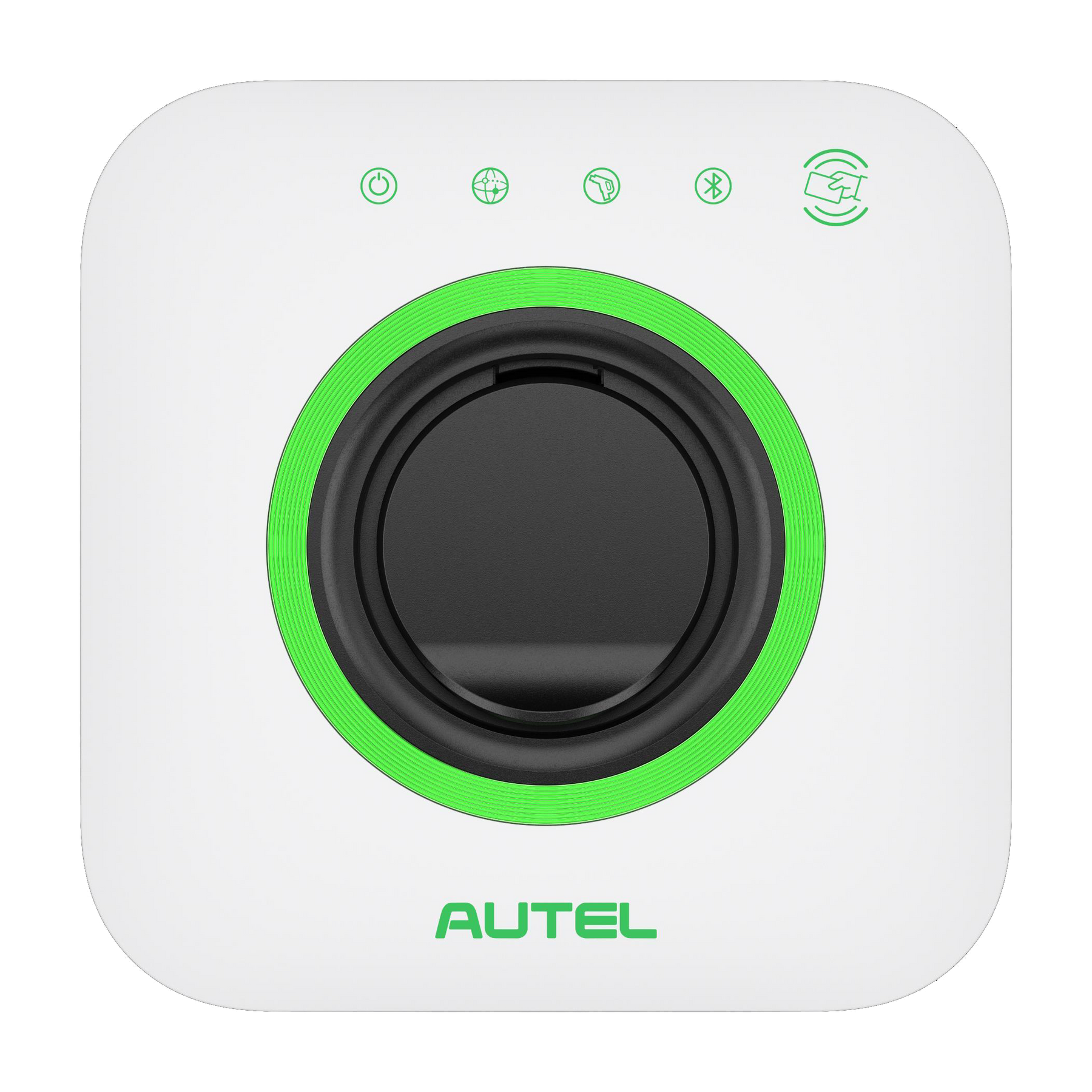

The Autel MaxiCharger AC Compact is a compact 7.4kW single-phase AC wallbox charger designed for residential, workplace and commercial EV charging. This white model uses a shuttered Type 2 socket and combines app-based control, RFID access and smart connectivity in a robust indoor/outdoor enclosure.
Key Features
- Up to 7.4kW charging output at 230V single phase and 32A.
- IEC 62196 Type 2 shuttered socket for added contact protection.
- Wi-Fi, Bluetooth and Ethernet connectivity for smart monitoring and management.
- Autel Charge App and Autel Charge Cloud support.
- OCPP 1.6J communications for integration with compatible charge-management platforms.
- RFID, app and AutoStart user authentication options.
- Integrated AC 30mA and DC 6mA residual-current detection.
- IP54 and IK10 enclosure ratings for indoor or outdoor installation.
- Compact 202 x 202 x 115mm body suits installations where wall space is limited.
Applications
- Home EV charging.
- Workplace and office parking areas.
- Fleet and light commercial charging.
- Customer and visitor charging points.
Why Choose This Product?
The MaxiCharger AC Compact offers strong connectivity and access-control features in a small wall-mounted format. Its 7.4kW single-phase output, Type 2 shutter socket and support for Wi-Fi, Bluetooth, Ethernet and OCPP make it a practical option for both private and managed EV charging installations.
Important Notes
- A separate Type 2 charging cable is required and is not included with the charger.
- Installation must be completed in accordance with local electrical regulations by a suitably qualified electrician.
- Some communications and access-control functions may require configuration, network access or compatible backend services.
Technical Specifications
| Specification |
Detail |
| Brand |
Autel |
| Model / Supplier Code |
AUT-MCC-SS-7-WH |
| Product Type |
AC EV Charger |
| Charging Mode |
Mode 3 |
| Maximum Power |
7.4kW |
| Maximum Current |
32A |
| Input / Output Voltage |
230V ±15%, single phase, 50Hz |
| Network |
Single phase, 3 wire - L1, N, PE |
| Connector |
IEC 62196 Type 2 shuttered socket |
| Residual Current Detection |
AC 30mA + DC 6mA |
| Protection |
Overcurrent, overvoltage, undervoltage and integrated surge protection |
| Connectivity |
Bluetooth, Wi-Fi, Ethernet, RS485, 4G and Modbus TCP/IP support |
| Communication Protocol |
OCPP 1.6J |
| User Authentication |
App, RFID card and AutoStart |
| User Interface |
LED indicators, Autel Charge App and Autel Charge Cloud |
| Ingress / Impact Rating |
IP54 / IK10 |
| Installation |
Wall mount or pedestal |
| Operating Temperature |
-30°C to +50°C |
| Storage Temperature |
-40°C to +70°C |
| Maximum Operating Altitude |
2,000m |
| Dimensions |
202 x 202 x 115mm |
| Certification |
CE (TÃœV) |
| Warranty |
36 months; extension may be available |
| Colour |
White |
