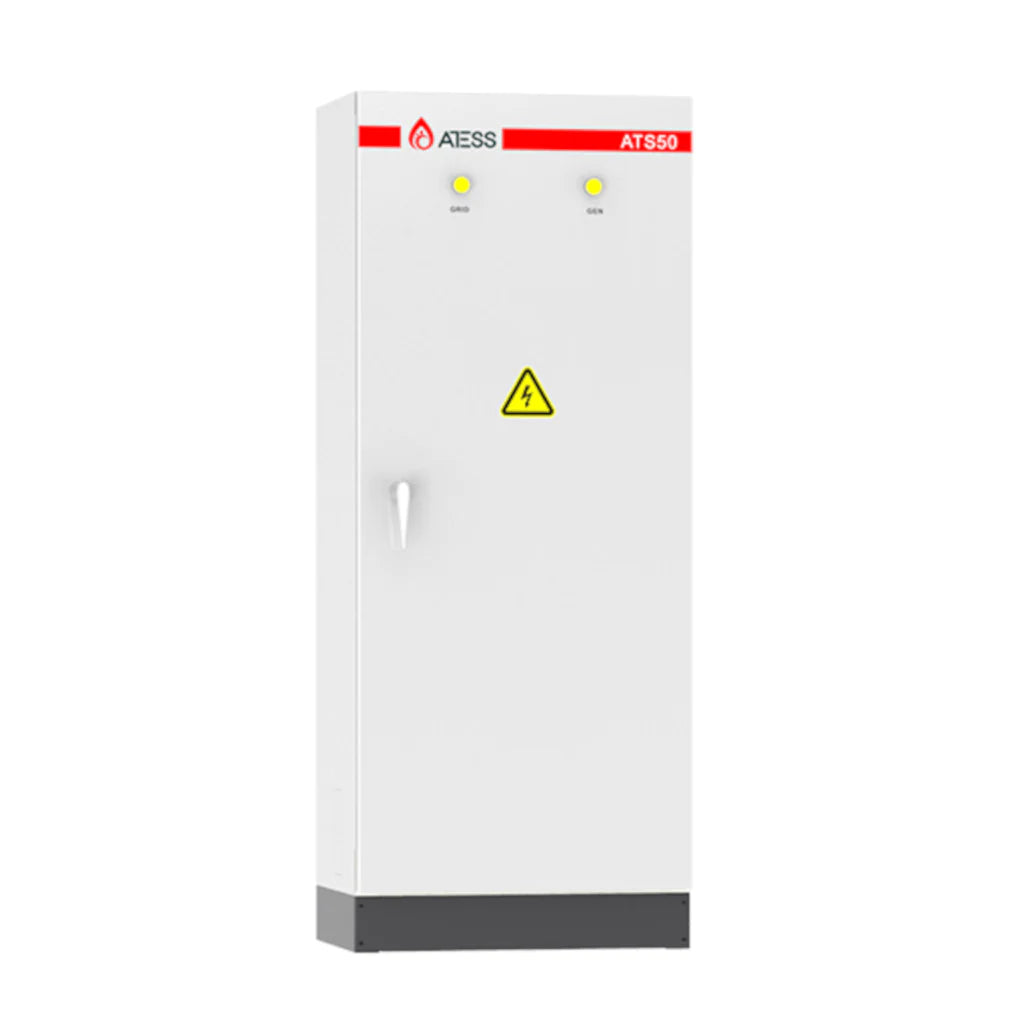

ATESS Automatic Transfer Switch for HPS
Features
- HPS compatible.
- Support remote control of Diesel Generator.
- Flexible Management.
- Transfer automatically between grid and Diesel Generator.
Technical Specifications
- Rated voltage: 400V.
- Rated current: 86A.
- Rated frequency: 50/60Hz.
- Rated power: 60kVA.
- Zero export function: Opt
- Output breaker: 100A.
- Grid breaker: 100A.
- DG breaker: 100A.
- Lightning protection: Type II.
- Protection degree: IP20.
- Relative humidity: 0~95% non-condensing.
- Operating temperature: -25°C~+55°C.
- Dimension (W/H/D): 600/1500/450mm.
- Weight: 75kg.
- Communication: RS485/CAN.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
