Aqualoop AL300 Greywater Treatment System

Aqualoop AL300 Greywater Treatment System
Aqualoop AL300 Greywater Treatment System

Aqualoop AL300 Greywater Treatment System

Regular price R 80,782.00 incl. VAT
R 70,24522 excl. VAT
incl. VAT /
Optional


Tax included. Shipping calculated at checkout.
  • Secure online payments

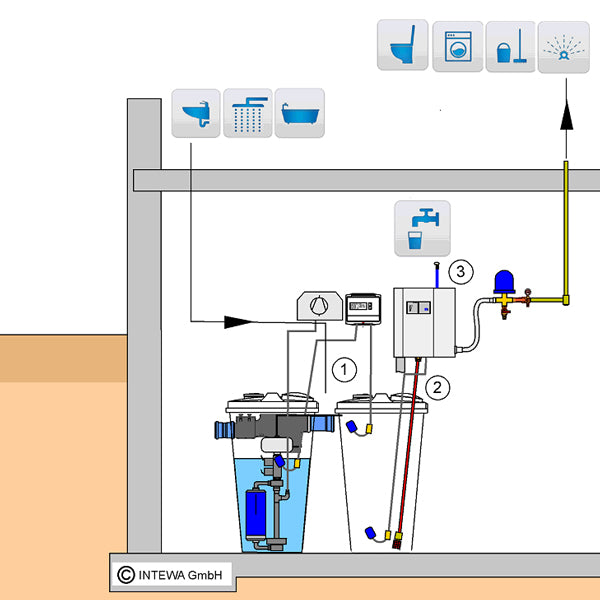

Due to minimal space requirement, grey water recycling systems can be used in most single family dwellings. Approximately 2 x 350 litres of storage volume is needed for a single family dwelling. In cases in which there is a particularly great demand for water that may not be covered by the supply of grey water, AQUALOOP can also be coupled to a rainwater tank to increase the inflow. The AQUALOOP technique can be used in internal storage tanks as well as in external storage tanks if for example there is no basement in the house. The AQUALOOP membrane station is equipped with one filtering membrane. The RAINMASTER Eco pump and control unit supplies the treated water.

The modular components of the AQUALOOP can be easily installed in most types of the storage tanks (interesting for tank producers) and significantly reduce the water consumption of hotels, camping sites, commercial buildings and industrial complexes, public buildings and private homes.

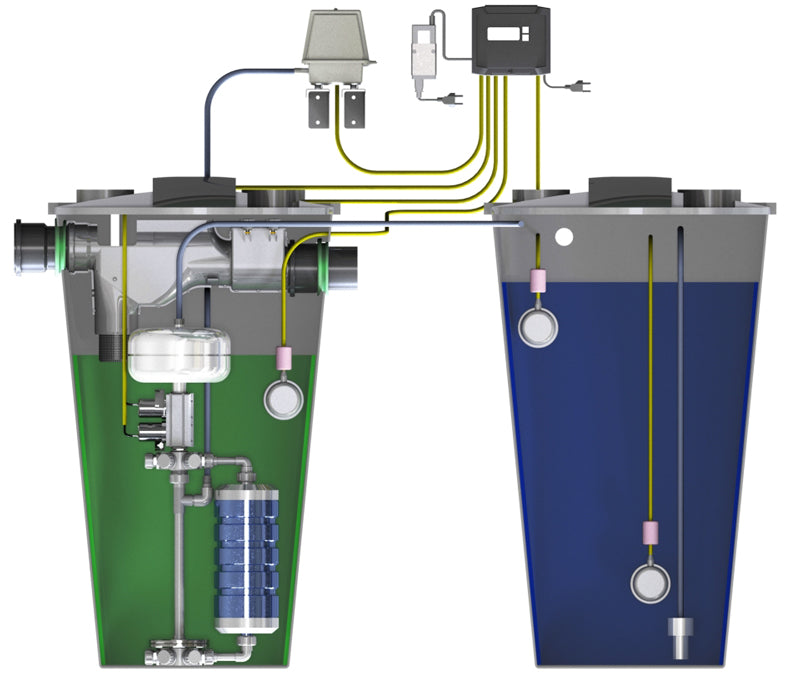

Pre-filter and growth bodies
The AQUALOOP pre-filter and growth bodies provide a consistent improvement in the quality of organically contaminated water such as household grey water in the collection tank. This is achieved by biological degradation as well as by automatic extraction of bottom sediment and floating debris from the collection tank.

Membrane station with system control
The AQUALOOP membrane station is also mounted within the collection tank. This membrane station includes a platform for the mounting of membranes. A permeate pump, back flushing pump, back flushing tank and blower connection are all integrated here. The AQUALOOP membrane station can be flexibly equipped with up to six membranes, depending on the required amount of water to be recycled. Multiple membrane stations can be used in parallel for even higher water volume requirements. Each membrane station contains a fully automatic system controller for operating and monitoring the pump and blower.

Membranes
Patented AQUALOOP MEM membranes are the core of the water treatment process. The mem­branes special hollow fibres are designed to effectively retain bacteria and virus. AQUALOOP can improve the water quality without chemical additives such as chlorine, which has proven hazardous to health. This is equally good for the environment and for your wallet. AQUALOOP's special design and water treatment process allow for a long service life of up to 10 years with only minimal maintenance.

Blower
The blower simultaneously fulfils the jobs of membrane cleaning and supplying oxygen to the bioreactor.

Tank
The new water treat­ment plant's AQUALOOP pre-filter and AQUALOOP membrane station can be integrated into almost any tank, regardless of whether it is situated indoors or outdoors. By using an existing tank, the transportation cost for delivering AQUALOOP technology becomes very low.
Water supply units. The recycled water is pumped throughout the house for uses such as toilet flushing, washing machine or irrigation via the RAINMASTER pump and control system.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
