Inputs and Outputs

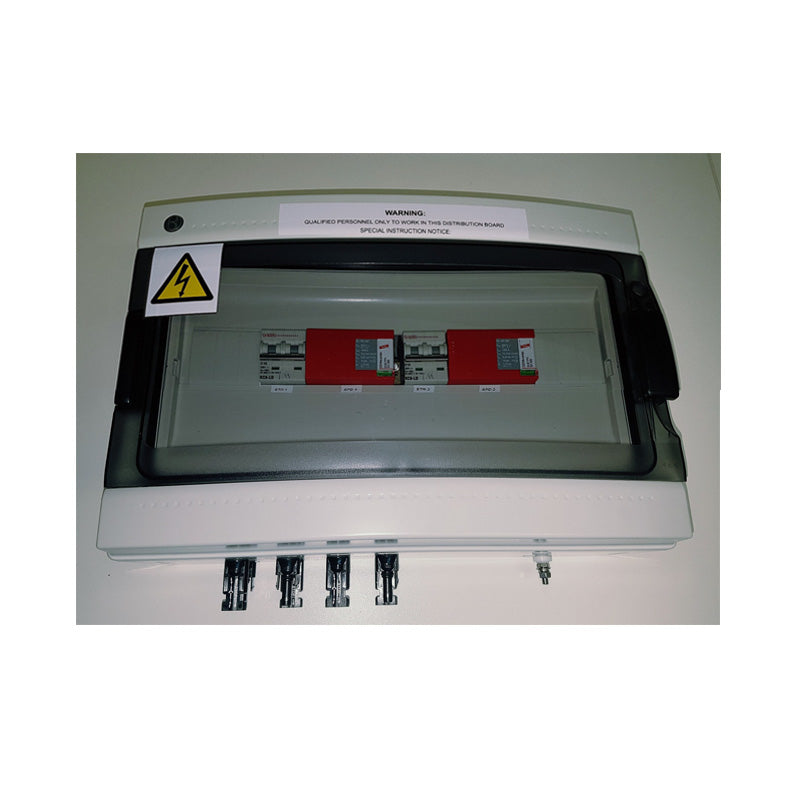

- This unit combines 4 PV input pairs into 1 DC outputs. The inputs and outputs have MC4 connectors pre-fitted. There is also a gland output for earthing.
- DC isolation: rated at 63A and 600V.
DC surge protection
- This unit has Dehn or Citel Type 1 & 2 DC surge arrestors included and is suitable for installation sites that experience frequent lightning strikes.
- Weight: 4.37 kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
