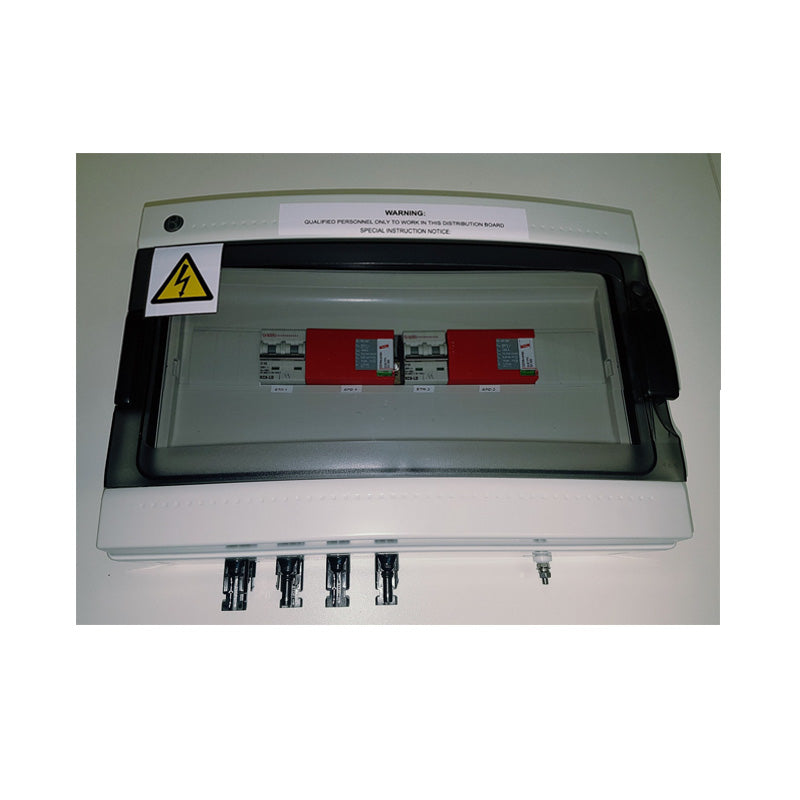

Technical Data
- Number of Inputs: 2 string input.
- Number of Outputs: 1 string output.
- Surge Protection Device: 600V DC Type II.
- Max current: 32A.
- Max String Voltage -Voc: 600Vdc.
- String Connection: Staubli MC-4 set.
- IP Rating: IP 65.
- Enclosure Material: Glass Reinforced Polyester.
- Enclosure Color: RAL 7032.
- UV Stabilized: Yes.
- Additional Heat Dissipation: M12 ventilation plug.
- NRCS Regulatory Approval: Yes – components certified under NRCS.
- Ambient Temperature range: -25°C / +40°C.
- Max Operating Voltage: 1000V AC / 1500V DC.
- External Earth Stud.
- Enclosure size: 286 x 418 x 148mm.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
