Inputs and Outputs

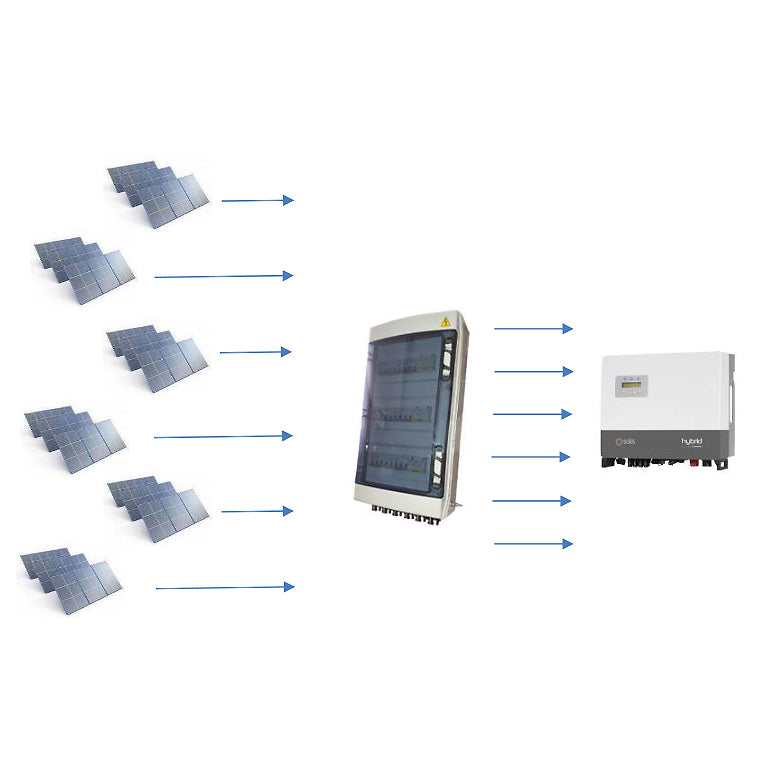

- This unit combines 6 PV input pairs into 6 DC outputs. The inputs and outputs have MC4 connectors pre-fitted. There is also a gland output for earthing.
- DC isolation: rated at 20A and 1000V.
DC surge protection
- This unit contains two Dehn or Citel Type 1 & 2 DC Surge Protection Devices (SPDs), these are suitable for installation on sites that experience frequent lightning strikes.
- The protection box contains 3 x SPDs, providing protection for inverters containing a maximum of 3 x MPPT.
- Weight: 8.74 kg.
- IP65
- Glass Reinforced Polyester Base
- Polycarbonate Lid
- RAL 7032
- Impact Resistant
- Double Insulated – Class II
- Ambient Temperature range: -25°C / +40°C
- Max Operating Voltage: 1000V AC / 1500V DC
- External Earth Stud

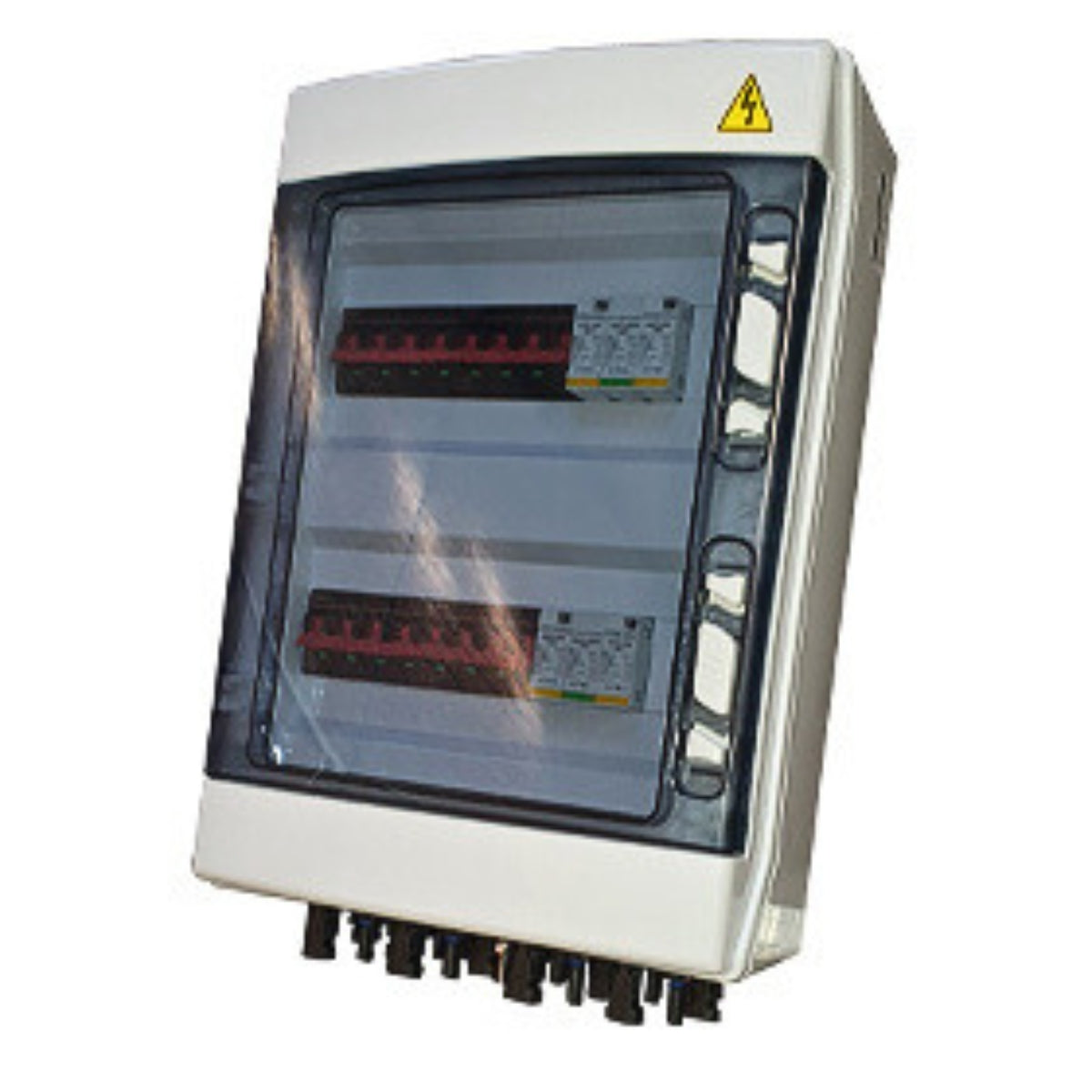

- This product is designed to provide individual string protection and external isolation for Solar PV strings.
- The enclosure is fitted with Original Staubli MC-4 Solar Connectors for ease of connection of input strings.
- The enclosure provides excellent protection against the elements and is UVstabilized
- Pre-wired internal switchgear improves the system installation time.
- Connectors are clearly marked to streamline installation
| Number of Inputs | 6 string input |
|---|---|
| Number of Outputs | 6 string output |
| Surge Protection Device | 1000V DC Type I & II |
| Max current | 20A |
| Max String Voltage - Voc | 1000Vdc |
| String Connection | Staubli MC-4 set |
| IP Rating | IP 65 |
| Enclosure Material | Glass Reinforced Polyester |
| Enclosure Color | RAL 7032 |
| UV Stabilized | Yes |
| Additional Heat Dissipation | M12 ventilation plug |
| NRCS Regulatory Approval | Yes - components certified under NRCS |
| Enclosure size | 470 x 310 x 148mm |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
