Product Description

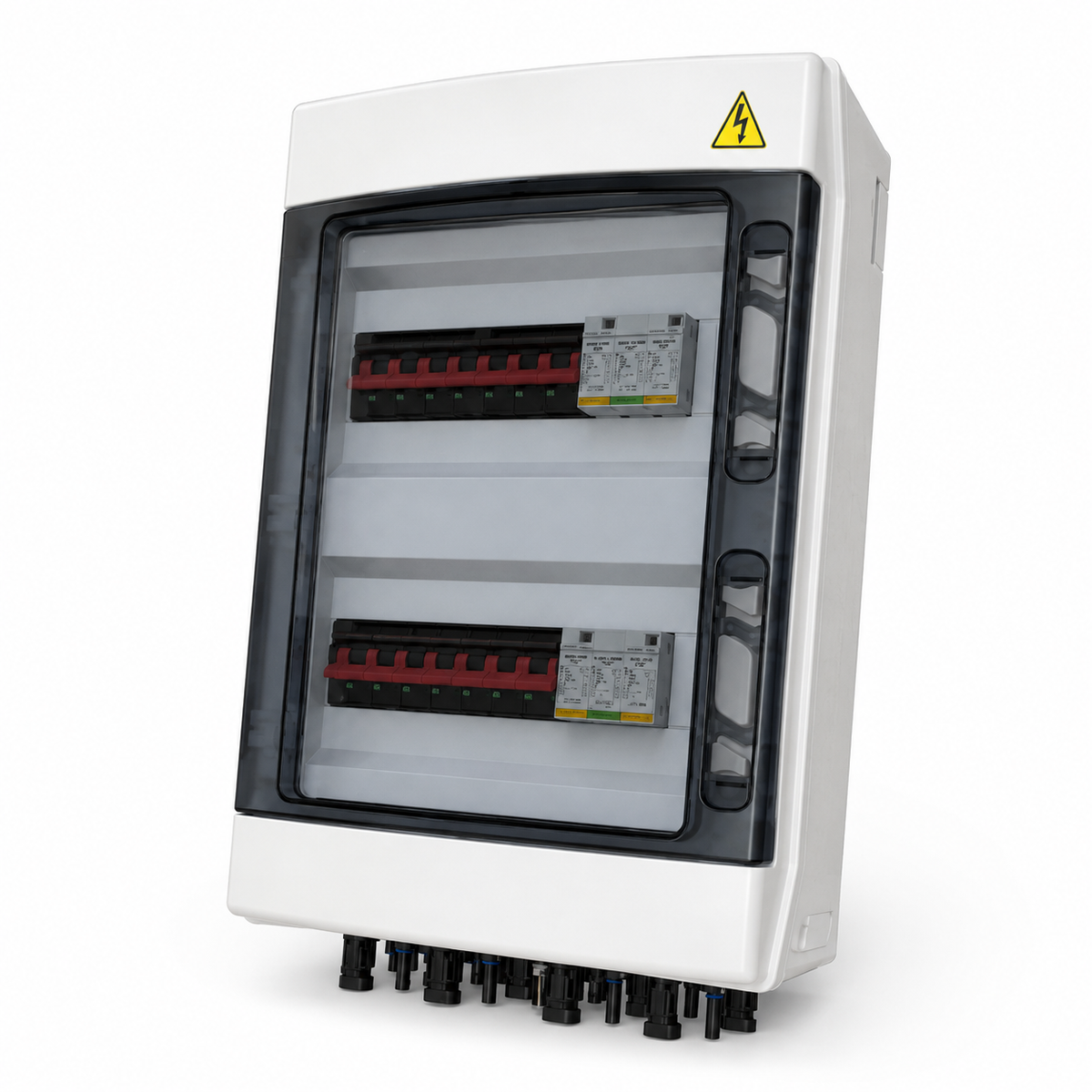

Experience maximum protection for your solar power system with the 1000V 2-MPPT Protection Box. Featuring 2 inputs, 2 outputs, and a 20A MCB Type I_II SPD, this box ensures efficient and safe operation up to 1000V. Trust in its advanced technology for reliable performance.

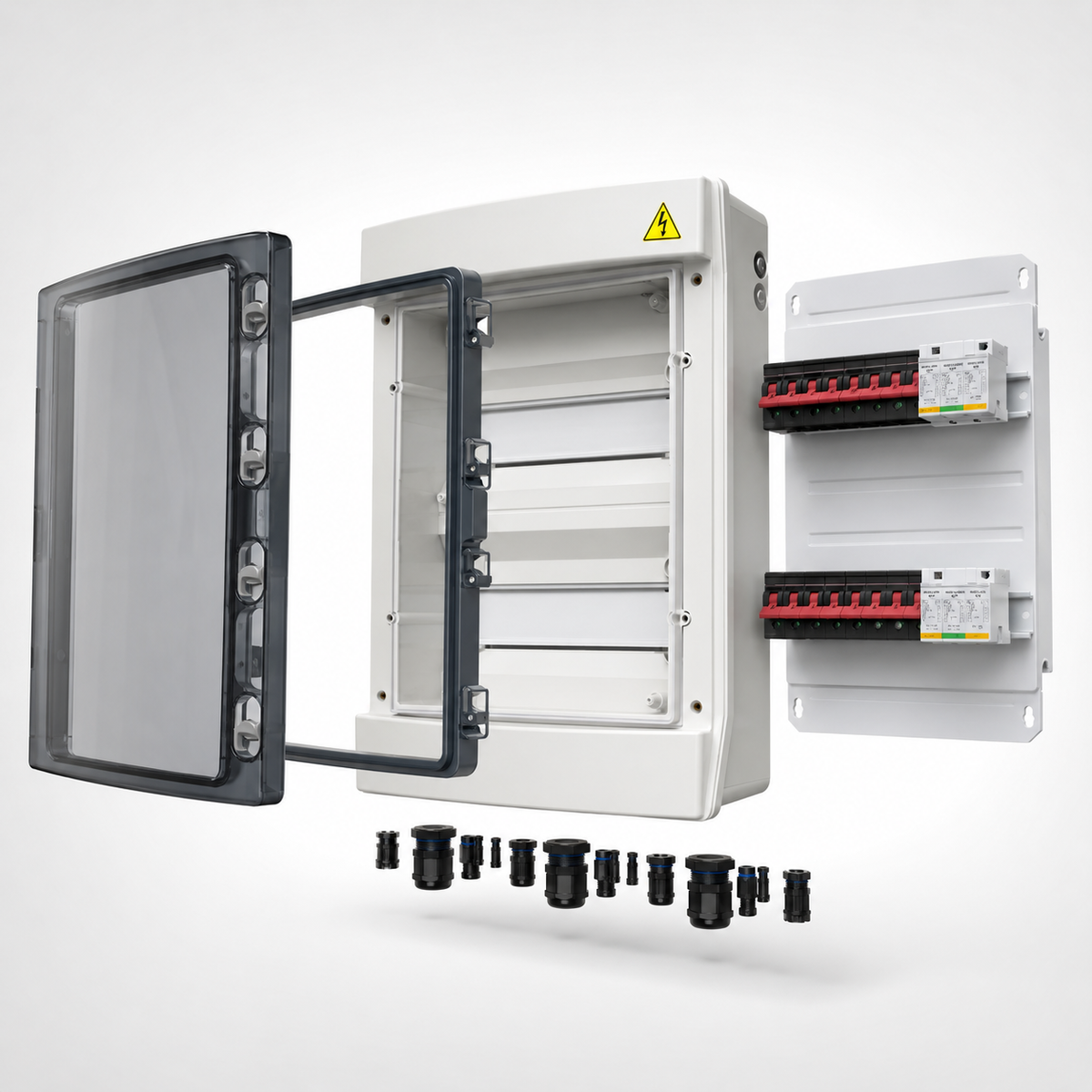

• This unit combines 2 PV input pairs into 2 DC outputs. The inputs and outputs have MC4 connectors pre-fitted. There is also an external earth stud for earthing.
• Each string is protected by DC circuit breakers rated at 20A and 1000V
• This unit contains two Dehn or Citel Type 1 & 2 DC Surge Protection Devices (SPDs), these are suitable for installation on sites that experience frequent lightning strikes.
• The SPDs are compatible with inverters that have a maximum of 2 x MPPT
• Weight: 4.37kg

For use with high voltage DC strings up to 1000Vdc.

•  IP65
• Glass Reinforced Polyester Base
• Polycarbonate Lid • RAL 7032
• Impact Resistant
• Double Insulated – Class II
• Ambient Temperature range: -25°C / +40°C
• Max Operating Voltage: 1000V AC / 1500V DC
• External Earth Stud

Technical Data

• Number of Inputs: 2 string input
• Number of Outputs:  2 string output
• Surge Protection Device: Yes – 1000V Type I & II DC SPD
• Max current:  -Voc 20A DC
• Max String Voltage: 1000Vdc
• String Connection: Staubli MC-4 set
• IP Rating: IP 65
• Enclosure Material:  Glass Reinforced Polyester
• Enclosure Color: RAL 7032
• UV Stabilized:  Yes
• Additional Heat Dissipation: M12 ventilation plug
• NRCS Regulatory Approval: Yes – components certified under NRCS
• Enclosure size: 286 x 418 x 148mm

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
