Technical Specifications
- Inveter Connection: 5 Wire-L1-L2-L3-N-E
- Recommended inverter Cable size (inverter input): 35mm2/core.
- Circuit Breaker Current Rating - Inverter Input Non - Adjustable: 125A.
- Circuit Breaker Current Rating -Main Output Non - Adjustable: 125A.
- Number of inverter Inputs : 4.
- Number of Outputs: 4.

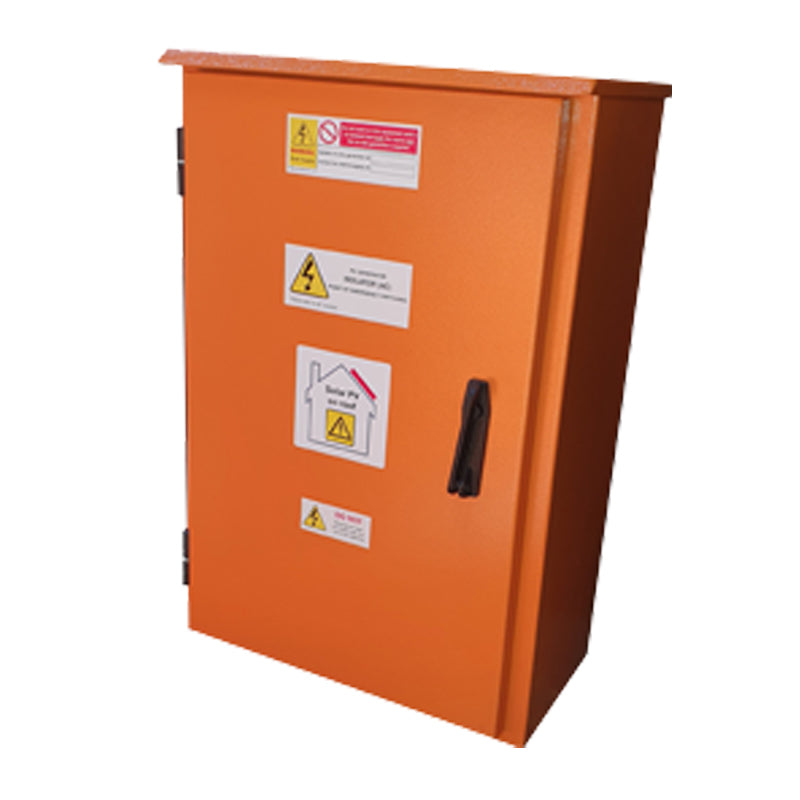

- Enclosure Material: Mild Steel
- Enclosure Material: Thickness 1,6mm.
- Enclosure Colour: B26 Orange.
- Mounting Wall: 1 x set of 4 wall brackets.
- Door opening: Hinged on side Lever Lock.
- Internal Cover Plate: White Removable Yes.
- Internal Componets pre-wired: Yes.
- Panel AC Fualt level: 10kA.
- System Voltage: 1000V.
- IP Rating: IP65.
- Earth Stud: YES.
- Dimensions Height/Width/Depth(mm): 500 x 310 x 160.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
