Product Description

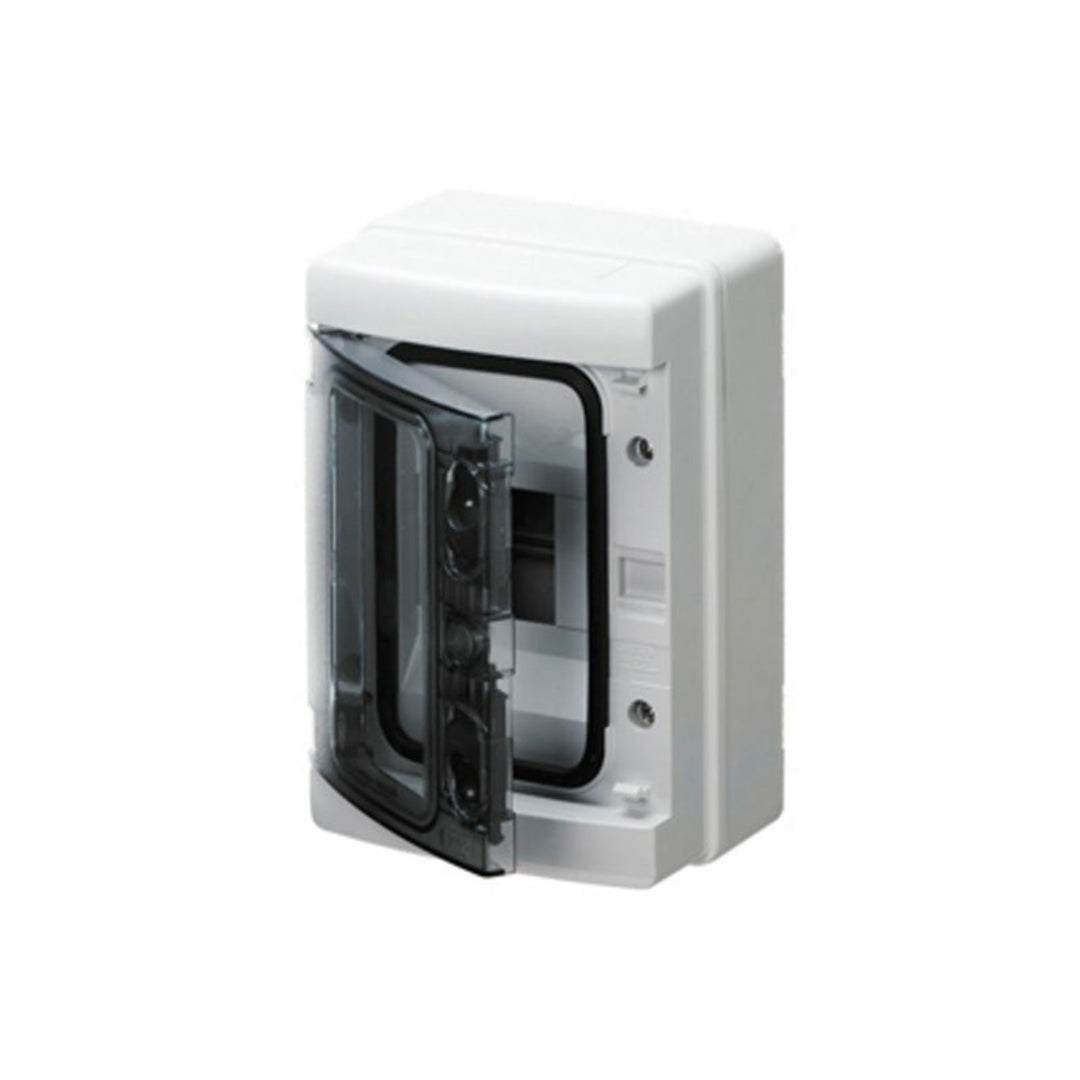

The GEWISS Smooth Walls Enclosure - Pre-Arranged for Terminal Block - 4M IP65 (Code: GW40101) is part of the 40 CD Range, featuring surface-mounting distribution boards and enclosures. This series offers control units in various configurations, with sizes ranging from 8 to 72 modules. These units are designed for aesthetic integration with all types of furniture and are available in both transparent and blind door versions. The product features include: IP65 watertight rating, ensuring protection against dust and water ingress. Insulation class II, conforming to IEC 61140 standards. Outer dimensions of 143x210x100 mm, making it compact and suitable for various installations.
A mechanical resistance rating of IK09, indicating robustness against impacts. Rated voltage of 400 V and a rated current of 125 A. A glow wire test rating of 650 °C and an operating temperature range of -25 to +60 °C. Compliance with EN 60670-1, IEC60670-24, and CEI 23-49 standards. The enclosure is made from Halogen-free material in compliance with EN 60754-2. Supplied accessories include screwcaps, module masks, and circuit labels This enclosure is suitable for a range of electrical installations, offering both safety and versatility.
Advantages
- Easy installation of surface mounting boxes - can be installed at 180°.
- Cable entry and wiring optimized.
- More wiring space between modular devices and terminals, and behind the DIN rails.
- Neat and practical wiring thanks to a patented wiring system.
Specifications
- Dimensions: 143mm x 210mm x 100mm.
- No. of DIN Ways: 4.
- Rated Voltage: 400V
- Rated current: 125A
- Operating Temp: -25 +60°C
- Mounting type: Surface.
- IP Rating: IP65.
- Door Colour: Transparent Smoked.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
