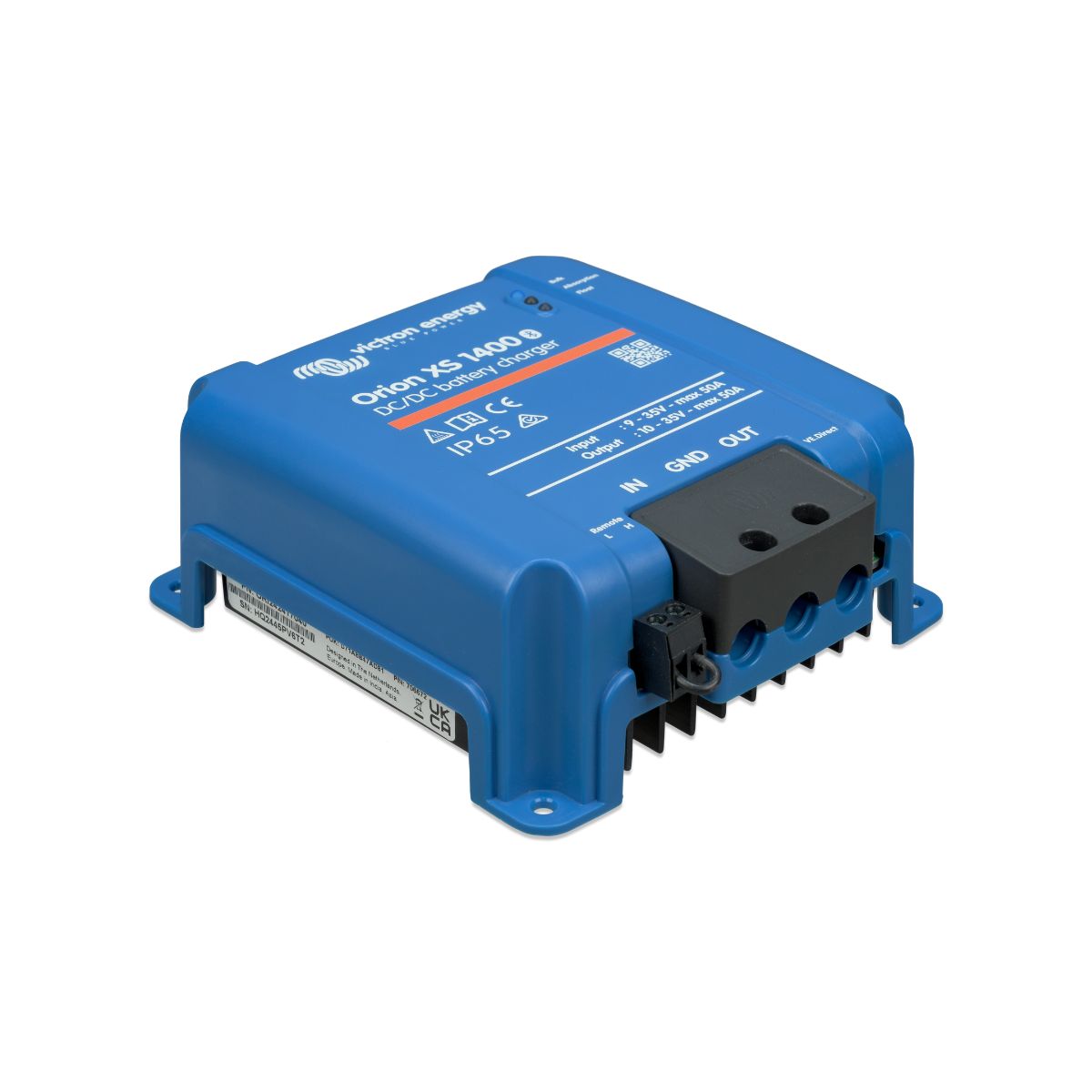

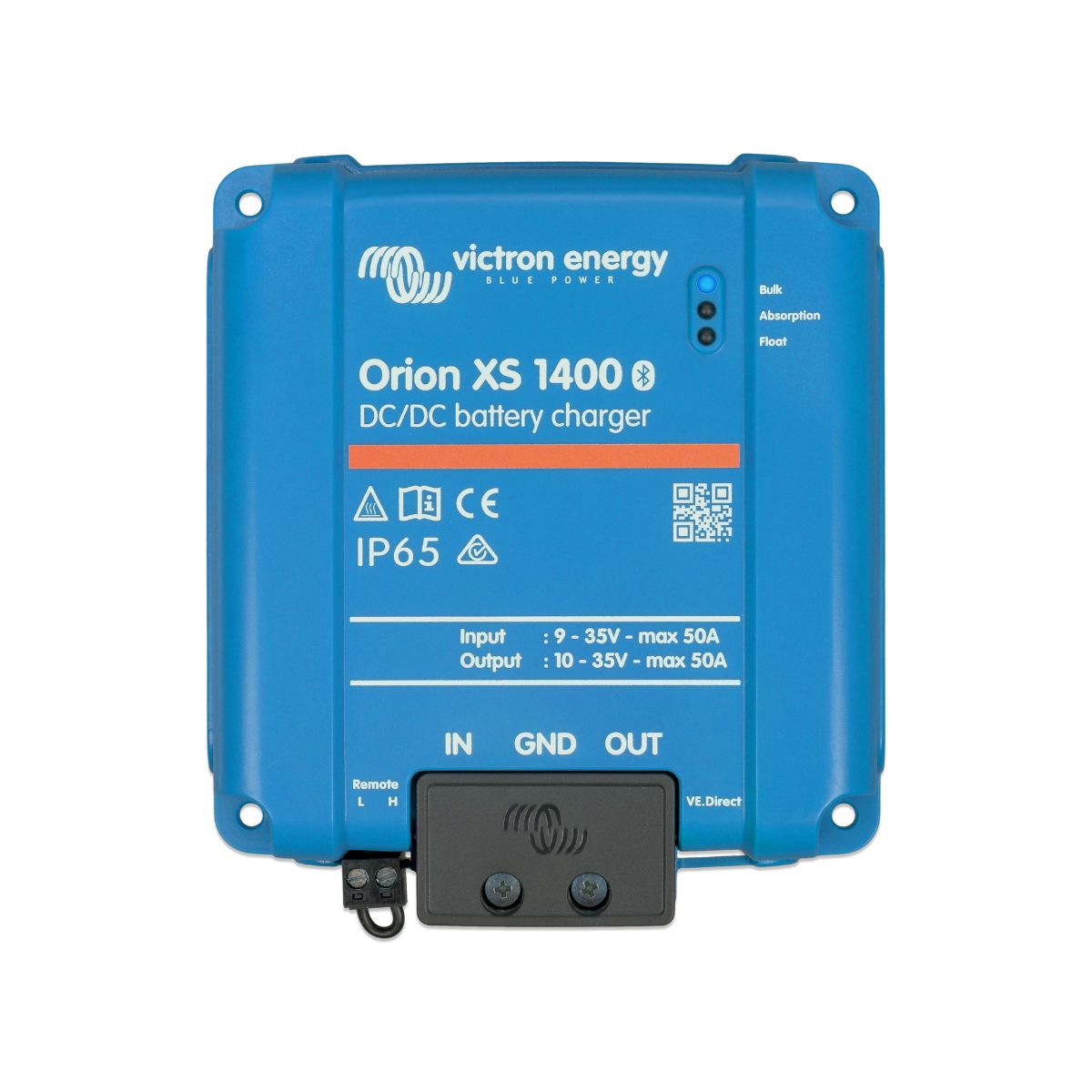

Using engine power to charge your service battery, the Orion XS DC-DC charger combines impressive power with an ultra-compact, fanless design. Available as a 12V or 12V/24V/mixed-voltage model, it's ideal for dual-battery setups and doubles as a DC-to-DC converter for sensitive electronics.

The Orion XS supports any alternator and battery setup with configurable voltage and current, achieving 98.5% efficiency and maintaining full rated output even at 40°C/104°F. It draws a stable load from smart Euro 5/6 alternators, preventing the service battery from being undercharged. The 4-stage charging algorithm adapts to discharge depth, extending battery life across all common chemistries.

Specifications:

• Input Voltage Range: 9-35V
• Output Voltage Adjust Range: 10-35 V
• Output Voltage Tolerance: +/- 0.25% (max)
• Output Voltage Noise: 10 mV rms
• Input and Output Current Setting Range: 1-50A
• Maximum Constant Short-Circuit Current: 50 A
• Continuous Output Power (up to 40°C): 1400 W
• Maximum Efficiency: 98.5%
• No-Load Current Consumption: < 100 mA
• Standby Current Consumption: < 1.5 mA
• Can be Used as Power Supply: Yes, output voltage can be set with VictronConnect App

Communication:

• VictronConnect App / Bluetooth Smart: Yes
• VE.Smart Networking: Yes
• VE.Direct: Yes (including DVCC)

Other Features:

• Operating Temperature Range: -20 to +60°C (derating 1.5% per °C above 40°C)
• Humidity: 95%, non-condensing
• Maximum Altitude: 2000 m
• Pollution Degree: PD2
• Overvoltage Category: OVC 1
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 4AWG (21.2 mm²)
• Weight: 0.520 kg
• Dimensions (HxWxD): 138.1 x 124.4 x 53 mm
• Protection Category: IP65

Standards:

• Safety: IEC 62477-1
• EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-0033
• Automotive Directive: ECE R10-6
