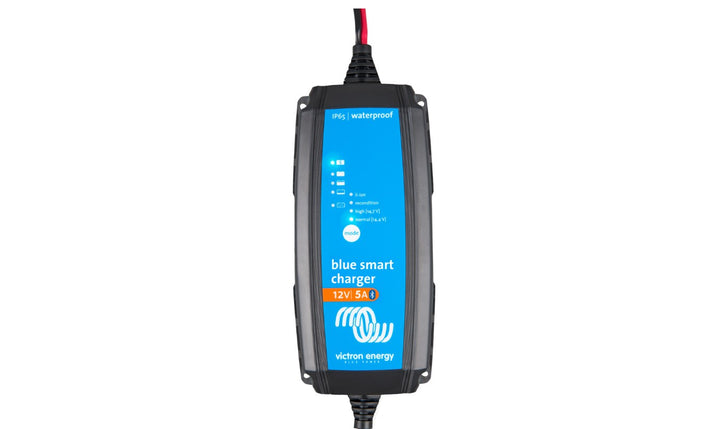

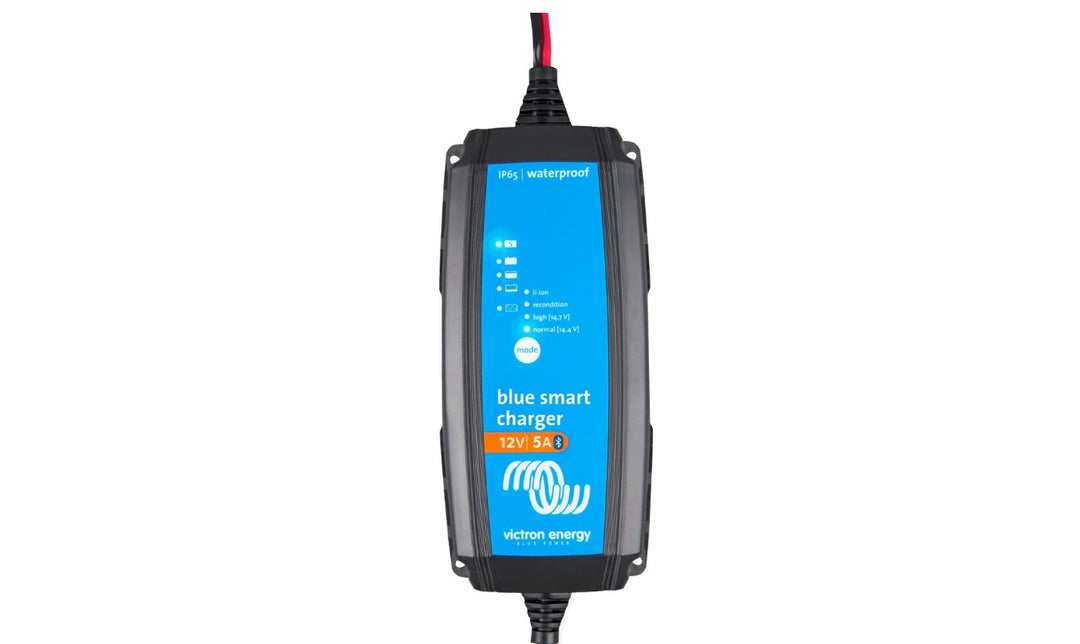

Blue Smart IP65 Charger
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. It is perfect for use in workshops and on motor vehicles such as (classic) cars, motorbikes, boats, and camper-vans.
Key Features
- Water, dust and chemical resistant
- Seven-step smart charging algorithm
- Recovers fully discharged ‘dead’ batteries
- Automatic power supply function
- Operates in severe cold: down to -30°C
- Battery life enhancing features
- Low power mode for smaller batteries
- Dedicated Li-ion battery mode
- Bluetooth Smart for setup, configuration, and monitoring
Smart Charging for Optimal Battery Health
The seven-step charging algorithm optimizes battery performance and extends battery life by precisely delivering the right amount of charge at every stage.
Recovery of Deeply-Discharged Batteries
Unlike many chargers, the Blue Smart IP65 can attempt to recharge deeply discharged batteries by gently applying a low current until the battery voltage is high enough for standard charging to begin.

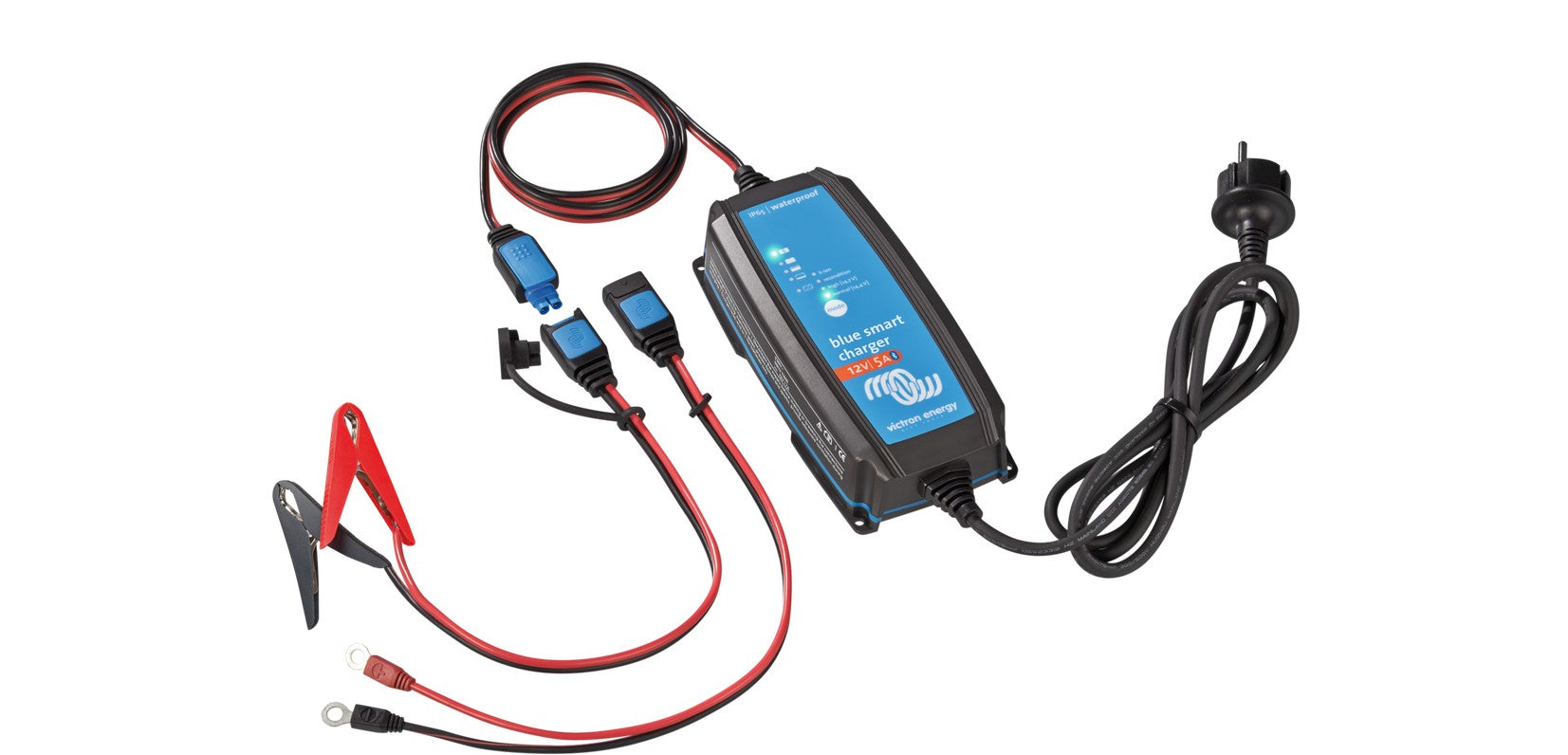

Easy Battery Connection
The charger comes with both crocodile clips and M8 eyelets for hassle-free connection. You can also leave it permanently connected if needed.
Monitor Your Battery Wirelessly
With built-in Bluetooth, you can check battery and charger status from your smartphone, tablet, or laptop using the VictronConnect app. All charger settings can also be adjusted via the app.
Included in the Box
- Clamps
- M8 eyelets
Technical Specifications
| Input Voltage Range | 100-130 VAC |
| Efficiency | 95% |
| Standby Power Consumption | 0.5 W |
| Charge Voltage (Absorption) | Normal: 28.8 V, High: 29.4 V, Li-ion: 28.4 V |
| Charge Voltage (Float) | Normal: 27.6 V, High: 27.6 V, Li-ion: 27.0 V |
| Charge Voltage (Storage) | Normal: 24.6 V, High: 26.4 V, Li-ion: 27.0 V |
| Charge Current | 5 A |
| Low Current Mode | 2 A |
| Temperature Compensation | 32 mV/°C (lead-acid only) |
| Power Supply Mode | Yes |
| Back Current Drain | 0.7 Ah/month (1 mA) |
| Protection Features | Reverse polarity, Output short circuit, Over temperature |
| Operating Temperature Range | -40°C to +60°C (full rated output up to 30°C) |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Battery Connection | Black and red cable (1.5 m) |
| 120V AC Connection | 1.8 m cable with US NEMA 1-15 plug |
| Protection Category | IP65 (splash and dust proof) |
| Weight | 1.9 kg |
| Dimensions (H x W x D) | 47 mm x 95 mm x 190 mm |
Compliance & Standards
- Safety: UL 1236, CSA C22.2, EN 60335-1, EN 60335-2-29
- Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
