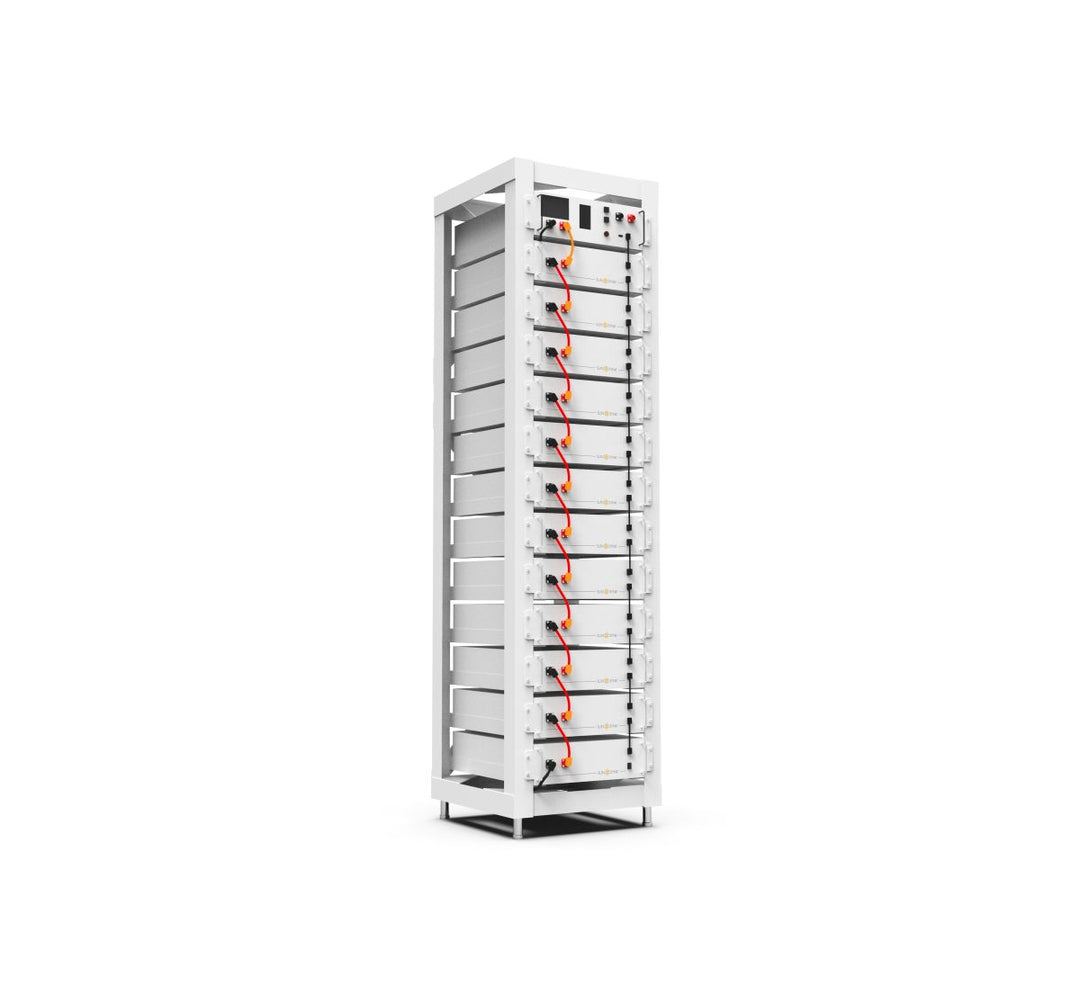

The Sunsynk High Voltage Battery Pack is designed for seamless integration, high reliability, and long service life. Each module has a capacity of 5.12 kWh, and the system supports up to 12 modules in series, providing a total capacity of 61.44 kWh. This makes it a powerful solution for large-scale energy storage installations.
Product Features
- 1C rated battery with continuous charge/discharge power of 61.44 kW
- 90% depth of discharge for maximum energy utilization
- Integrated intelligent touch screen interface
- Supports up to 12 modules in series (61.44 kWh)
- Scalable up to 16 stacks in parallel (up to 983.04 kWh)
- Rack-mount design for streamlined installation
- Includes a standard 10-year warranty
Technical Specifications
- Weight: 660 kg
- Battery type: Lithium-ion
- Nominal energy: 61,440 Wh
- Depth of discharge: 90%
- Voltage: 614 V
- Continuous discharge rate: 61,440 W
- Maximum discharge rate (5 minutes): 61,440 W
- Surge discharge rate (15 seconds): 61,440 W
- Maximum charge rate (5 minutes): 61,440 W
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
