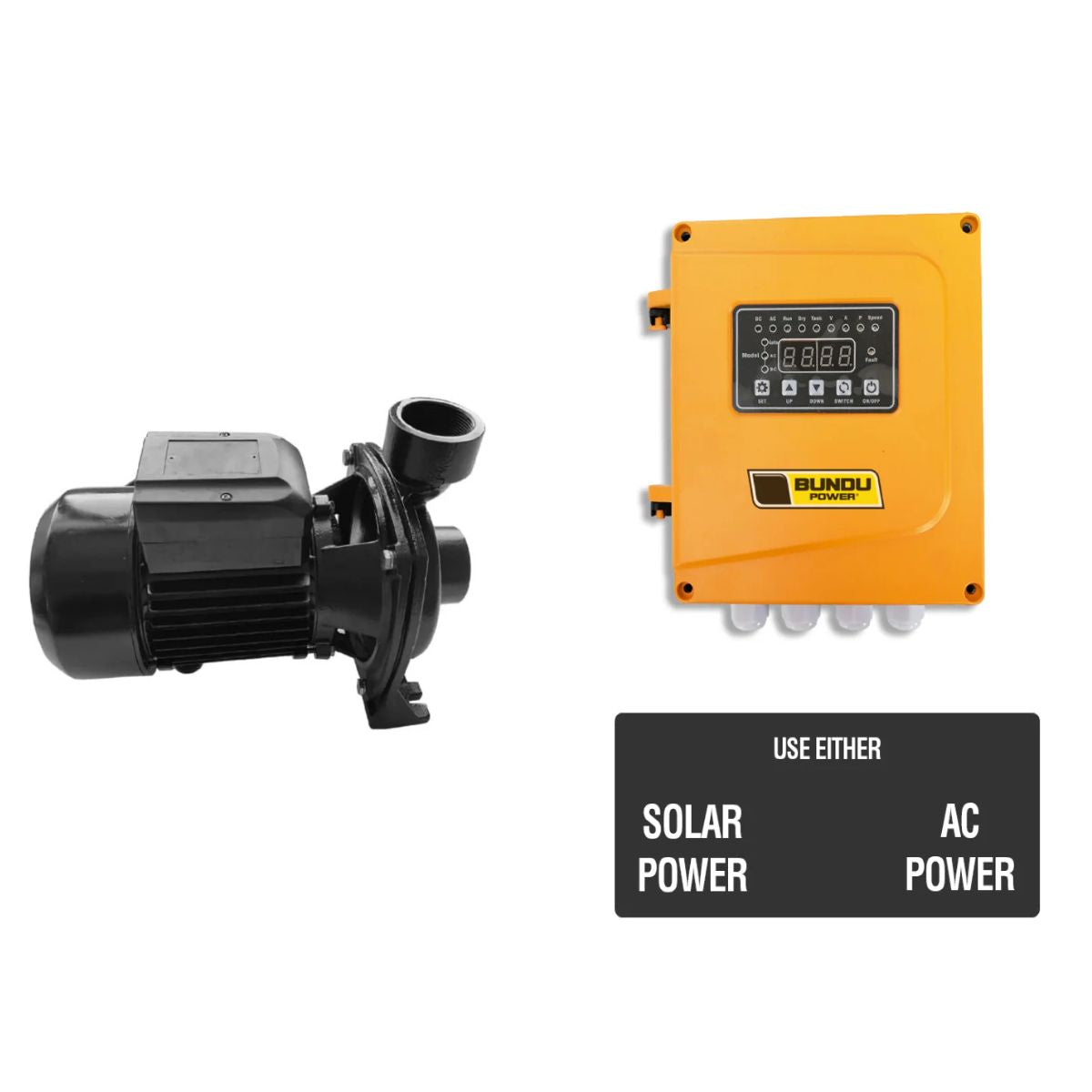

This pump is designed for reliable water transfer and general-purpose fluid movement. Equipped with a durable copper impeller, it delivers strong performance while maintaining long-term resistance to wear. The pump operates across a wide voltage range (60–450 V), making it suitable for environments with unstable or fluctuating electrical supply.
With an 800-watt motor, it provides a maximum flow rate of 5.5 m³/h (91 L/min), making it ideal for domestic, agricultural, or light industrial use. The unit can lift water up to a maximum head height of 35 meters and offers a maximum suction depth of 3 meters. Its 1" (25 mm) outlet ensures compatibility with standard piping systems.
Overall, this pump is a versatile and efficient solution for water circulation, irrigation, supply systems, and general fluid transfer applications.
Hybrid Pump Specifications
| Model | CPM146-800 |
|---|---|
| Pump Type | Hybrid (AC & DC Input) |
| Rec. Panels | 3 × 550W |
| Power | 800W |
| Min Power Req. | 1200W |
| Max. Head | 35 m |
| Max. Flow Rate | 5.5 m³/h |
| Max. Flow Rate | 5,500 l/h |
| Outlet Size | 1 inch |
| DC Voltage Range | 60 – 450 V |
| AC Voltage Range | 150 – 240 V |
| Controller Type | External |
| Controller | Auto Restart on AC or DC on Loss |
| Certification | CE, TUV SUD, UL, ISO9001, ISO 14001 |
| Warranty | 12 Months |
The pressure pump requires the water to be above or at the same level as the inlet. The pump is unable to pull the water from below it. The "HEAD" rating is how high it can push the water upwards on the outlet side.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
