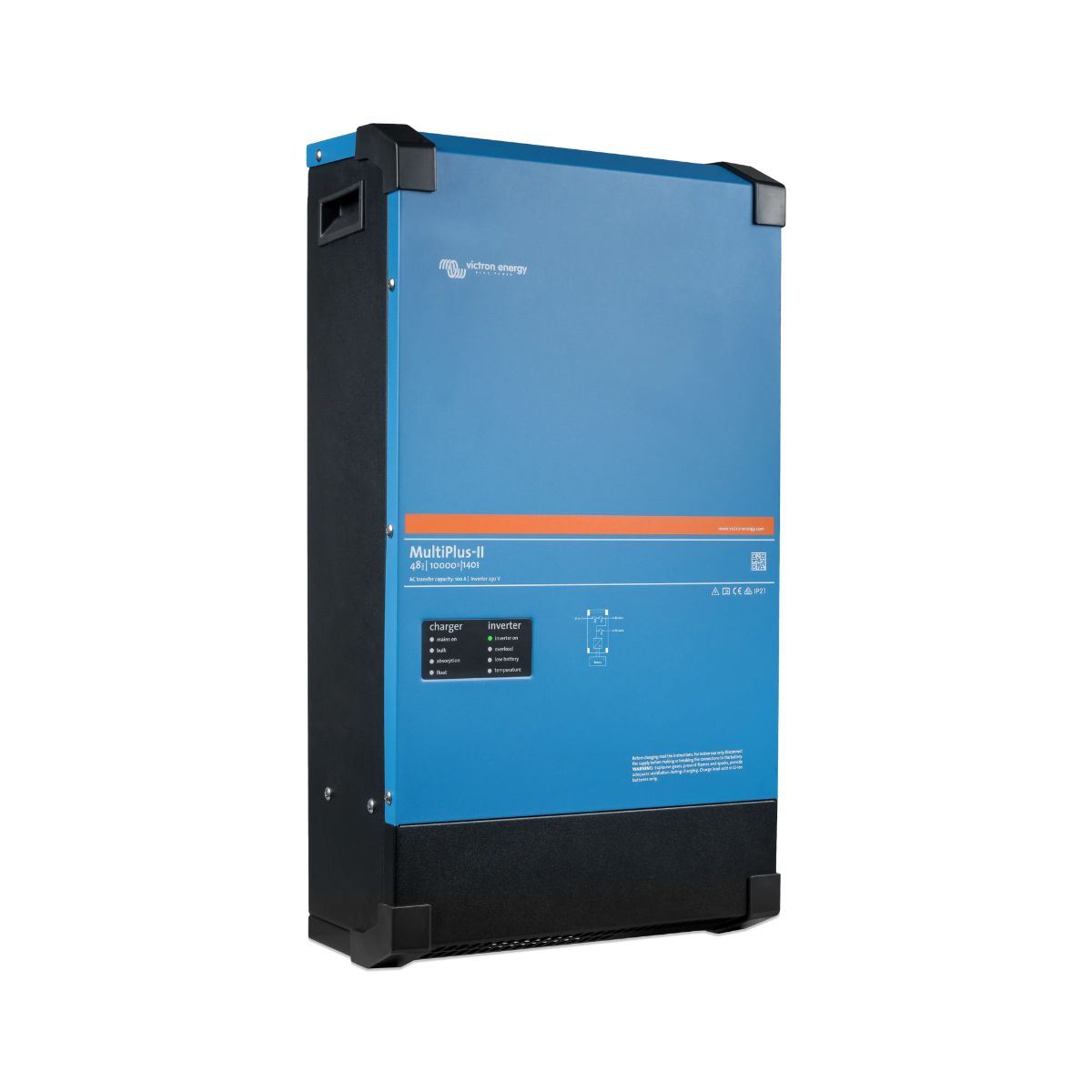

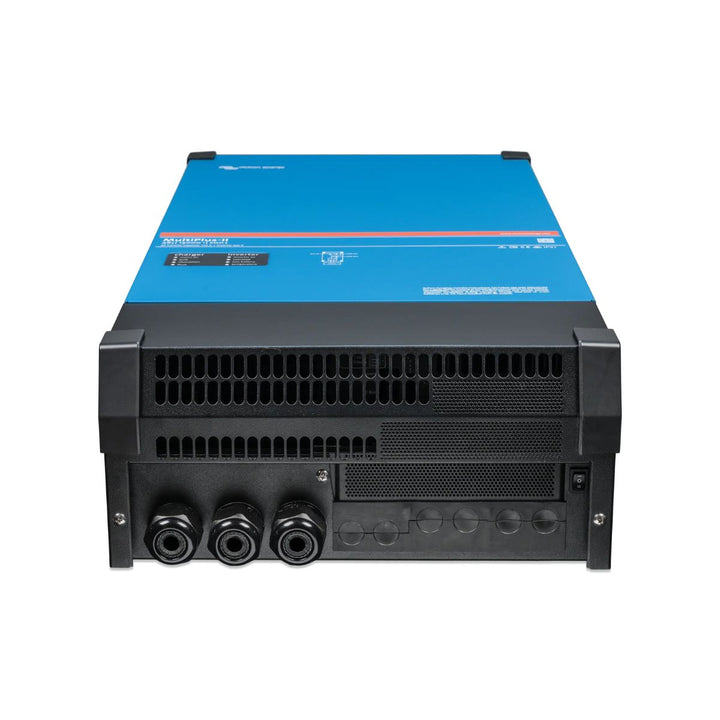

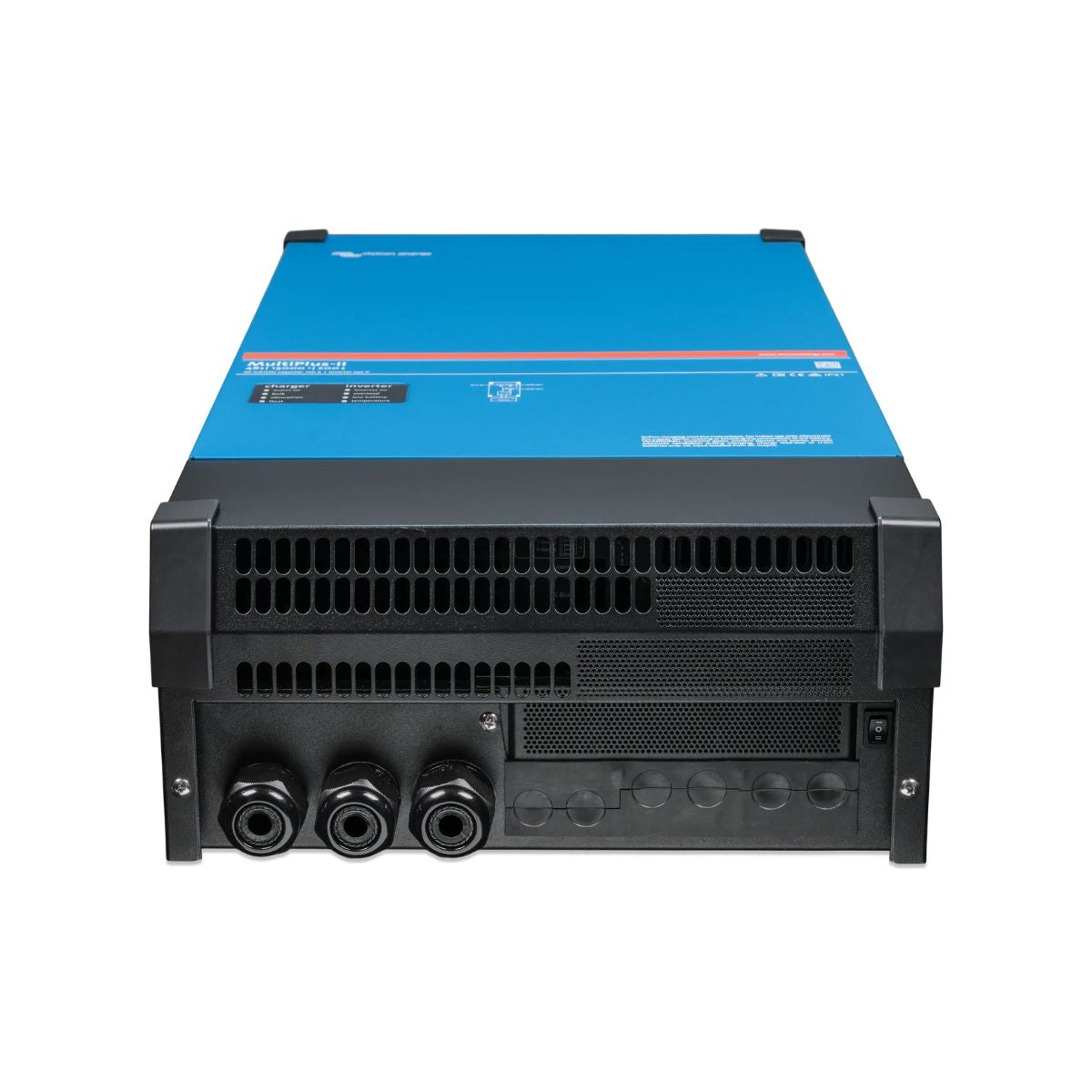

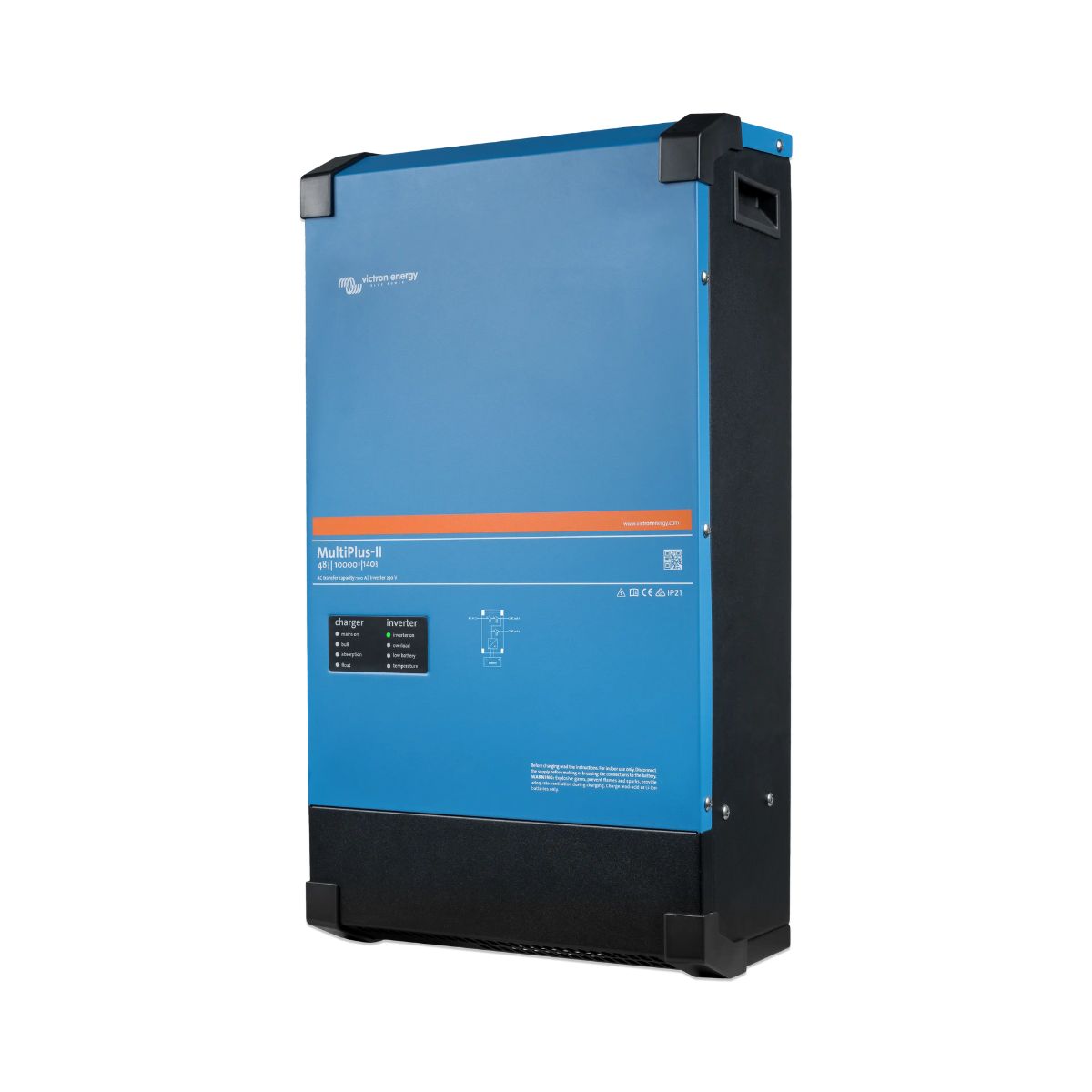

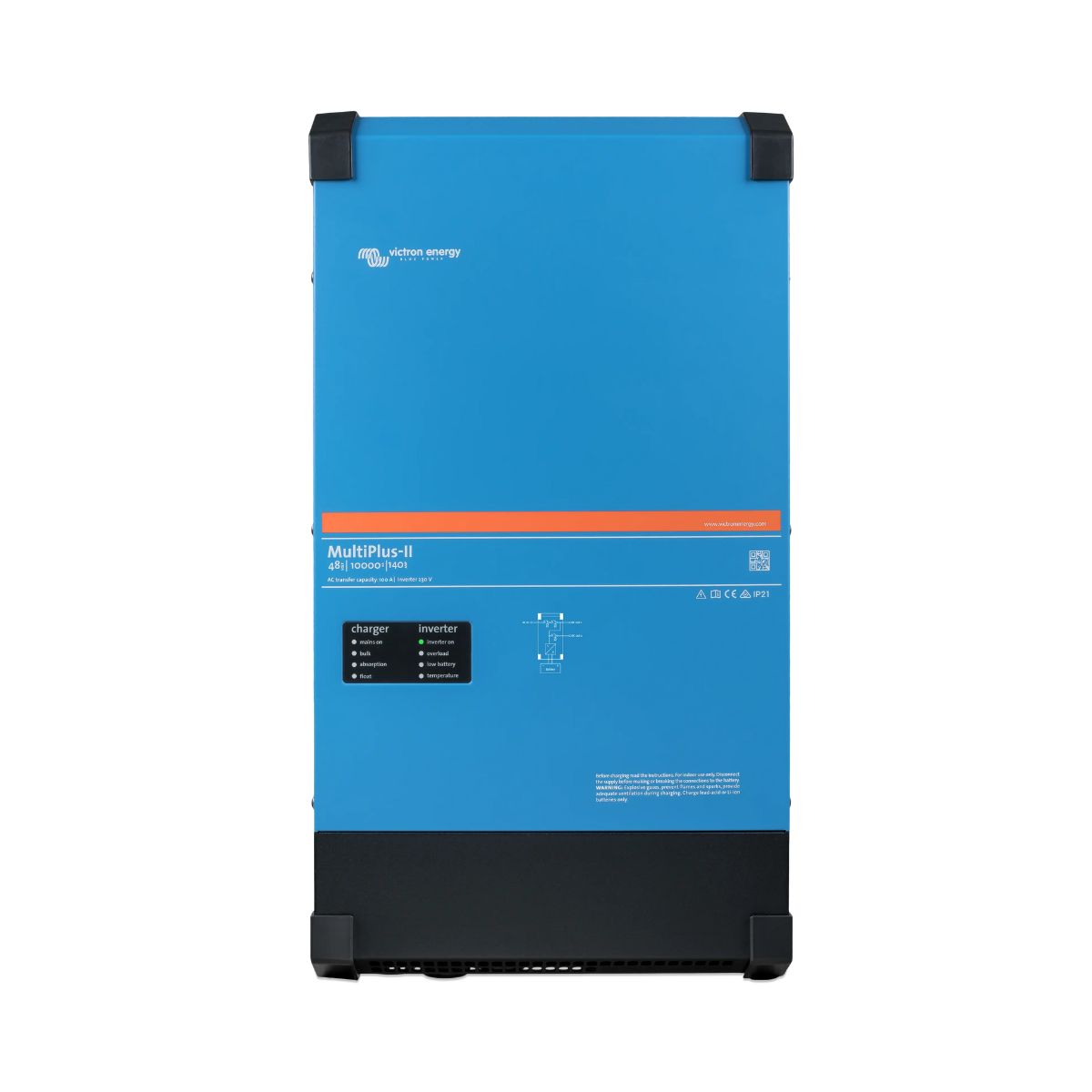

The Victron MultiPlus-II is a high-performance inverter/charger designed for advanced energy storage systems (ESS), off-grid installations, marine applications, and commercial power solutions. It combines a powerful pure sine wave inverter, an intelligent battery charger, and a fast automatic transfer switch in one robust unit.
Designed for both grid-connected and off-grid environments, the MultiPlus-II ensures seamless power continuity during outages by supplying critical loads without interruption. Integrated PowerControl and PowerAssist technology intelligently manage limited grid or generator power while supplementing peak demand using battery energy.
The MultiPlus-II integrates seamlessly with Victron GX devices and the VRM online portal, allowing remote monitoring, configuration, and system optimization. Its ability to operate in parallel or three-phase configurations makes it a scalable, future-ready solution for residential, commercial, and industrial energy systems.
Key Features
- High-efficiency pure sine wave inverter
- Integrated high-capacity battery charger
- UPS-level seamless power transfer for critical loads
- PowerControl to prevent grid or generator overload
- PowerAssist boosts limited AC supply with battery power
- Suitable for grid-connected, off-grid, and hybrid ESS systems
- Parallel and three-phase operation capability
- Dual AC outputs for critical and non-critical loads
- Built-in anti-islanding protection
- Compatible with Victron GX devices and VRM monitoring
- Industrial-grade design for demanding environments
Technical Specifications – Victron MultiPlus-II 48/10000/140-100
General
| Model |
MultiPlus-II 48/10000/140-100 |
| Inverter Type |
Grid-parallel inverter / charger |
| DC System Voltage |
48 V |
| Cooling |
Forced air cooling |
| Protection Class |
IP22 |
| Operating Temperature |
-40°C to +65°C |
| Maximum Humidity |
95% (non-condensing) |
| Maximum Altitude |
2000 m |
| Dimensions (H × W × D) |
677 × 363 × 206 mm |
| Weight |
49 kg |
Inverter Output
| AC Output Voltage |
230 V AC ±2% |
| Output Frequency |
50 Hz ±0.1% (adjustable to 60 Hz) |
| Continuous Output Power (25°C) |
10,000 VA / 8,000 W |
| Continuous Output Power (40°C) |
7,000 W |
| Continuous Output Power (65°C) |
6,000 W |
| Peak Power |
18,000 W |
| Maximum Efficiency |
96% |
| Zero Load Power Consumption |
38 W |
| Zero Load (AES Mode) |
27 W |
| Zero Load (Search Mode) |
4 W |
AC Input / Transfer
| AC Input Voltage Range |
187 – 265 V AC |
| AC Input Frequency |
45 – 65 Hz |
| Maximum AC Input Current |
100 A |
| Transfer Switch Rating |
100 A |
| Transfer Time |
< 20 ms |
Battery Charger
| Battery Voltage |
48 V |
| Maximum Charge Current |
140 A |
| Absorption Voltage |
57.6 V |
| Float Voltage |
55.2 V |
| Storage Voltage |
52.8 V |
| Battery Temperature Sensor |
Yes |
AC Outputs
| Primary Output |
Continuous, no-break supply |
| Secondary Output |
Active only when AC input is available |
Communication & Protection
| Communication Interface |
VE.Bus |
| Remote On/Off Control |
Yes |
| Programmable Relay |
Yes |
| Protection Features |
Output short-circuit protection
Overload protection
Battery over/under voltage protection
Over-temperature protection
AC input protection
Anti-islanding protection |
