Please note Freedom batteries are made to order and have a lead time of 2 - 3 weeks to be manufactured.

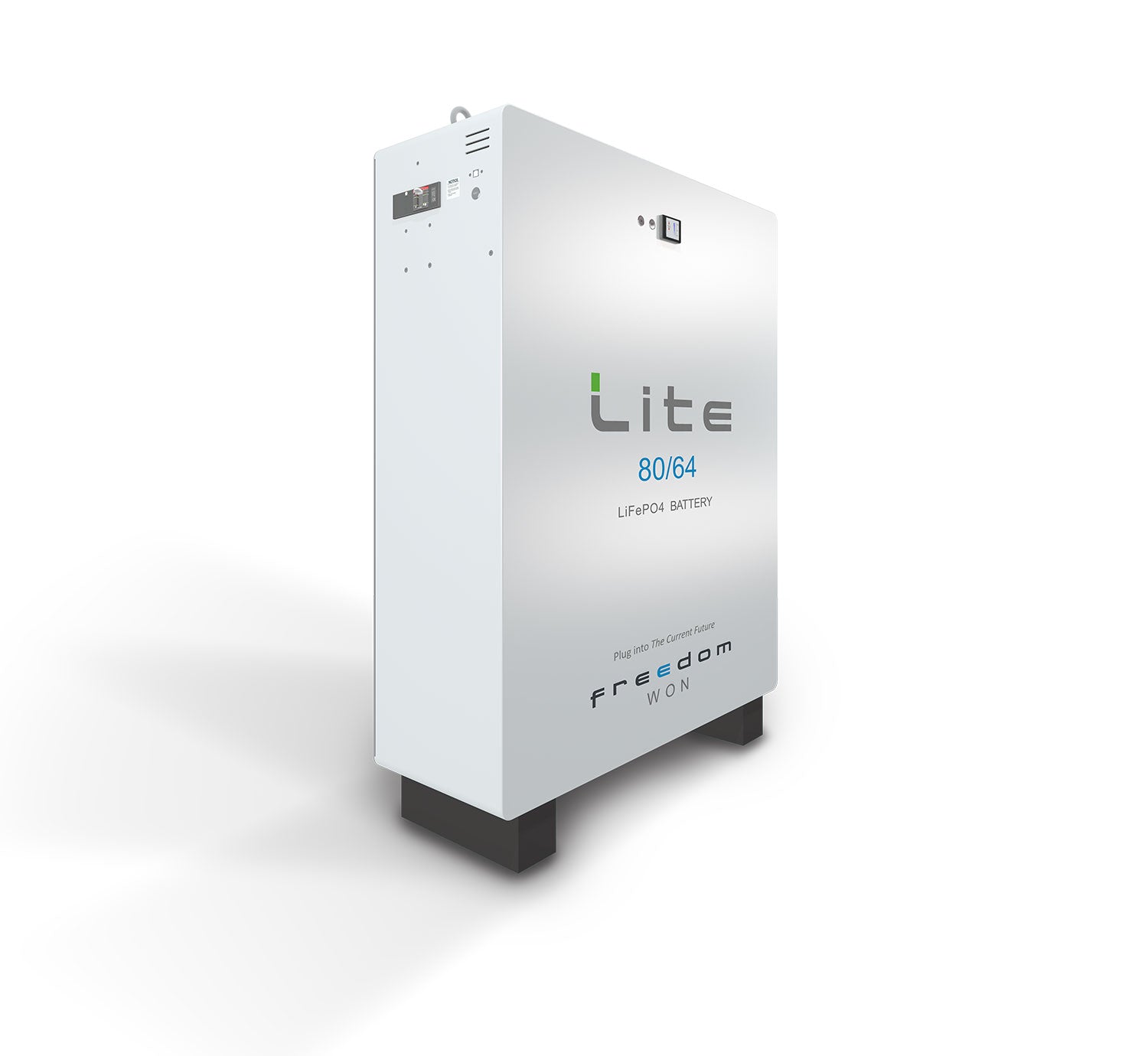

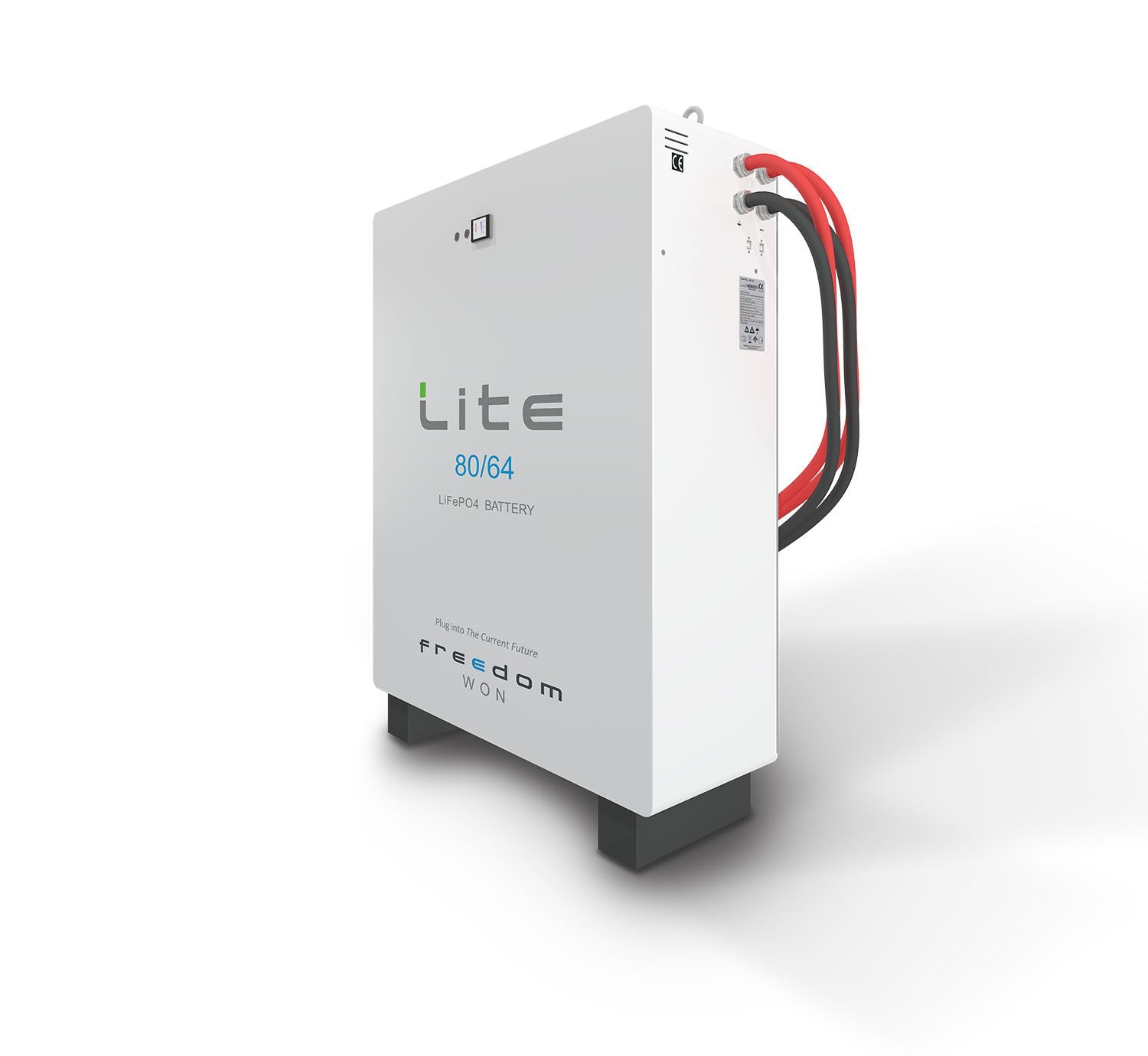

This Freedom Won Lite Business HV LiFePO4 battery is the perfect high quality battery for all your large commercial and industrial solar solutions.
Weight: 637 kg
Battery Type: Lithium Ion
Nominal Energy: 80000 Wh
Depth of discharge: 90.00 %
Voltage: 410 V
Continuous Discharge Rate (Normal Use): 80000 W
Maximum Discharge Rate (5 Minutes): 102000 W
Surge Discharge Rate (15 Seconds): 102000 W
Maximum Charge Rate (5 Minutes): 82000 W
Max Energy [kWh]: 80
Energy, 90% Doo [kWh]: 72
Energy, 80% DOD [kWh]: 64
Nominal Voltage [V] (2): 410
MaxJMin Operating Voltage [V]: 454/365
Max/Cont Discharge Current [A]:250/200
Max/Cont Discharge Power [kW]:102/80
Max and Cont Charge Current [A]: 200
Weight [kg]: 637
Dimensions on or against wall excluding protuberances such as glands and breaker handle Height x Width x Depth (mm): 1451 X 668 X 566DC Connection — Fly Leads, [no. per electrode) 1 X 50mm2
External Interfacing: Can Bus
Enclosure: Aluminium — powder coated white, IP54 enclosure rating, Home — wall or floor mount, Business — floor mount
Protection: Shunt Trip Circuit Breaker sized to suit max current. can be tripped by BMS if critical fault incl. overcurrent, cell under and over voltage, temperature, weak cell detection, minimum SOC plug for programming.
Human Interface: State Of Charge Display (O to 100%), Error light, Error Reset Button, USB Plug for Programming
Service Life: 10 year (or 4000 cycles) warranty for 80% average DOD. 13-15 yrs (>5 500 cycles) expected life at 70% DOD, 15-20 years at 50% DOD (>7 000 cycles)
NOTES TO SPECIFICATION SHEET:
- DOD = Depth of Discharge, recommended up to average daily 80% DOD for extended life, 50% average DOD for ultra-long life. Max allowable DOD is 90%.
- Voltage suitable for various high DC voltage inverters. Please enquire with Freedom Won for pairing support.
- Fly Leads 1 long (15/12; 20/16; 30/24 HV). Fly Leads 4m long (40/32; 60/48; 80/64 HV). power cable Red Positive, Black Negative, conductors in table refer to one electrode i.e. per positive and negative connections. Longer cables available on request. Multiples of 6mm2 DC cables available on request for inverters fitted with MC4 type connectors for the battery input.
- End of Life (EOL) defined as cell dropping to 60% of Beginning of Life (BOL) capacity for expected life and as 70% of BOL capacity for warranty
