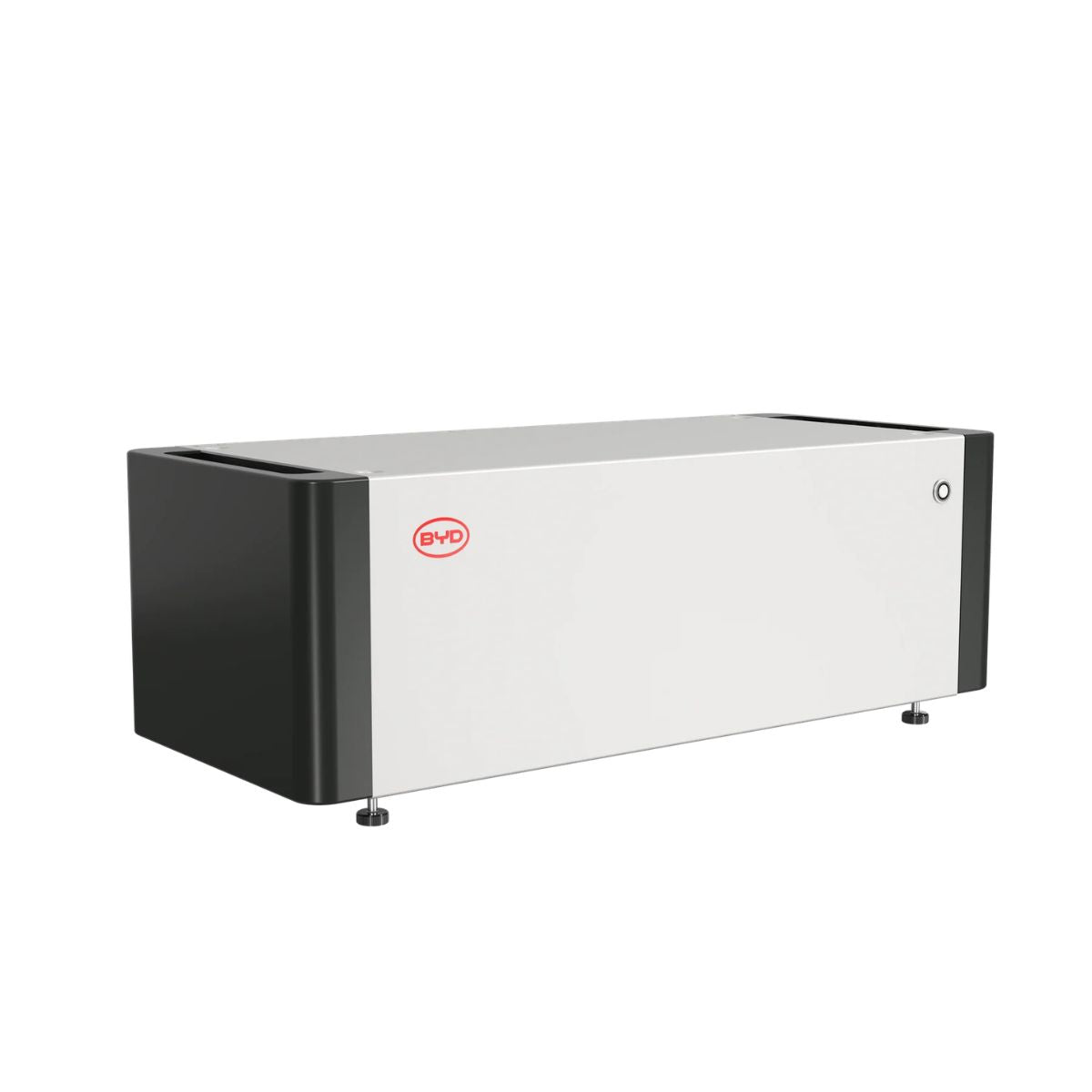

The BYD Battery-Box LV5.0 is a next-generation Lithium Iron Phosphate (LFP) energy storage system designed for scalable residential and light commercial applications. Developed by a global leader with over 20 years of LFP battery expertise, this modular system delivers safe, reliable, and efficient energy storage for on-grid, off-grid, and backup power solutions.
Featuring a compact floor-standing design, the LV5.0 offers 100% usable capacity and exceptional efficiency, making it an ideal choice for modern energy management systems.
Key Features
Safety First
Built using BYD’s in-house developed LFP (Lithium Iron Phosphate) cells, a proven chemistry widely used in electric vehicles worldwide for its superior safety and thermal stability.
Modular & Scalable Design

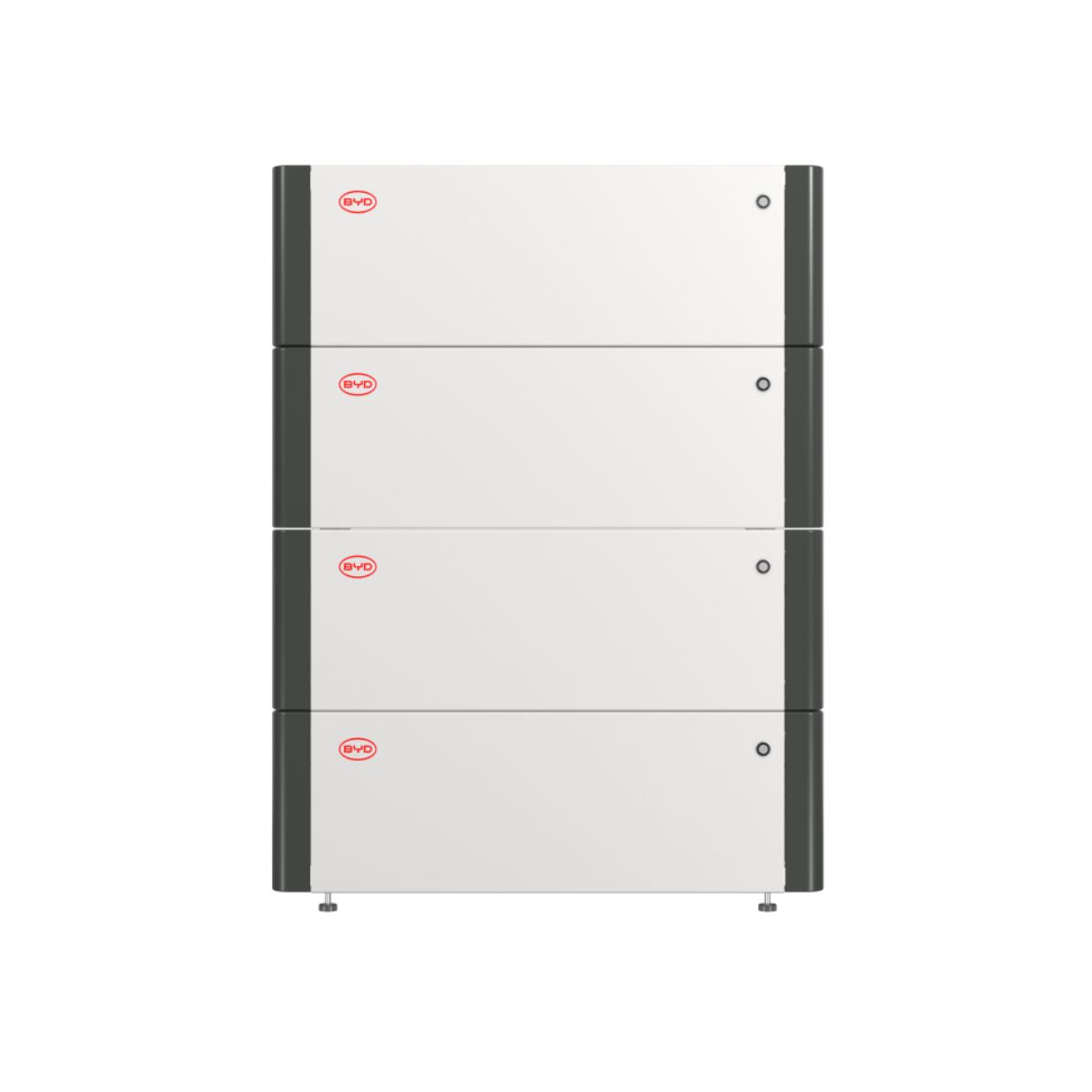

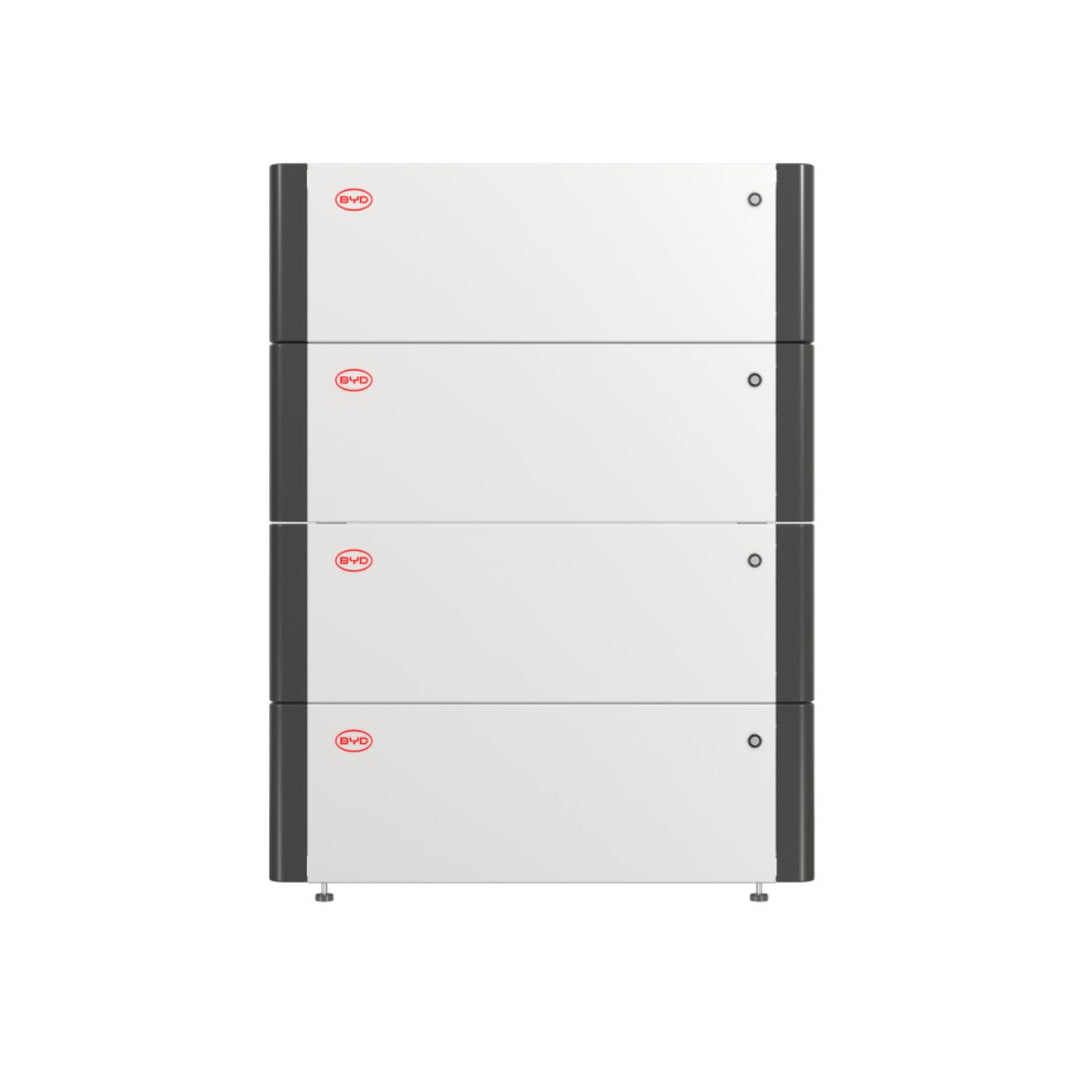

Each unit starts at 5 kWh and can be expanded to large-scale systems up to 160 kWh. Additional modules can be added at any time for flexible system growth.
High Efficiency Performance
Delivers 100% usable energy with a round-trip efficiency of ≥ 95%, ensuring minimal energy loss during charging and discharging cycles.
Smart Energy Management
Integrated monitoring and diagnostic capabilities with remote access support, including Over-the-Air (OTA) updates for system optimisation.
One-Button System Integration
Simplified commissioning with automatic configuration for seamless compatibility with leading inverter brands.
Proven Global Reliability
Manufactured by BYD, with more than 1 million systems deployed across 100+ countries since 2002.
Technical Specifications
Performance
| Usable Energy |
5 kWh |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
40 – 57.6 V |
| Max Charge/Discharge Current |
70 A |
| Peak Charge/Discharge Current |
200 A (10 seconds) |
| Round-trip Efficiency |
≥ 95% |
Physical & Environmental
| Dimensions (H × W × D) |
195 × 595 × 255 mm |
| Weight |
42 kg |
| Installation Type |
Floor-standing |
| Enclosure Protection |
IP20 |
| Operating Temperature (Charge) |
0°C to 50°C |
| Operating Temperature (Discharge) |
-20°C to 50°C |
| Storage Humidity |
5% – 95% (non-condensing) |
| Maximum Altitude |
< 4000 m |
Connectivity & Compatibility
| Communication Interfaces |
CAN / RS485 / Bluetooth / Wi-Fi |
| Expandability |
Up to 32 units in parallel (160 kWh total) |
| Compatible Inverters |
Victron Energy, Deye, Solis, SMA, Fronius, Phocos, GoodWe, Sungrow |
| Certifications |
CE / IEC62619 / UN38.3 |
