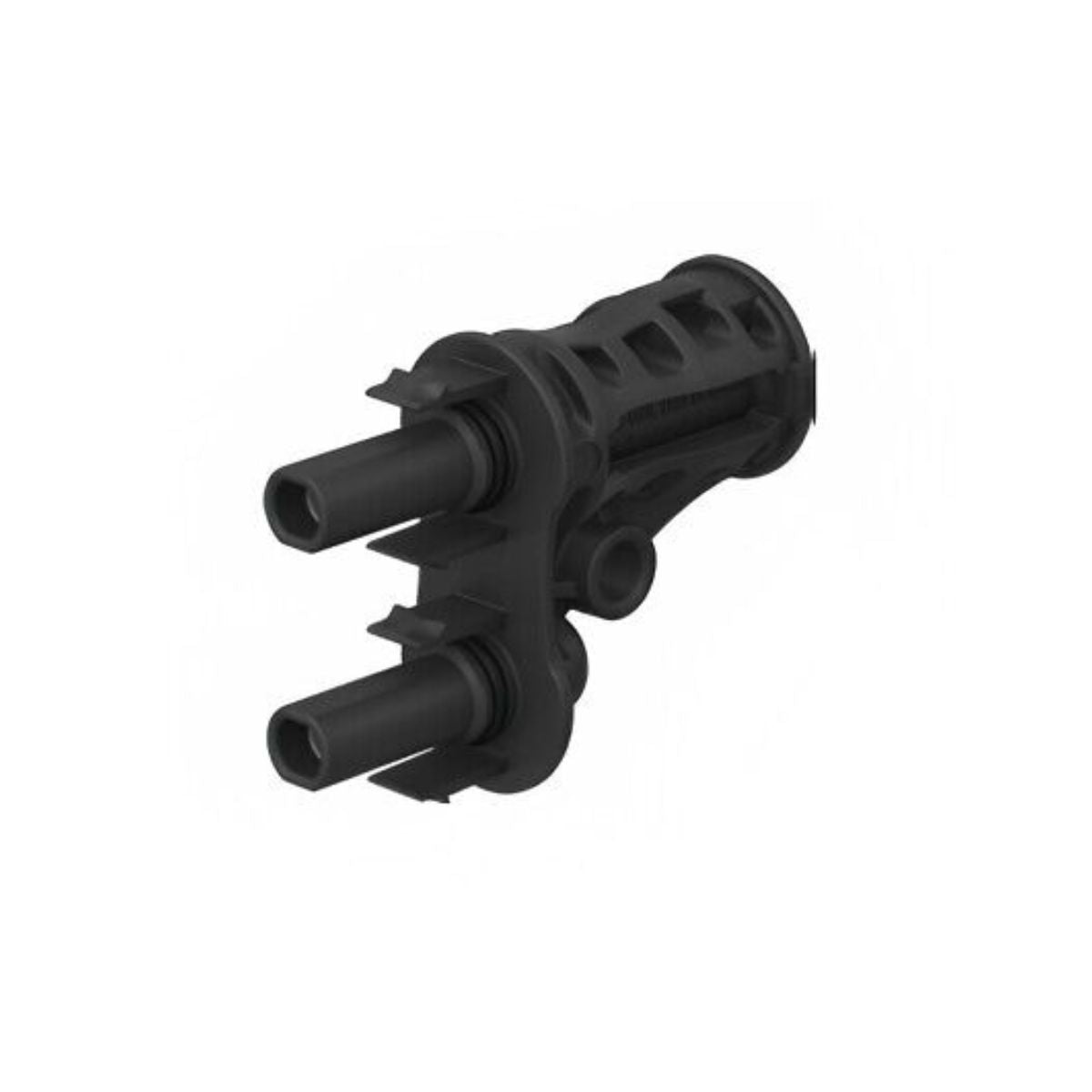

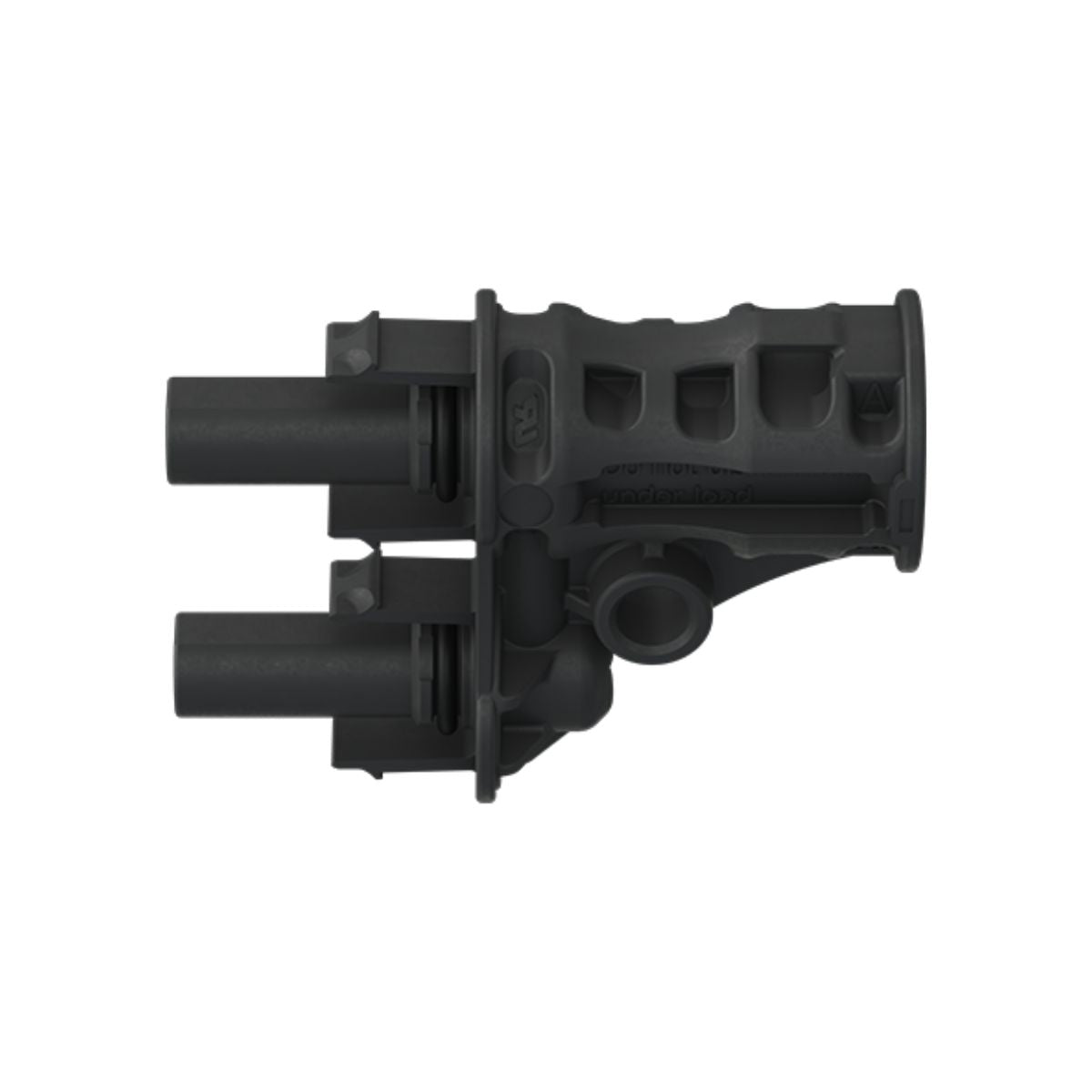

The MC4-Evo 2 Branch Connector is a dual-certified DC 1500 V branch connector, designed for reliable and safe photovoltaic (PV) system installations. With plug-and-play installation, compatibility with MC4 and MC4-Evo 2 connectors, and robust environmental resistance, it is an ideal solution for modern solar applications.
Features
- Plug-and-play design: No crimping or torqueing required.
- Compatibility: Mates with original Stäubli MC4 and MC4-Evo 2 connectors.
- MULTILAM contact technology: Ensures consistently low contact resistance and performance loss.
- Durability: Resistant to salt mist spray, UV exposure, and extreme climates.
Technical Specifications
- Rated Voltage: DC 1500 V (IEC 62852:2014+AMD1:2020), DC 1500 V (UL 6703)
- Rated Current (IEC): 60A
- Connector Type: MC4-Evo 2 Branch Connector
- Operating Temperature: -40 °C to +85 °C
- Test Current: 60 A (IEC)
- Voltage Rating: 1000V
- IP rating: IP65 / IP68 (mated),
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
