Geyserwise Max Geyser Controller

Geyserwise Max Geyser Controller

Geyserwise Max Geyser Controller

Regular price R 2,365.00 incl. VAT Sale price R 1,891.95 incl. VATSave R 473.05
R 1,64517 excl. VAT
incl. VAT/
Style


Tax included. Shipping calculated at checkout.
  • Secure online payments

This intelligent controller is designed to manage your HOT WATER needs to your best advantage from both an energy and economical point of view. It uses professional techniques and the control system is managed by a computer micro processor.

Use as a geyser timer
Clear display of water temperature, time, day, heating mode and malfunction conditions.
Auto or manual heating.
Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E1 to E7.
Electronic thermostat with mechanical thermal cut-out at 90°C.
Please note the cut-out temperature for solar systems expected to reach temperatures above this temperature.

Use as timer on a thermosyphon solar system
Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
Auto or manual heating.
Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E1 to E7.
Electronic thermostat with mechanical thermal cut-out at 90°C.

Use as timer and differential control on pumped solar system
Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
Auto or manual heating.
Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E1 to E9.
Electronic thermostat with mechanical thermal cut-out at 90°C.
Differential controller 12V and 220V systems.
Please note the cut-out temperature for systems expected to reach temperatures above this temperature.

Technical Parameters :
Operating voltage 230VAC / 50HZ.
Main Relay contact rating 30AMP (Max 4KW).
Secondary relays pump and solenoid 5Amp.
Operating voltage range 160V – 250V AC.
Earth leakage protection at 25MA action time = 0,1 second.
Temperature display range 0 - 99°C (“-5” when below -5°C “EA” when above 99°C).
High temperature warning above 84°C.
Temperature setting ranges 30 - 65°C (heating water electrically).
Heat failure – when increase at a rate of less than 4°C per hour.
Electronic thermostat with mechanical thermal cut-out at 90°C.
Dry heat detection – empty cylinder.
Temperature tolerance ± 2%.
Temperature differential setting 1°C.
Switching differential 6°C.
2nd temperature probe for solar.
Solar differential 7°C.
Temperature probe failure detection for both collector and tank.
Temperature probe range for geyser is -30 to + 130°C.
Temperature probe range for collector is -30 to + 260°C.
Isolate both L + N when in off state.
Collector antifreeze protection at 5°C.

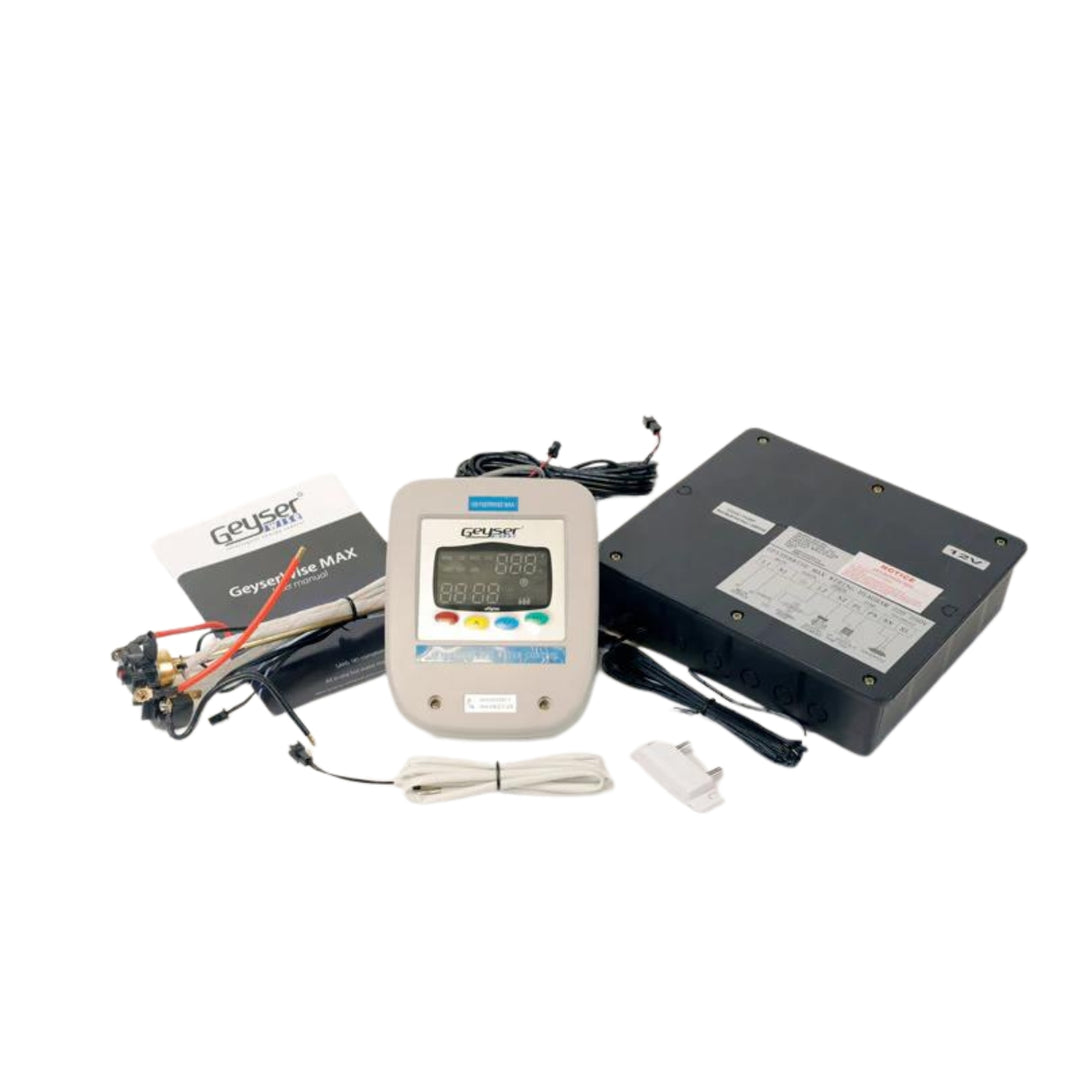

Package Contents:
1 x Control Box
1 x Display Unit.
1 x Collector temperature sensor and extension cable.
1 x Water geyser sensor.
1 x Instruction Manual.

Please note that stock availability is subject to prior sales. Prices exclude delivery.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
