Mechanical Specifications

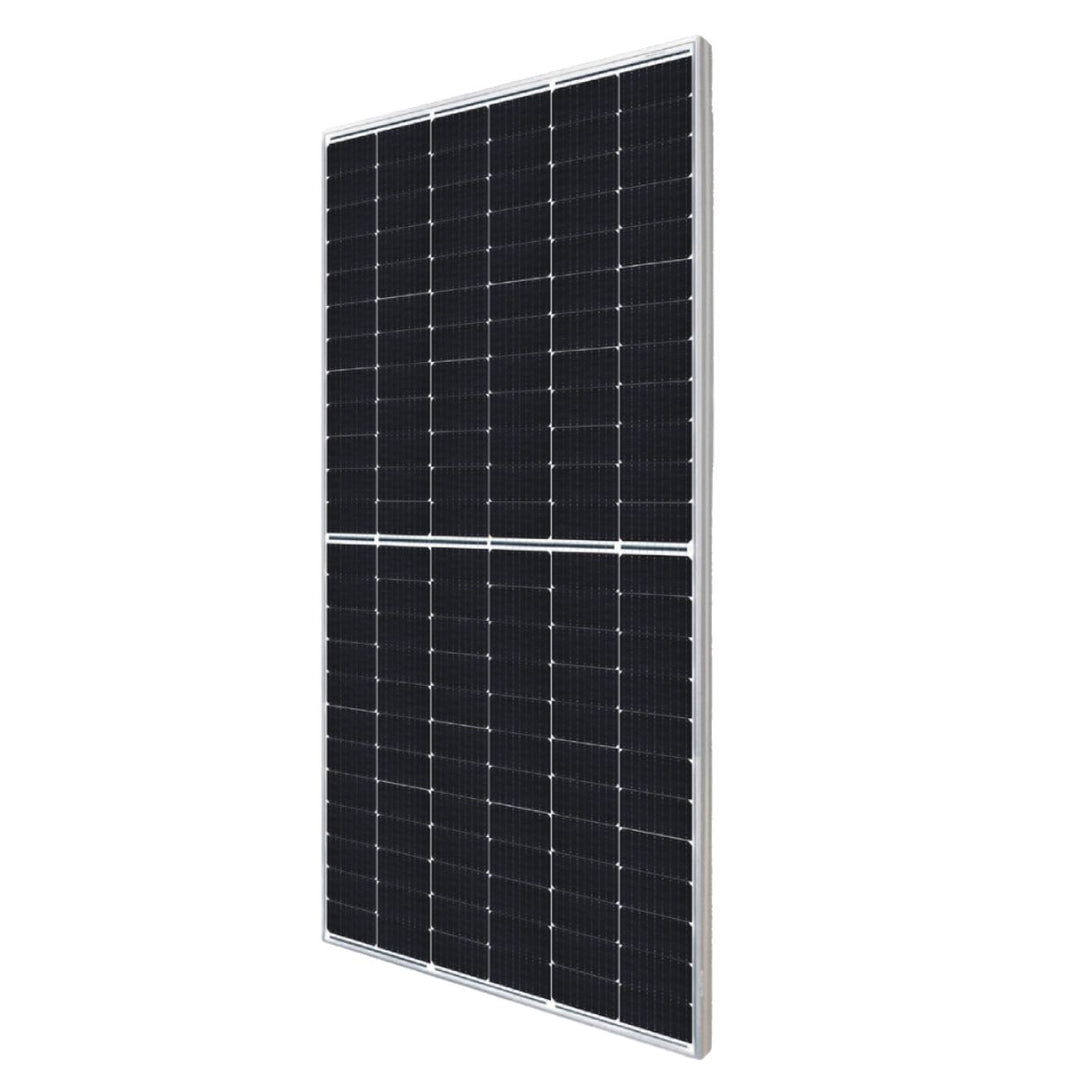

• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 × (12 × 6)]
• Dimensions: 2254 × 1135 × 35 mm
• Weight: 29.0 kg
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy
• Junction Box: IP68, 3 bypass diodes
• Cable: 4 mm² (IEC), 12 AWG (UL)
• Cable Length: 400 mm (15.7 in) (+) / 280 mm (11.0 in) (−) or custom
• Connector Options: T4 series, H4 UTX, or MC4-EVO2

Electrical Data STC

• Model: CS6W-540MS
• Nominal Max. Power (Pmax): 540 W
• Operating Voltage (Vmp): 41.0 V
• Operating Current (Imp): 13.18 A
• Open Circuit Voltage (Voc): 49.2 V
• Short Circuit Current (Isc): 13.9 A
• Module Efficiency: 21.1%
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Fire Rating: Type 1 (UL 61730) / Class C (IEC 61730)
• Max Series Fuse Rating: 25 A
• Application Class: Class A
• Power Tolerance: 0 ~ +10 W

Electrical Data NMOT*

• Model: CS6W-540MS
• Nominal Max. Power (Pmax): 403 W
• Operating Voltage (Vmp): 38.2 V
• Operating Current (Imp): 10.55 A
• Open Circuit Voltage (Voc): 46.3 V
• Short Circuit Current (Isc): 11.21 A

*NMOT: Nominal Module Operating Temperature

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
