Product Overview
The Victron Phoenix VE.Direct 1.2kVA Inverter is a pure sine wave inverter designed to convert 12V, 24V or 48V DC battery power into reliable AC power for suitable domestic equipment, tools and small backup or off-grid loads. It is a practical choice for installers and users who need a compact inverter for battery-based power systems without requiring an inverter-charger.
With VE.Direct communication, configurable battery protection settings and ECO mode, this inverter gives users useful control over monitoring, standby consumption and system behaviour. It is available in 12V, 24V and 48V variants.
Key Features
-
1.2kVA inverter rating: Provides 1200VA continuous inverter capacity for suitable AC loads within the unit’s rated limits.
-
1000 W continuous output at 25 °C: Supports up to 1000 W continuous output at 25 °C and 850 W at 40 °C, according to the Victron datasheet.
-
Pure sine wave output: Designed for domestic equipment requiring 230V or 120V AC, depending on the exact model configuration supplied.
-
High start-up power: Helps start demanding loads such as power converters for LED lamps, halogen lamps and electric tools, within the inverter’s limits.
-

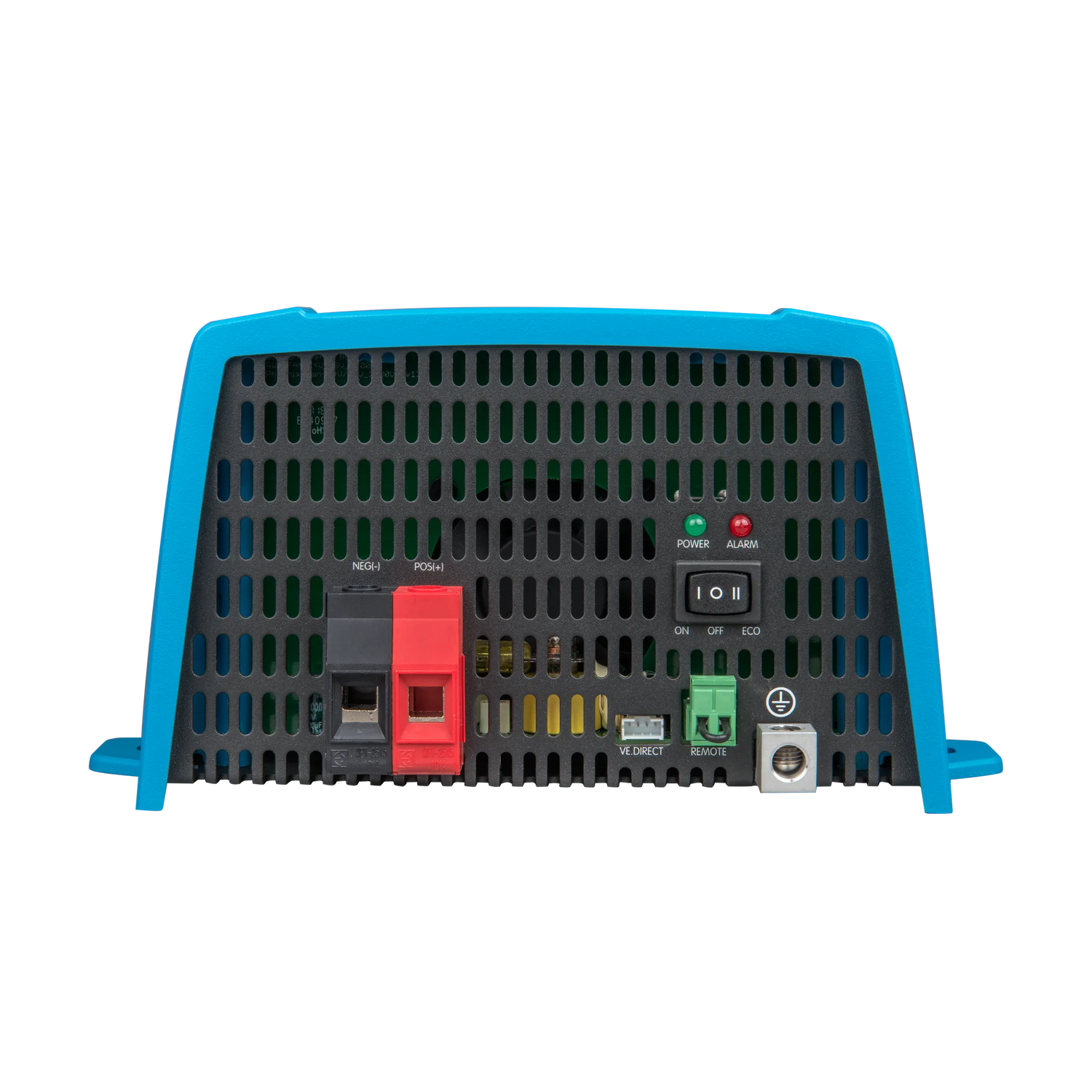

VE.Direct communication port: Allows configuration and monitoring through compatible Victron accessories such as a VE.Direct to USB interface cable or VE.Direct Bluetooth Smart dongle, sold separately.
-
Configurable settings: Supports adjustment of low battery alarm, low battery cut-off and restart levels, dynamic cut-off, output voltage, frequency and ECO mode behaviour.
-
ECO mode: Switches the inverter to standby when the load drops below a set value, helping reduce idle consumption in suitable systems.
-
Built-in protection: Includes protection against output short circuit, overload, high or low battery voltage, high temperature and excessive DC ripple.
-
Remote on/off support: A remote on/off switch can be connected for convenient system control.
Applications
- Small off-grid and backup power systems
- Battery-based power for homes, cabins, farms and workshops
- Camping, caravan, vehicle and marine electrical systems
- Running suitable AC tools, electronics and small appliances from a DC battery bank
- Installations where configurable battery protection and low standby consumption are useful
Why Choose This Product?
The Victron Phoenix VE.Direct 1.2kVA Inverter offers a strong balance of output capacity, configurability and compact installation. Its VE.Direct interface makes it easier to configure and monitor than a basic standalone inverter, while ECO mode and built-in protection features help support efficient, practical use in small off-grid and backup systems.
Important Notes
- Select the correct 12V, 24V or 48V variant to match the battery bank voltage. Do not mix inverter voltage and battery voltage.
- VE.Direct accessories such as the VE.Direct to USB interface cable and VE.Direct Bluetooth Smart dongle are referenced by Victron as compatible connection options, but are not confirmed as included with the inverter.

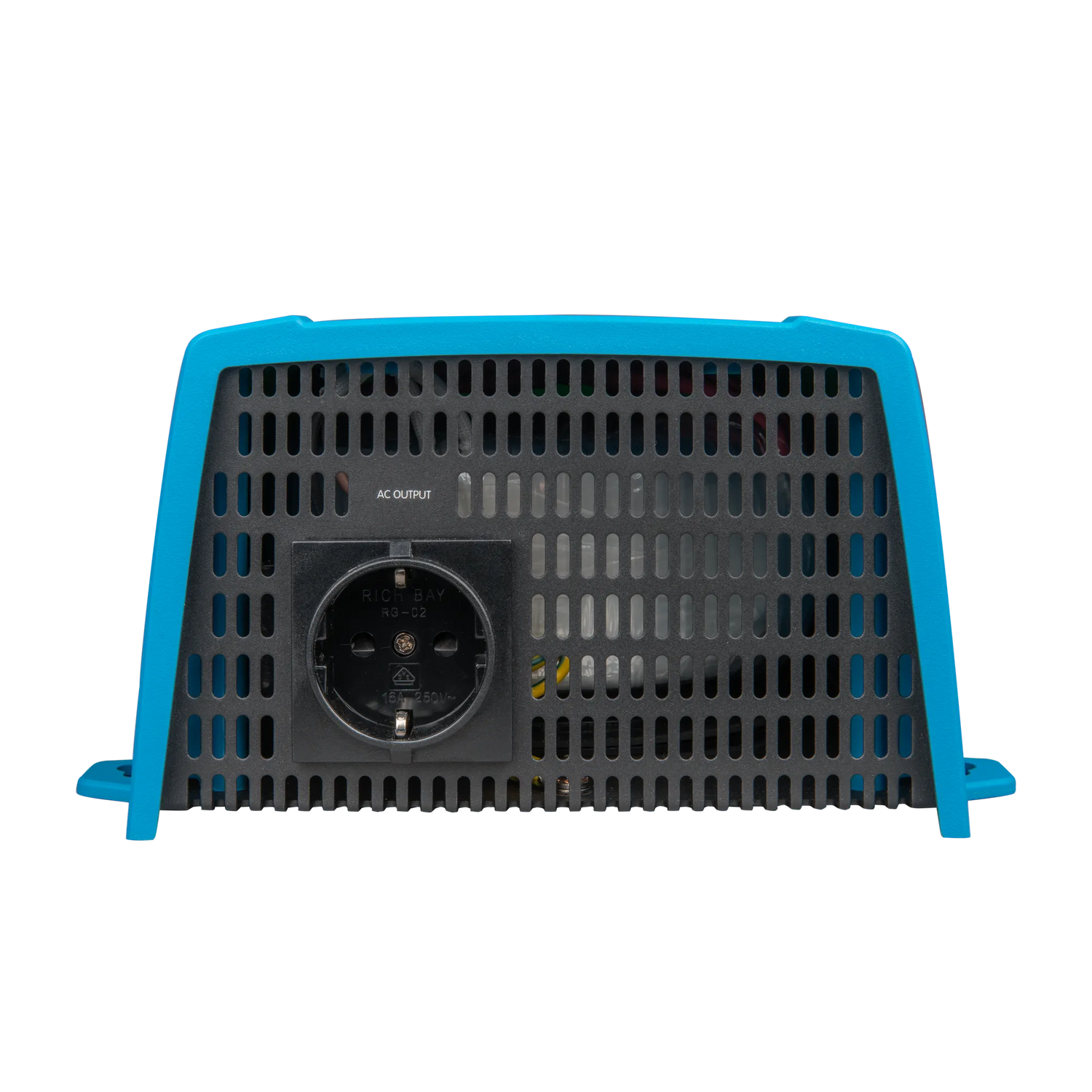

- Final AC outlet type depends on the exact model supplied. Confirm the outlet configuration before purchase if a specific plug or socket format is required.
- Installation and system integration should be carried out by a suitably qualified installer or electrician.
- Load suitability depends on the appliance start-up demand and the overall system design. Check the load requirements before installation.
Technical Specifications
| Specification |
Detail |
| Brand |
Victron Energy |
| Product Range |
Phoenix Inverter VE.Direct |
| Product Type |
Pure sine wave inverter |
| Available Battery Voltage Variants |
12V, 24V and 48V DC |
| Continuous Power Rating |
1200VA |
| Continuous Power at 25 °C / 40 °C |
1000 W / 850 W |
| Peak Power |
2200 W |
| Output AC Voltage / Frequency |
230VAC or 120VAC +/- 3%; 50Hz or 60Hz +/- 0.1%, adjustable |
| Input Voltage Range |
9.2 - 17V / 18.4 - 34.0V / 36.8 - 62.0V |
| DC Low Shutdown |
9.3V / 18.6V / 37.2V, adjustable |
| DC Low Restart and Alarm |
10.9V / 21.8V / 43.6V, adjustable |
| Battery Charged Detect |
14.0V / 28.0V / 56.0V, adjustable |
| Maximum Efficiency |
91% / 91% / 92% |
| Zero-Load Power |
10 W / 11 W / 12 W |
| Default Zero-Load Power in ECO Mode |
1 W / 1.5 W / 3.0 W |
| Protection |
Output short circuit, overload, high battery voltage, low battery voltage, high temperature and excessive DC ripple |
| Operating Temperature Range |
-40 °C to +65 °C, fan assisted cooling; derate 1.25% per °C above 40 °C |
| Humidity |
Maximum 95%, non-condensing |
| Enclosure Material and Colour |
Steel chassis and plastic cover, blue RAL 5012 |
| Battery Connection |
Screw terminals |
| Maximum Cable Cross-Section |
35 / 25 / 25 sq.mm, variant dependent |
| Protection Category |
IP21 |
| Weight |
7.4 kg |
| Dimensions |
117 x 232 x 327 mm; 12V model: 117 x 232 x 362 mm |
| Remote On/Off |
Yes |
| Automatic Transfer Switch |
Filax recommended by Victron for low-power inverter applications |
| Standards |
EN-IEC 60335-1, EN-IEC 62109-1, UL 458 where applicable, EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4 |
