Product Overview

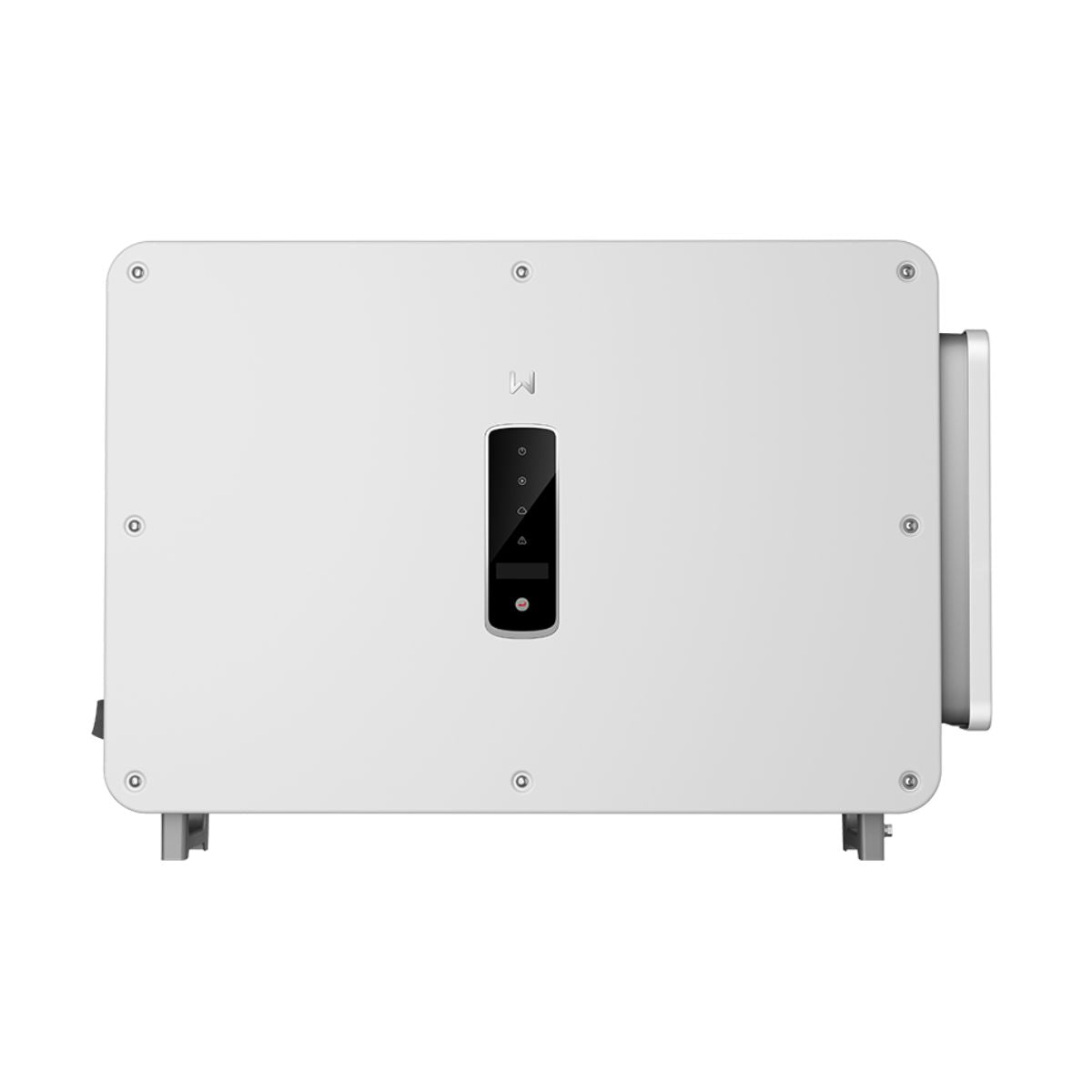

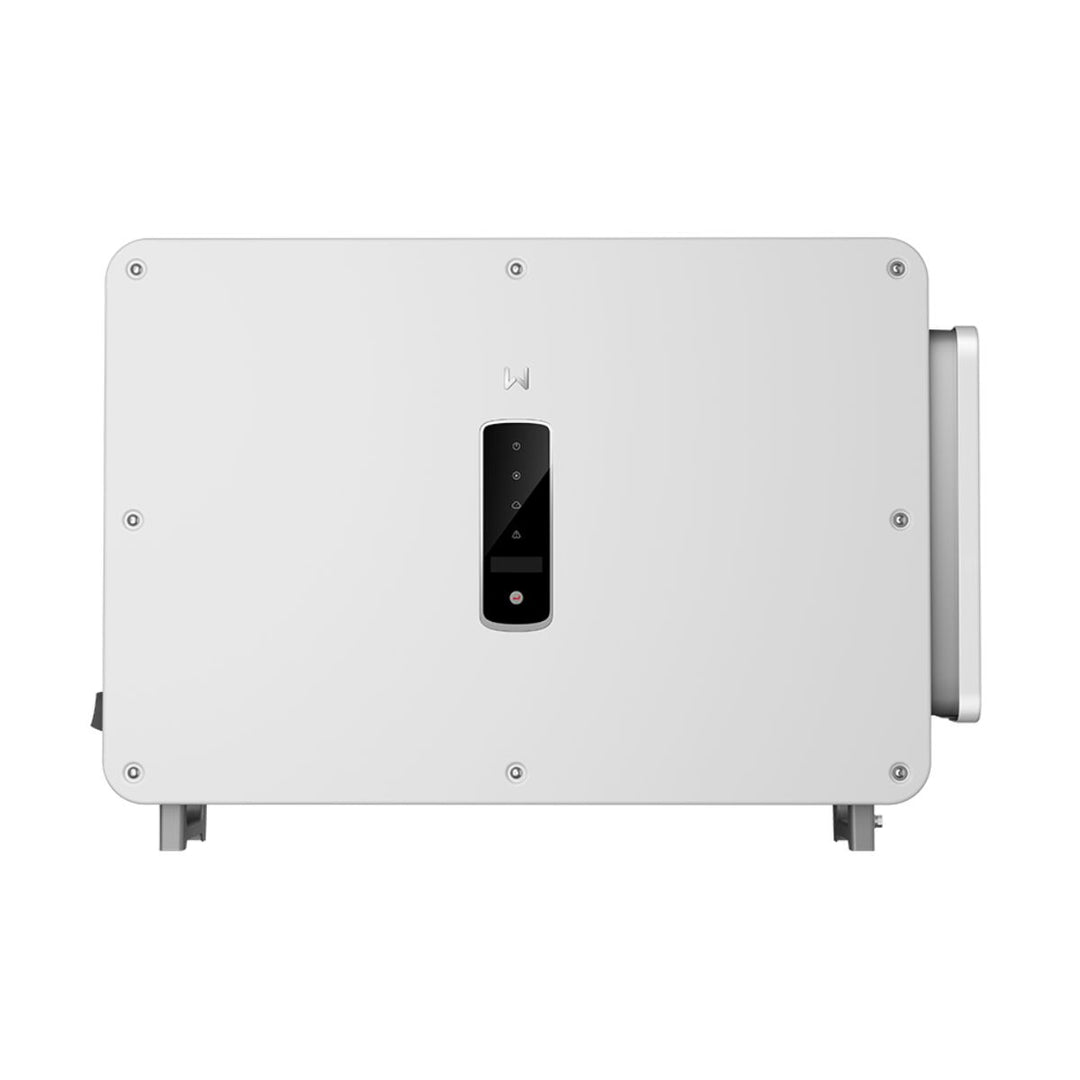

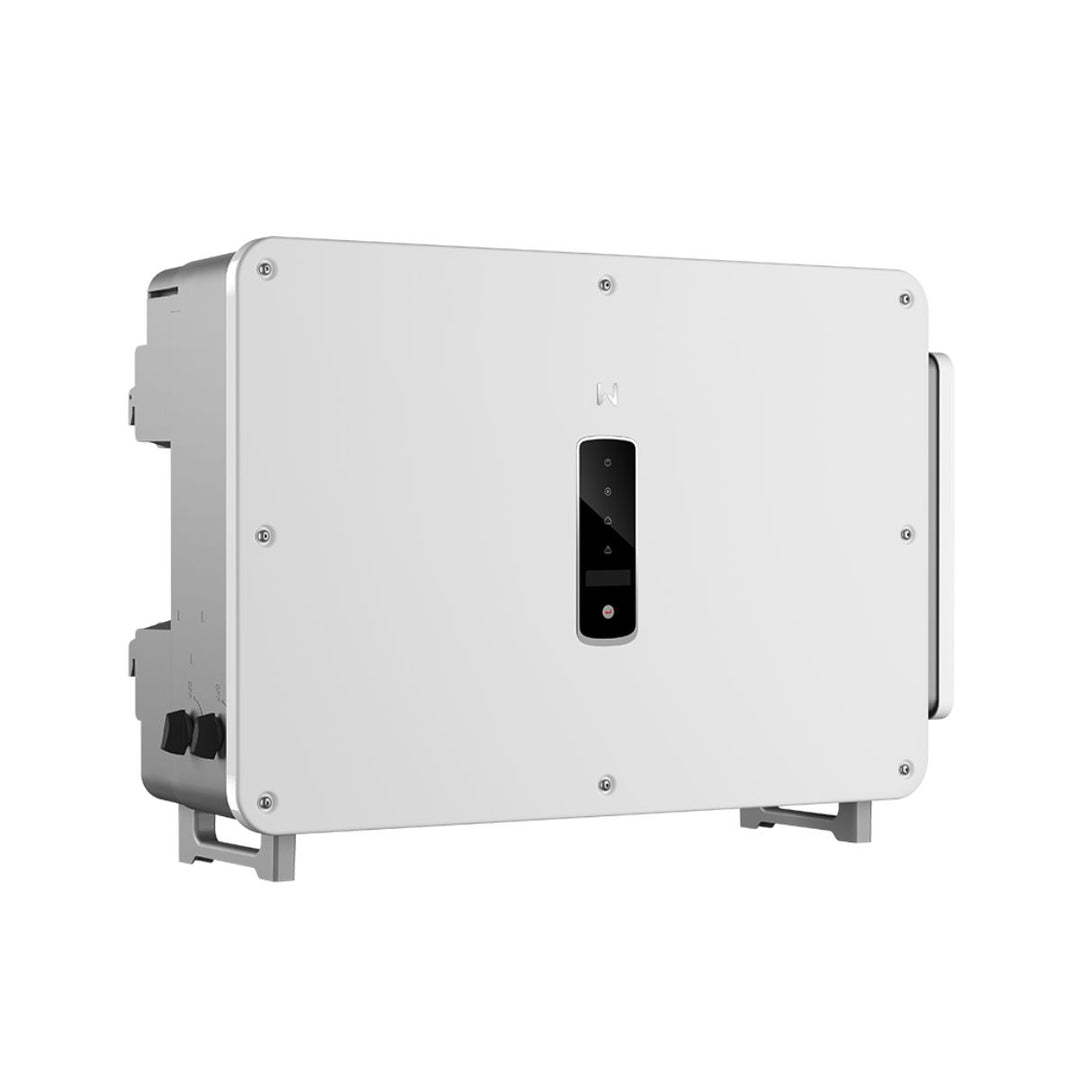

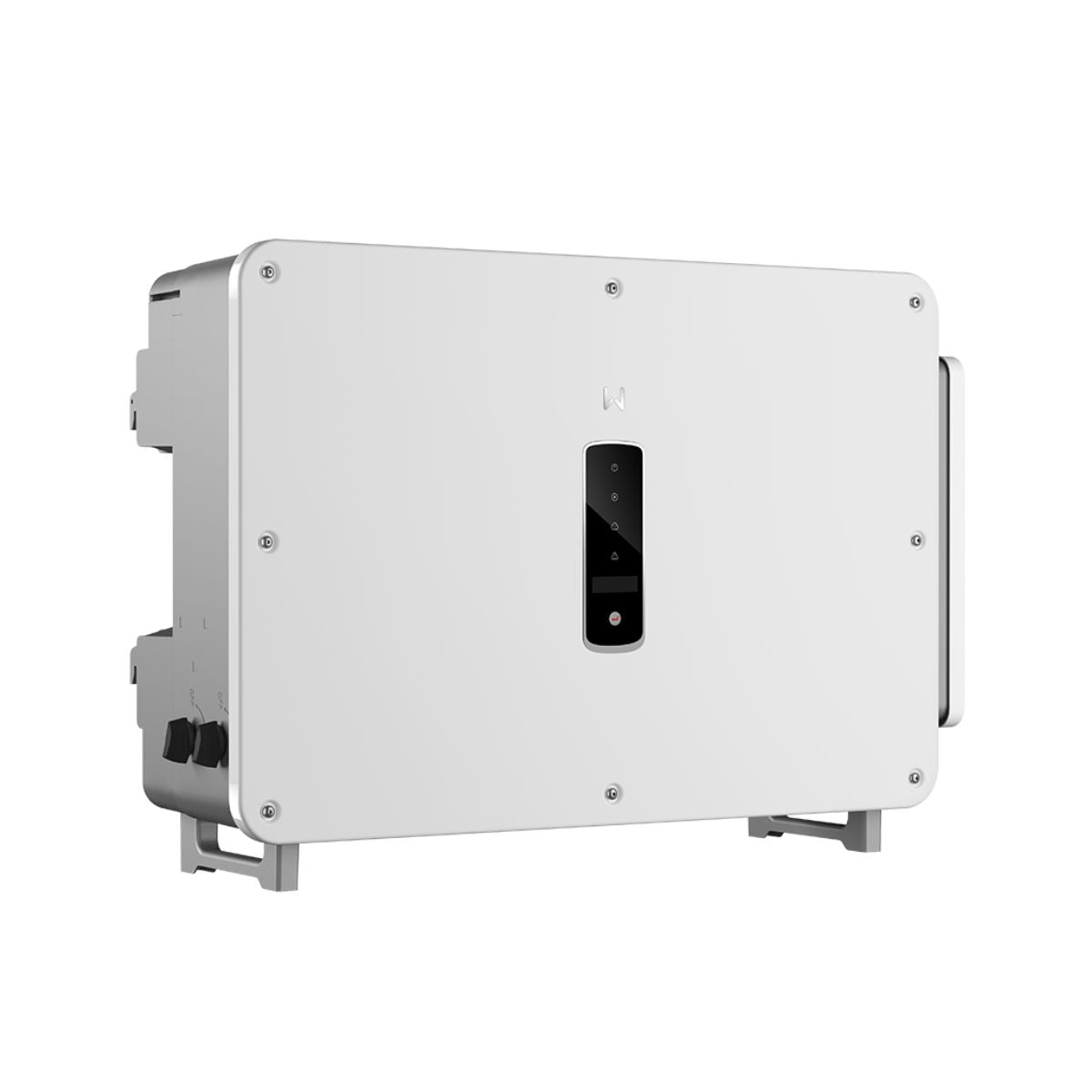

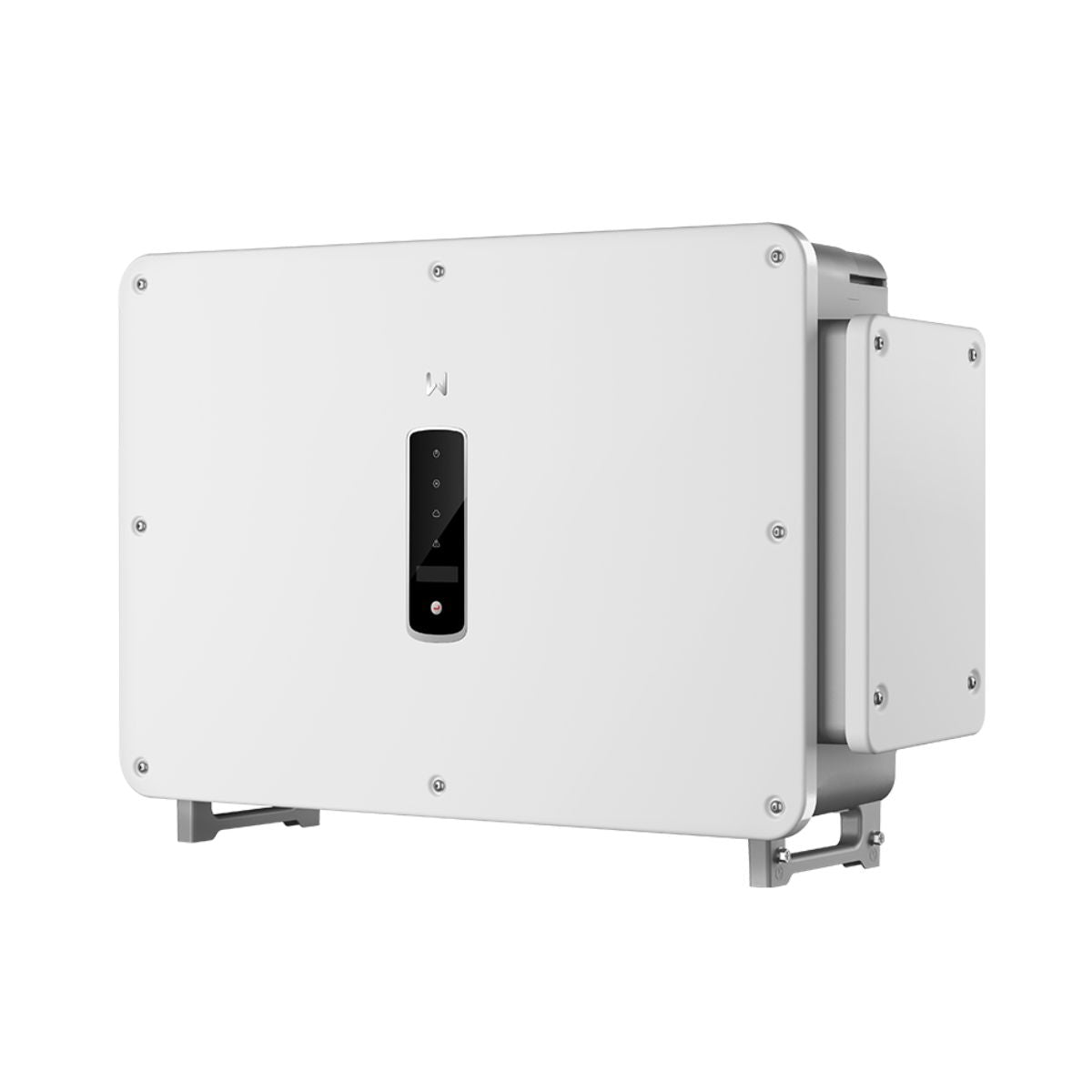

The GoodWe GW125K-GT is a three-phase on-grid string inverter designed for commercial and industrial solar PV systems. With a 125kW nominal output, 10 MPPTs and support for high-current PV strings, it is well suited to larger rooftop and C&I installations that need flexible array design, strong energy yield and dependable grid-tied performance.
Key Features
- 125kW three-phase grid-tied string inverter for commercial and industrial PV applications.
- 10 MPPTs help improve design flexibility across multiple roof sections, string layouts and orientations.
- Supports up to 21A DC input current per string for compatibility with modern high-power PV modules.
- Type II surge protection on both AC and DC sides helps improve system protection and reliability.
- IP66-rated enclosure supports outdoor installation in demanding site conditions.
- Supports up to 150% DC input oversizing and 110% AC output overloading for improved design flexibility.
Applications
- Commercial and industrial rooftop solar systems.
- Large grid-tied PV projects requiring multiple MPPTs and flexible string configuration.
- Installations using high-power solar modules with higher string current requirements.
- Sites where outdoor durability, monitoring and serviceability are important.
Why Choose This Product?
The GW125K-GT is a practical option for larger C&I solar projects that need higher output capacity, broad PV design flexibility and robust protection features in one inverter. Its 10-MPPT layout, high-current string support and outdoor-ready construction make it a strong fit for demanding commercial grid-tied installations.
Important Notes
- This is an on-grid inverter for commercial and industrial PV applications.
- Installation and commissioning should be completed by a qualified electrician or solar installer.
- Optional functions such as PID recovery, C5 protection and AFCI should be confirmed against the exact supplied variant before publishing.
- Final grid-code, communications and project-specific compliance requirements should be confirmed before specification.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW125K-GT |
| Product Type |
Three-phase on-grid string inverter |
| Nominal Output Power |
125kW |
| Application |
Commercial and industrial grid-tied PV systems |
| Number of MPPTs |
10 |
| Strings per MPPT |
2 |
| Max. Input Voltage |
1100V |
| MPPT Operating Voltage Range |
180 - 1000V |
| Max. Input Current per MPPT |
42A |
| Max. Short Circuit Current per MPPT |
52.5A |
| Nominal Output Voltage |
220 / 380V, 230 / 400V, 277 / 480V, 3L / N / PE or 3L / PE |
| Nominal Grid Frequency |
50 / 60Hz |
| Max. Efficiency |
99.0% |
| Protection |
Type II SPD on AC and DC sides |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Smart fan cooling |
| Communication |
RS485, WiFi+LAN or 4G |
| Communication Protocol |
Modbus-RTU (SunSpec compliant) |
| Dimensions |
930 × 650 × 300mm |
| Weight |
88kg |
| Operating Environment |
Outdoor |
