Product Overview

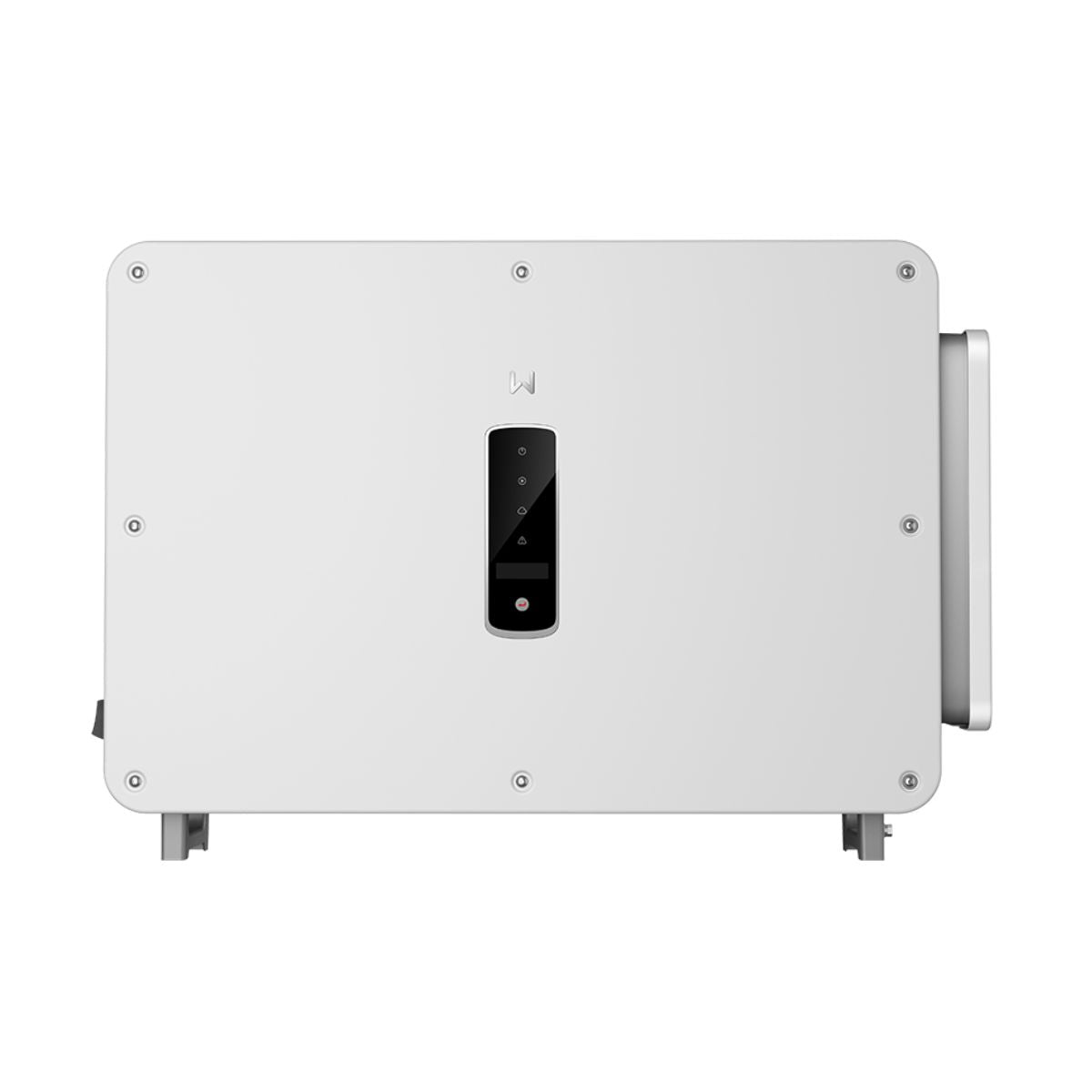

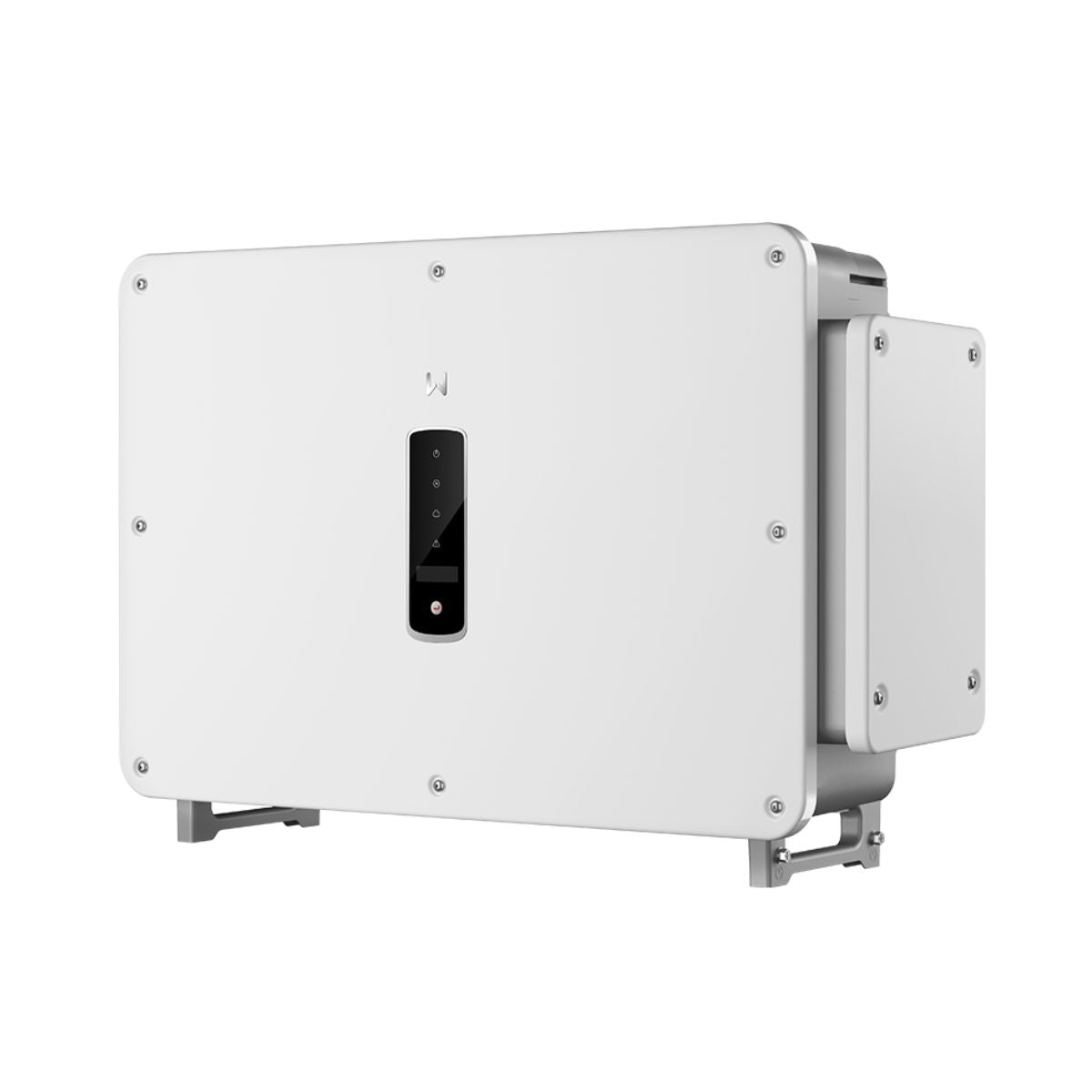

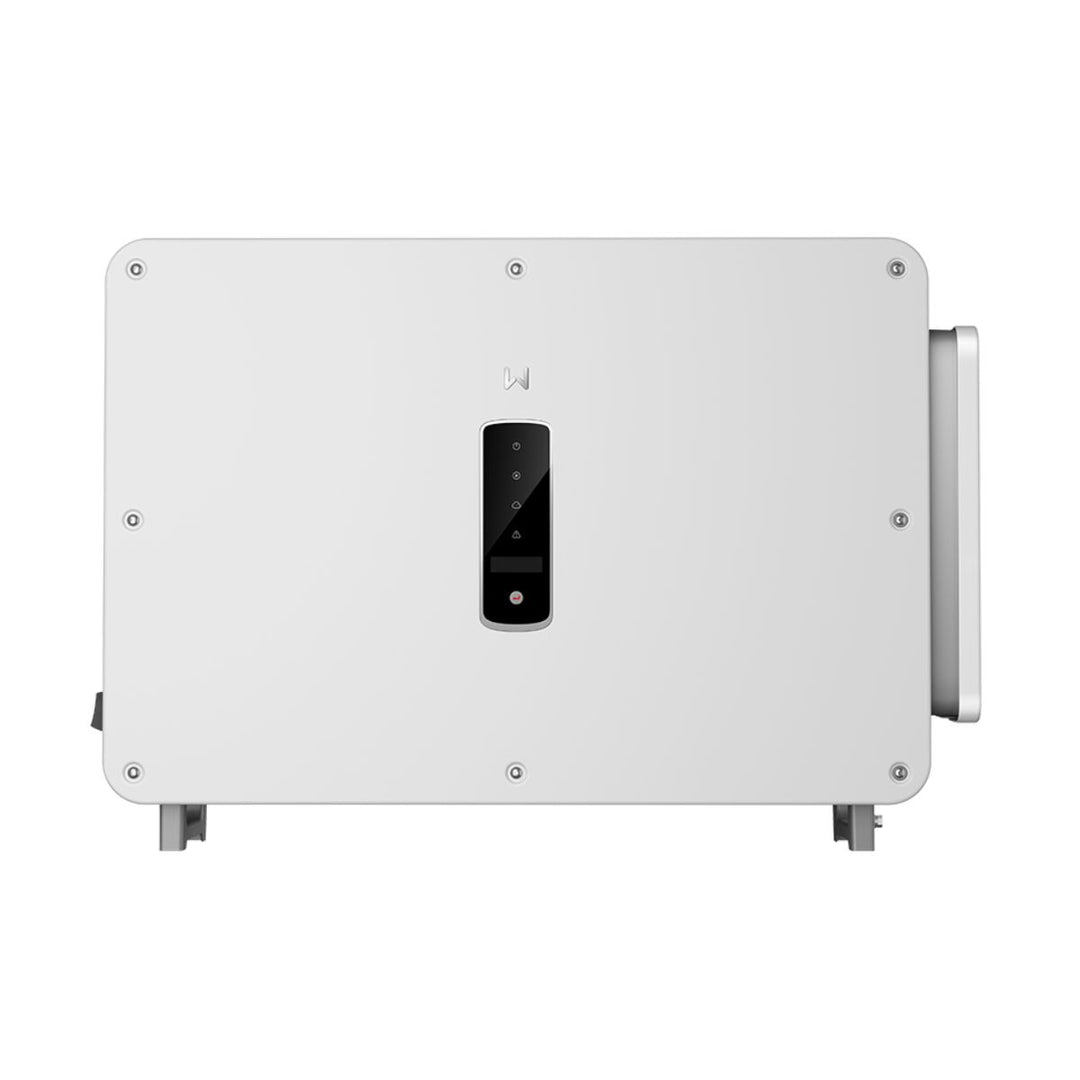

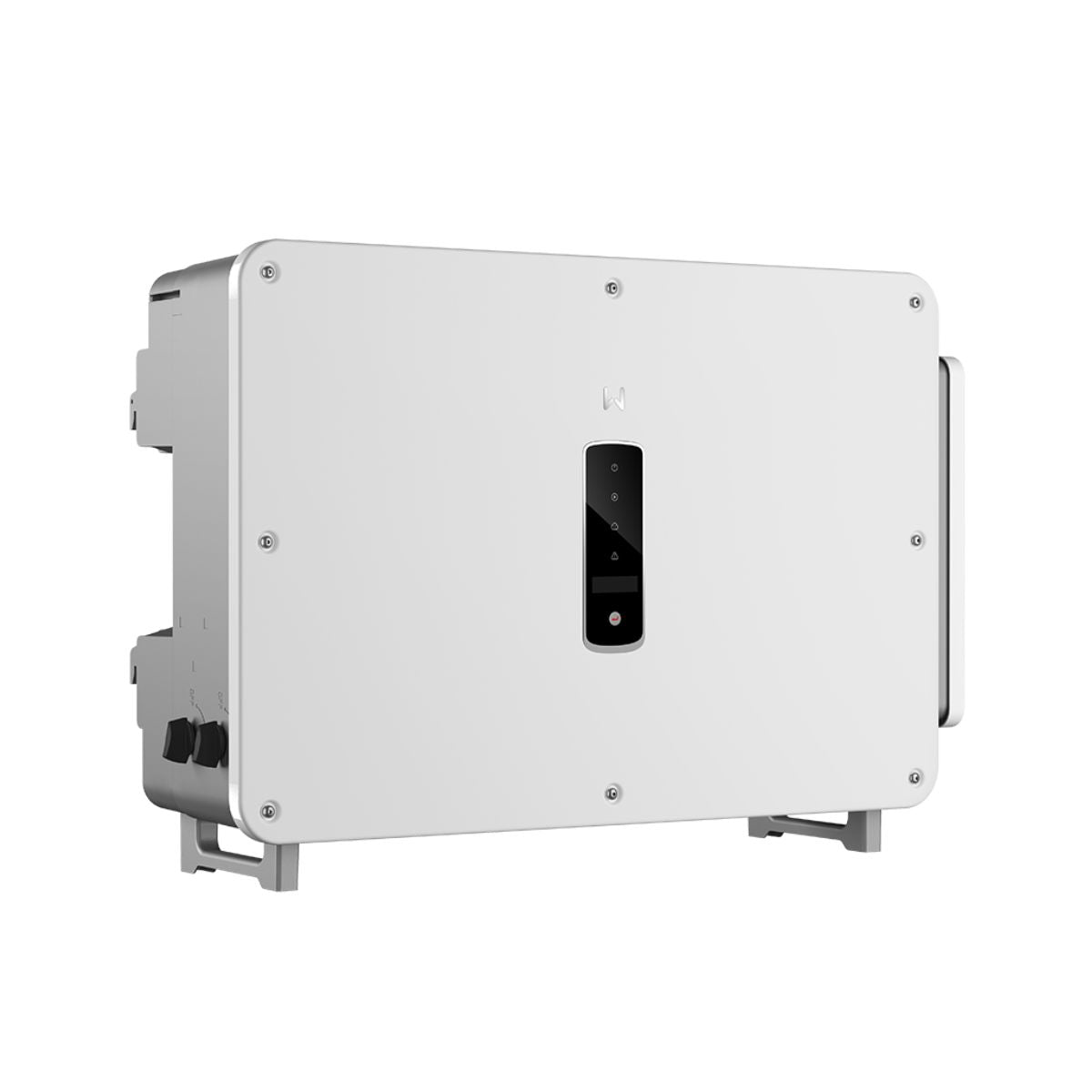

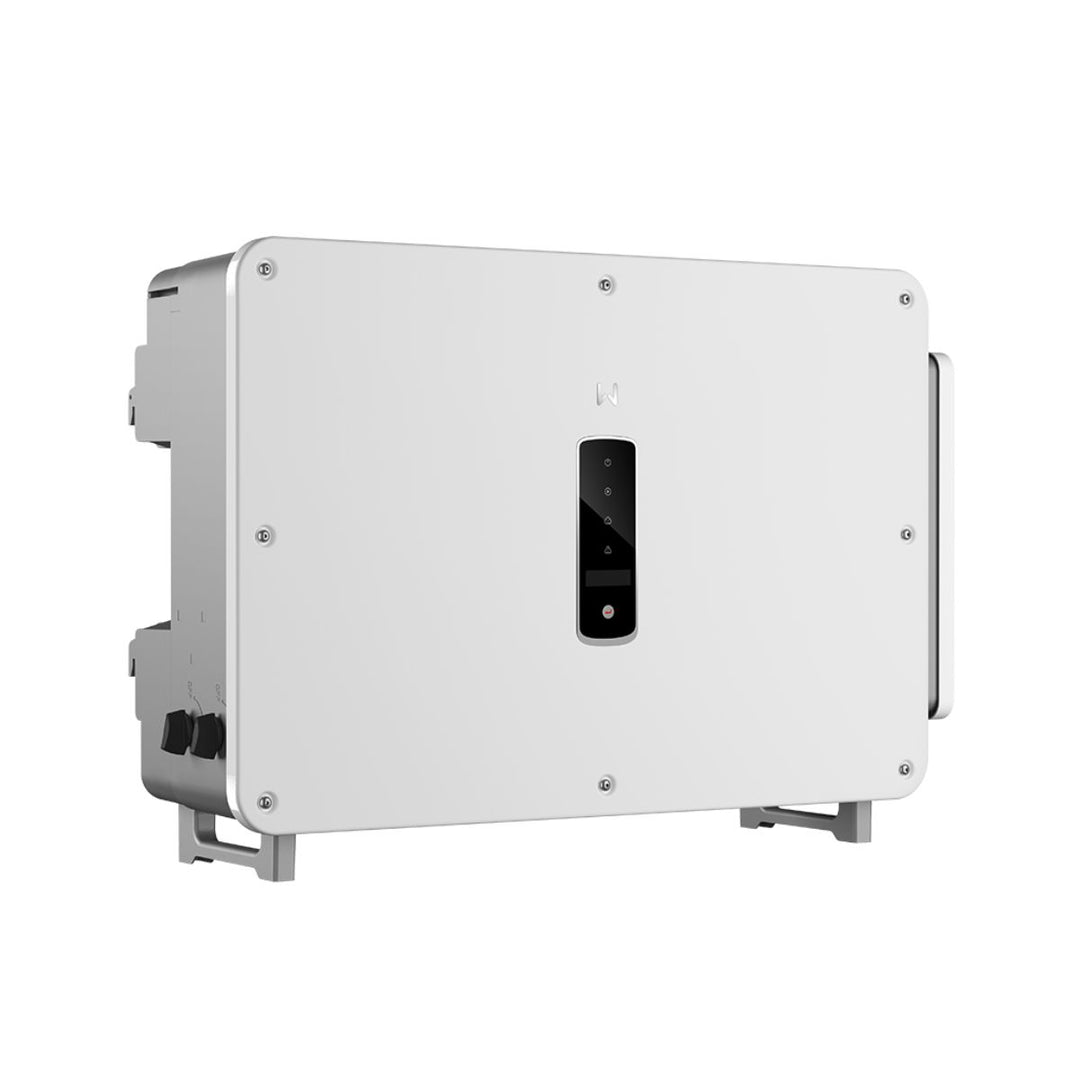

The GoodWe GW100K-GT is a three-phase on-grid string inverter designed for commercial and industrial solar PV systems. With a 100kW nominal output, 8 MPPTs and support for high-current PV strings, it is well suited to larger rooftop and commercial installations that need strong energy yield, flexible array design and dependable grid-tied performance.
Key Features
- 100kW three-phase grid-tied inverter designed for commercial and industrial PV applications.
- 8 MPPTs help improve design flexibility across multiple roof sections, string layouts and orientations.
- Supports up to 21A DC input current per string for compatibility with modern high-power PV modules.
- Type II surge protection on both the DC and AC sides helps improve system protection.
- IP66-rated enclosure supports outdoor installation in demanding site conditions.
- String-level monitoring and remote or on-site upgrade support help simplify system management.
Applications
- Commercial and industrial rooftop solar systems.
- Large grid-tied PV projects requiring multiple MPPTs and flexible string design.
- Installations using high-power solar modules with higher string current requirements.
- Sites where outdoor durability and centralised monitoring are important.
Why Choose This Product?
The GW100K-GT is a practical option for larger C&I solar projects that need strong output capacity, flexible PV design and robust protection features in one inverter. Its multi-MPPT layout, high DC string current support and outdoor-ready construction make it a solid fit for commercial grid-tied installations.
Important Notes
- This is an on-grid inverter intended for commercial and industrial PV applications.
- Installation and commissioning should be completed by a qualified electrician or solar installer.
- Optional functions such as PID recovery, C5 protection and AFCI may depend on the exact model variant or market configuration and should be confirmed before publishing.
- Always confirm final grid-code, protection and communications requirements for the project before specification.
Technical Specifications
| Specification |
Detail |
| Brand |
GoodWe |
| Model |
GW100K-GT |
| Product Type |
Three-phase on-grid string inverter |
| Nominal Output Power |
100kW |
| Application |
Commercial and industrial grid-tied PV systems |
| Number of MPPTs |
8 |
| Strings per MPPT |
2 |
| Max. Input Voltage |
1100V |
| MPPT Operating Voltage Range |
180 - 1000V |
| Max. Input Current per MPPT |
42A |
| Max. Short Circuit Current per MPPT |
52.5A |
| Nominal Output Voltage |
220 / 380V, 230 / 400V, 277 / 480V, 3L / N / PE or 3L / PE |
| Nominal Grid Frequency |
50 / 60Hz |
| Max. Efficiency |
98.8% |
| European Efficiency |
98.4% |
| Protection |
Type II SPD on AC and DC sides |
| Ingress Protection Rating |
IP66 |
| Cooling Method |
Smart fan cooling |
| Communication |
RS485, WiFi + LAN |
| Communication Protocol |
Modbus-RTU (SunSpec compliant) |
| Dimensions |
930 × 650 × 300mm |
| Weight |
88kg |
| Operating Environment |
Outdoor |
