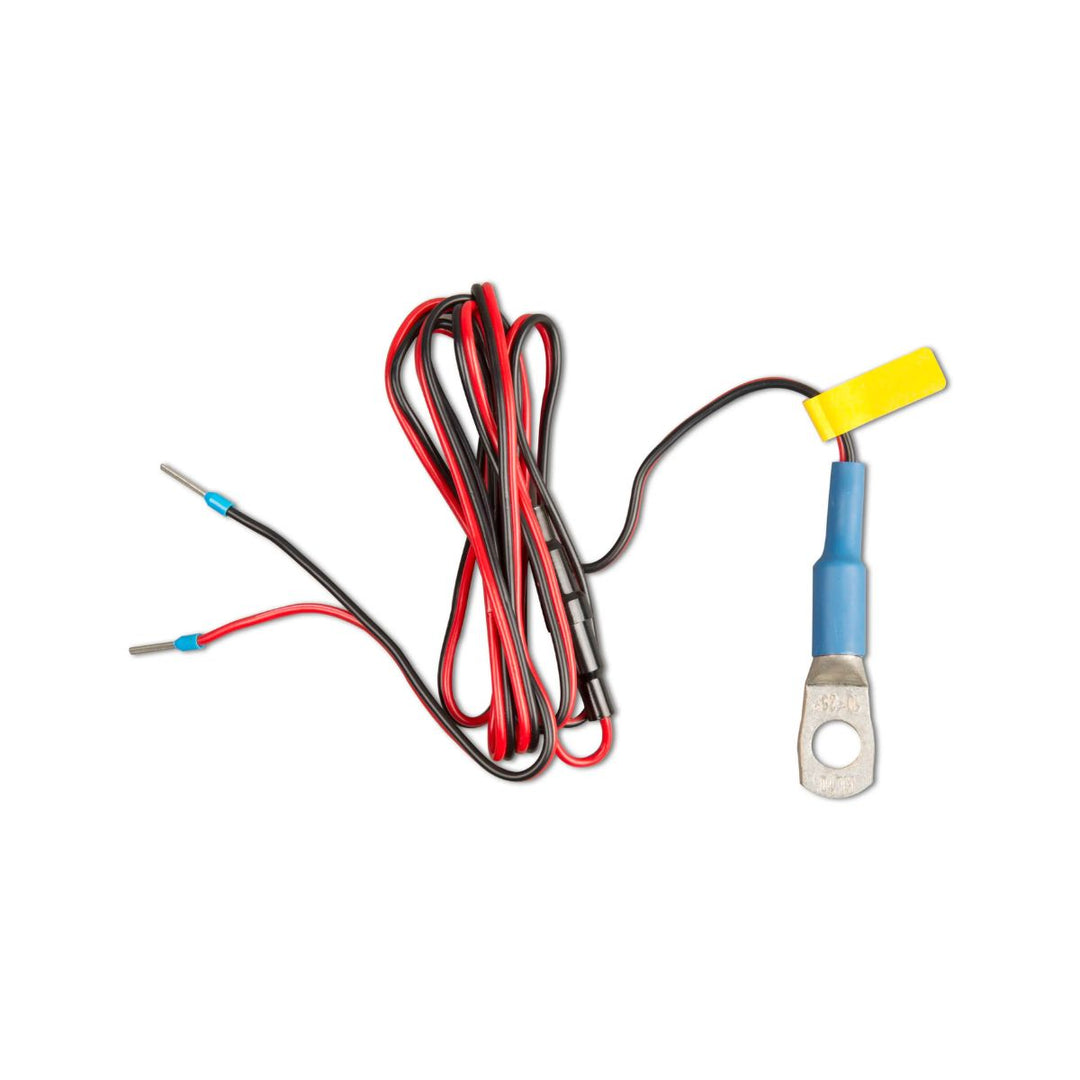

This optional temperature sensor is designed for use with compatible battery monitors such as the BMV-712 and BMV-702. It measures the main battery temperature to optimise charging performance and enables configurable high- and low-temperature alarms, helping to protect batteries and improve overall system accuracy and longevity.
Key Features
- Part Number: ASS000100000
- Supported Products: Battery monitors with temperature support, including BMV-702, BMV-712, SmartShunt, and VE.Bus Smart Dongle
- Temperature Visibility on VRM: Yes
-
VE.Smart Networking:
- Supported with BMV-712
- Supported for BMV-702 when used with a VE.Bus Smart Dongle
- Improved Charging Accuracy: Enables temperature-compensated charging for better battery health
- Alarm Functionality: Allows configuration of high and low temperature alarms
-
Cable Length Modification:
- Extending the cable is discouraged and not officially supported, but may be done if necessary
- Additional length should be kept short with an adequate conductor cross-section
- A slight increase in cable resistance will not negatively affect temperature measurement accuracy
- Significant resistance increase may impact voltage reading accuracy
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
