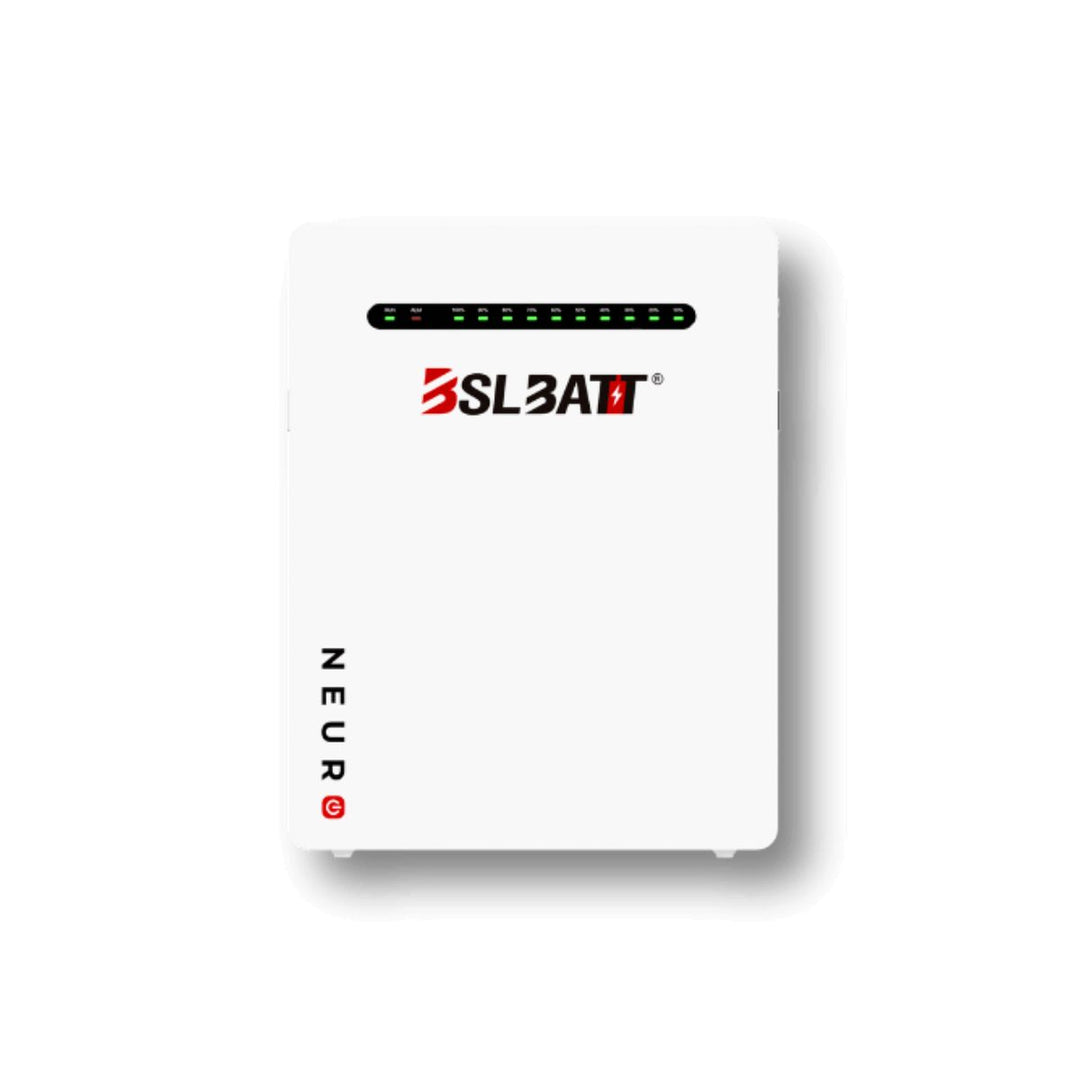

The NEURO is a 51.2Volt, 5.12kWh wall-mounted home battery for solar enery storage systems using the safest litium ion chemical, lithium iron phosphate (LiFeP040, a flexible, scalable (up to 63 batteries can be used simultaneously to provide additional energy storage capacity) lithium battery storage solution designed for hime and nower systems.
Key Features:
-
Max. 63 in parallel
-
Modular and scalable
-
10-year warranty
-
UL Standard battery pack
-
High cycle life and deep cycle capability
-
For on-grid and off-grid
-
Safe and reliable LiFePO₄
Technical Specifications
| Item | General Parameter |
|---|---|
| Model | NEURO |
| Battery Type | LiFePO4 |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity (Wh) | 5120 |
| Usable Capacity (Wh) | 4608 |
| Cell Configuration | 16S1P |
| Dimension (mm) (H*W*D) | 590 × 460 × 147 |
| Weight (Kg) | 50 ± 3% |
| Discharge Voltage (V) | 47 |
| Charge Voltage (V) | 55 |
| Charge | |
| Rated Current / Power | 40A / 2.048kW |
| Max. Current / Power | 80A / 4.096kW |
| Peak Current / Power | 110A / 5.632kW, 1s |
| Discharging | |
| Rated Current / Power | 100A / 5.12kW (25 ± 2°C) |
| Peak Current / Power | 150A / 7.68kW, 2 Minutes |
| Communication | RS232, RS485, CAN, WiFi (Optional), Bluetooth (Optional) |
| Depth Of Discharge (%) | 90% |
| Expansion | Up to 63 units in parallel |
| Working Temperature | |
| Charge | 0 ~ 55°C |
| Discharge | -20 ~ 55°C |
| Storage Temperature | -10°C ~ 45°C |
| Short Circuit Current / Duration Time | 400A - 0.5 ms |
| Cooling Type | Natural Convection |
| Protection Level | IP20 |
| Monthly Self-discharge | ≤ 3% / month |
| Humidity | ≤ 60% ROH |
| Altitude (m) | < 4000 |
| Warranty | 10 Years |
| Design Life | > 15 Years (25°C / 77°F) |
| Cycle Life | > 6000 cycles, 25 ± 2°C |
| Certification & Safety Standard | UN38.3 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
