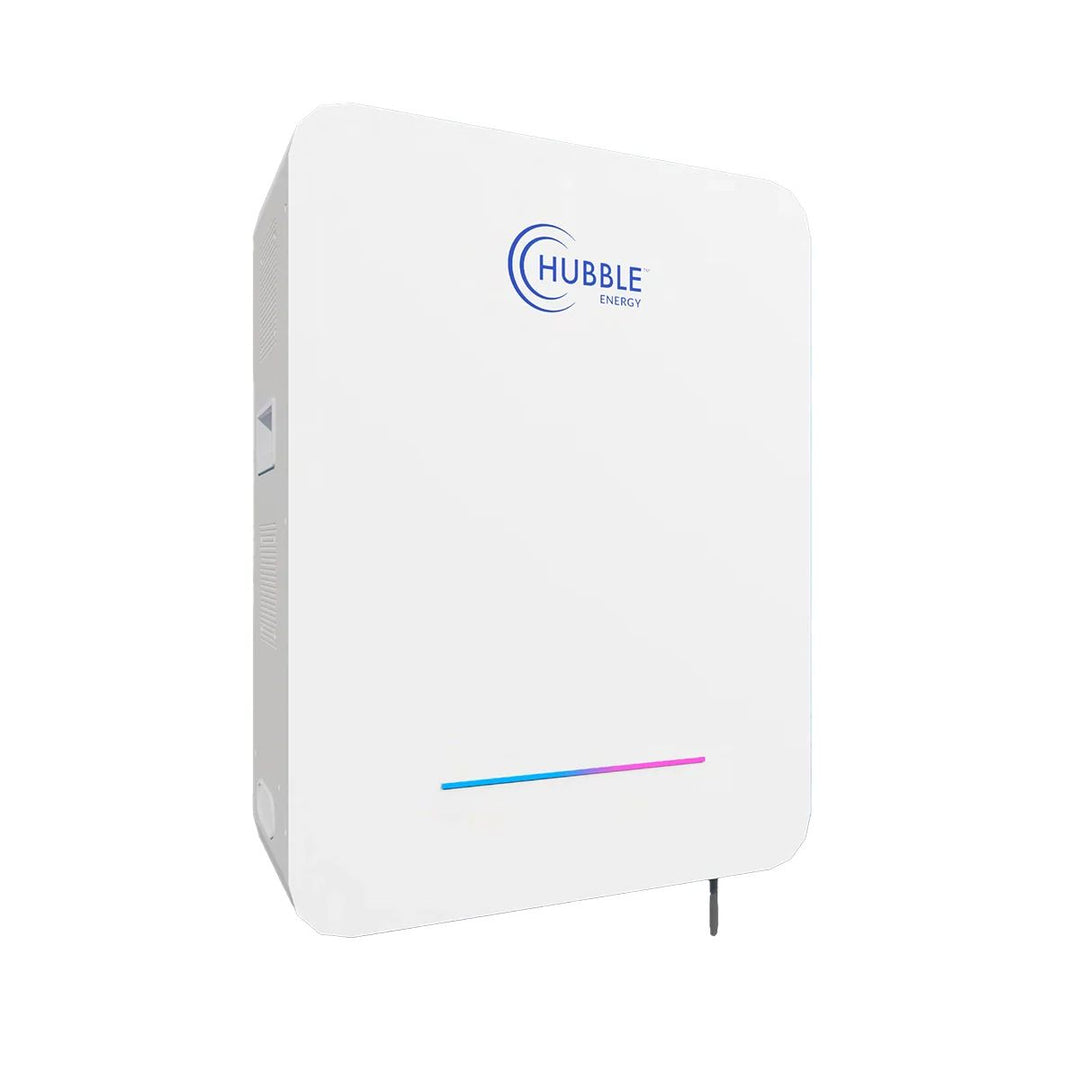

The Hubble AM-10+ is a high-performance 51.2V lithium iron phosphate (LiFePO₄) battery designed for reliable residential and commercial energy storage applications. Built with advanced battery management and prismatic lithium cells, the AM-10+ offers exceptional safety, long service life, and seamless inverter compatibility for modern solar and backup power systems.
Key Features
- 10kWh high-capacity LiFePO₄ battery
- Unlimited cycle warranty (Ts & Cs apply)
- Advanced Battery Management System (BMS)
- Prismatic lithium cells for enhanced safety and longevity
- High-performance 1C discharge capability
- CAN Bus communication for inverter integration
- Integrated cloud monitoring via Hubble Cloudlink
- Scalable up to 15 units in parallel
- RGB LED status indicator
- Wall-mounted design for easy installation
- Compatible with most major inverter brands
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2 V |
| Nominal Energy | 10 kWh |
| Rated Capacity | 200 Ah |
| Operating Voltage Range | 43.2 V – 58.4 V |
| Charging Voltage | 55.2 V |
| Maximum Charge Current | 115 A |
| Maximum Discharge Current | 200 A |
| Discharge Capability | 1C |
| Design Lifetime | 15 years |
| Cycle Life | Unlimited (within warranty terms) |
| Self-Consumption (BMS) | ≤ 2 W |
| Communication Interfaces | CAN, RS485, RS232 |
| Monitoring | Integrated Cloudlink (Wi-Fi 2.4GHz) |
| Installation | Wall mounted |
| Dimensions (H × W × D) | 675 × 510 × 230 mm |
| Weight | 89 kg |
| Operating Temperature | -10 °C to 50 °C |
| Certifications | CE, IEC, UN38.3 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
