Product Overview

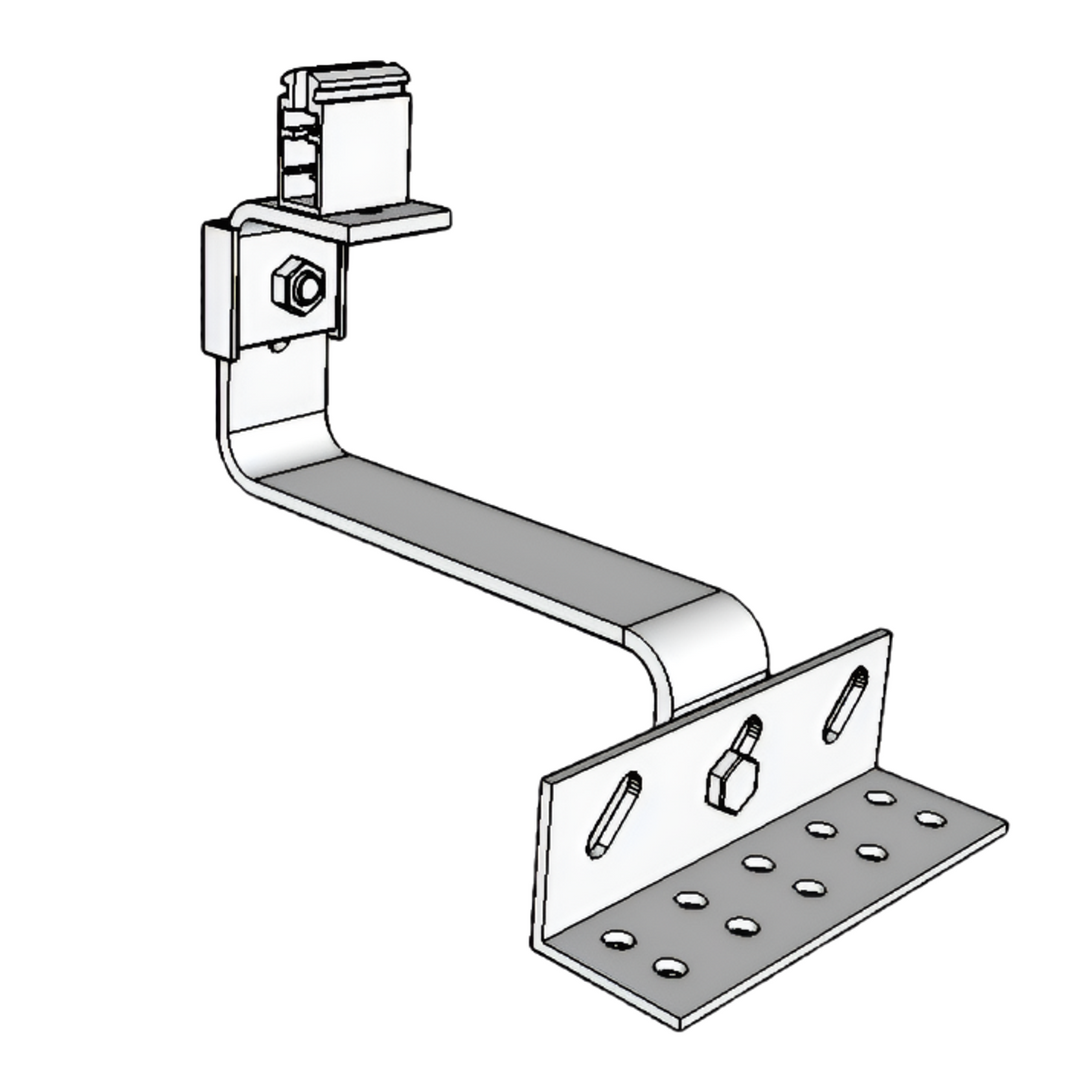

The KDS-TILE-P is a tile roof bracket for KD Solar mounting systems, designed to fasten to the main vertical rafter on tile roofs. It is supplied as part of a penetrating mounting approach and supports portrait and landscape installations with aluminium-framed PV modules from 30 mm to 40 mm thick.
Key Features
- Tile roof bracket with push-clip interface for use in KD Solar tile roof mounting systems.
- Designed to fasten to the main vertical rafter for a secure mounting point.
- Supports portrait and landscape panel layouts with 30 mm to 40 mm aluminium-framed PV modules.
Applications
- Flush-mount solar installations on tiled roofs.
- Residential and commercial rooftops using KD Solar tile roof hardware.
- Systems requiring compatibility with KDS-RAIL and compatible KD Solar clamps.
Why Choose This Product?
This bracket gives installers a tile-roof-specific mounting point within the KD Solar system, with a matching push-clip connection for the rail and a clear installation workflow from the supplier. It is a practical choice where a dedicated tile roof hook is needed for framed PV modules.
Important Notes
- The supplier data sheet lists KDS-PC30 and ZP-SCREW-TPS-6.35X60 as included components, with KDS-RAIL and compatible KD Solar clamps required in the wider system.
- The installation guide states a maximum bracket spacing of 1.4 m, a maximum rail overhang of 300 mm, and a clamp tightening torque of 8 Nm. Installation should be done by a qualified solar installer.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-TILE-P |
| Product Type |
Tile roof bracket / tile roof hook |
| Series |
ALU Series |
| Mounting Type |
Penetrating |
| Material |
Aluminium |
| Weight |
270 g |
| PV Module Thickness |
30 mm - 40 mm |
| PV Module Type |
Alu framed PV modules |
| Panel Orientation |
Portrait / Landscape |
| Included Components |
KDS-PC30, ZP-SCREW-TPS-6.35X60 |
| Additional Items Needed |
KDS-RAIL; KDS-MC30-40P; KDS-EC30-40P |
| Tooling Required |
13 mm spanner; 10 mm nut setter; 6 mm Allen key |
| Product Guarantee |
10 years |
