Product Overview

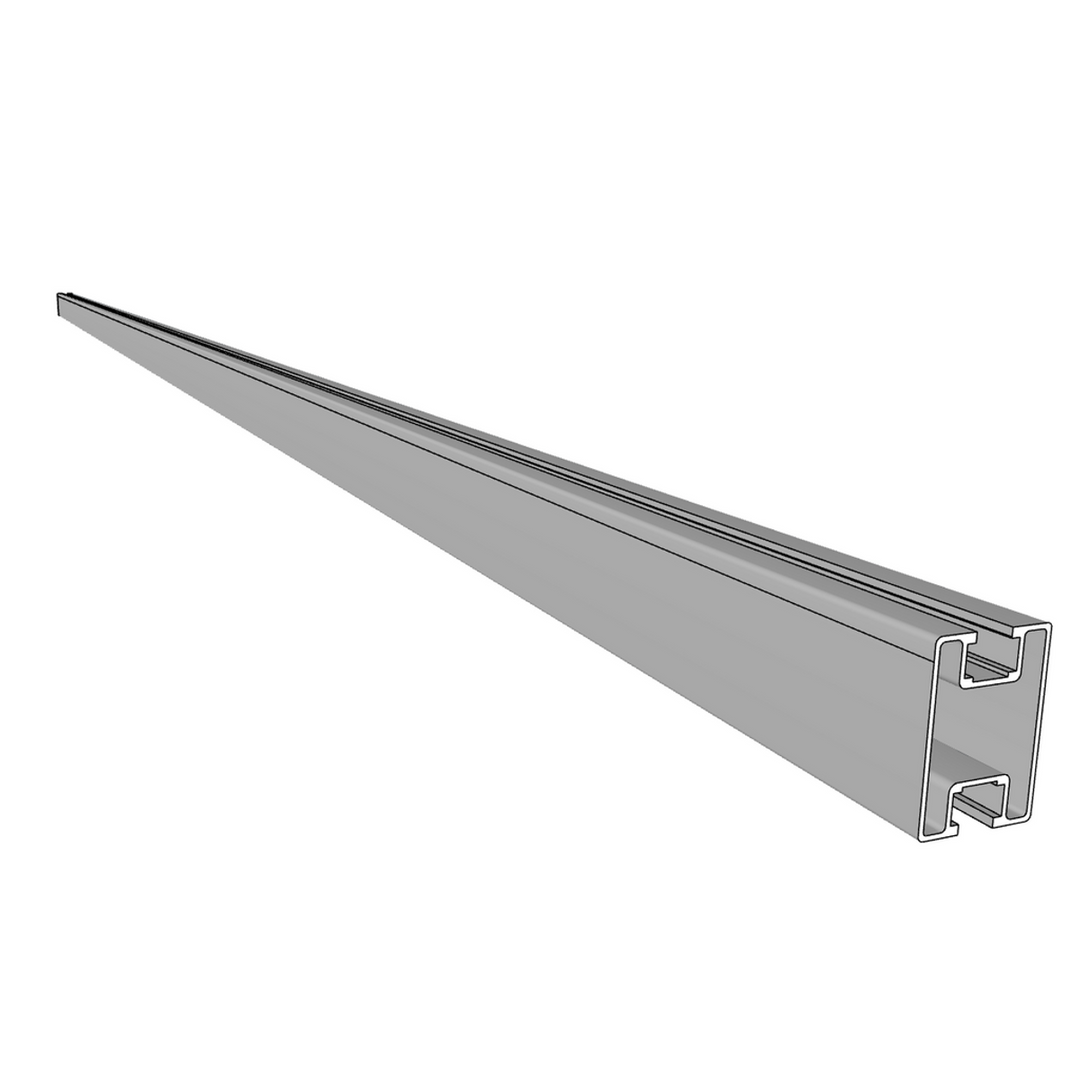

The KDS-RAIL-LT is an aluminium solar mounting rail designed for top and bottom fixing in KD Solar mounting systems. It is available in 4400 mm, 4720 mm and 6600 mm lengths and supports both portrait and landscape module layouts.
Key Features
- Aluminium rail profile with top and bottom fixing for use in KD Solar mounting assemblies.
- Compatible with the KDS push-clip and an M8 bolt for system integration.
- Available in multiple rail lengths to suit different array sizes and layouts.
Applications
- Solar mounting rail for tile roof and related KD Solar mounting systems.
- Residential, commercial and small-scale agricultural PV structures.
- Systems using compatible KD Solar joiners, clamps and push-clip components.
Why Choose This Product?
This rail gives installers a matching structural base for KD Solar roof mounting systems, with supported compatible components and clearly stated span and overhang limits. It is a practical option where a lightweight aluminium rail is needed for framed PV module installations.
Important Notes
- Compatible components listed by the supplier include KDS-U-JOIN, KDS mid and end clamps, and KDS-PC30.
- Observe the supplier's stated maximum overhang of 300 mm and maximum span of 1600 mm during system design and installation.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-RAIL-LT |
| Product Type |
Aluminium solar rail |
| Series |
ALU Series |
| Available Lengths |
4400 mm, 4720 mm, 6600 mm |
| Material |
Aluminium |
| Weight |
700 g/m |
| Panel Orientation |
Portrait / Landscape |
| Compatible Components |
KDS-U-JOIN, KDS mid and end clamps, KDS-PC30 |
| Max Overhang |
300 mm |
| Max Span |
1600 mm |
| Product Guarantee |
10 years |
