Product Overview

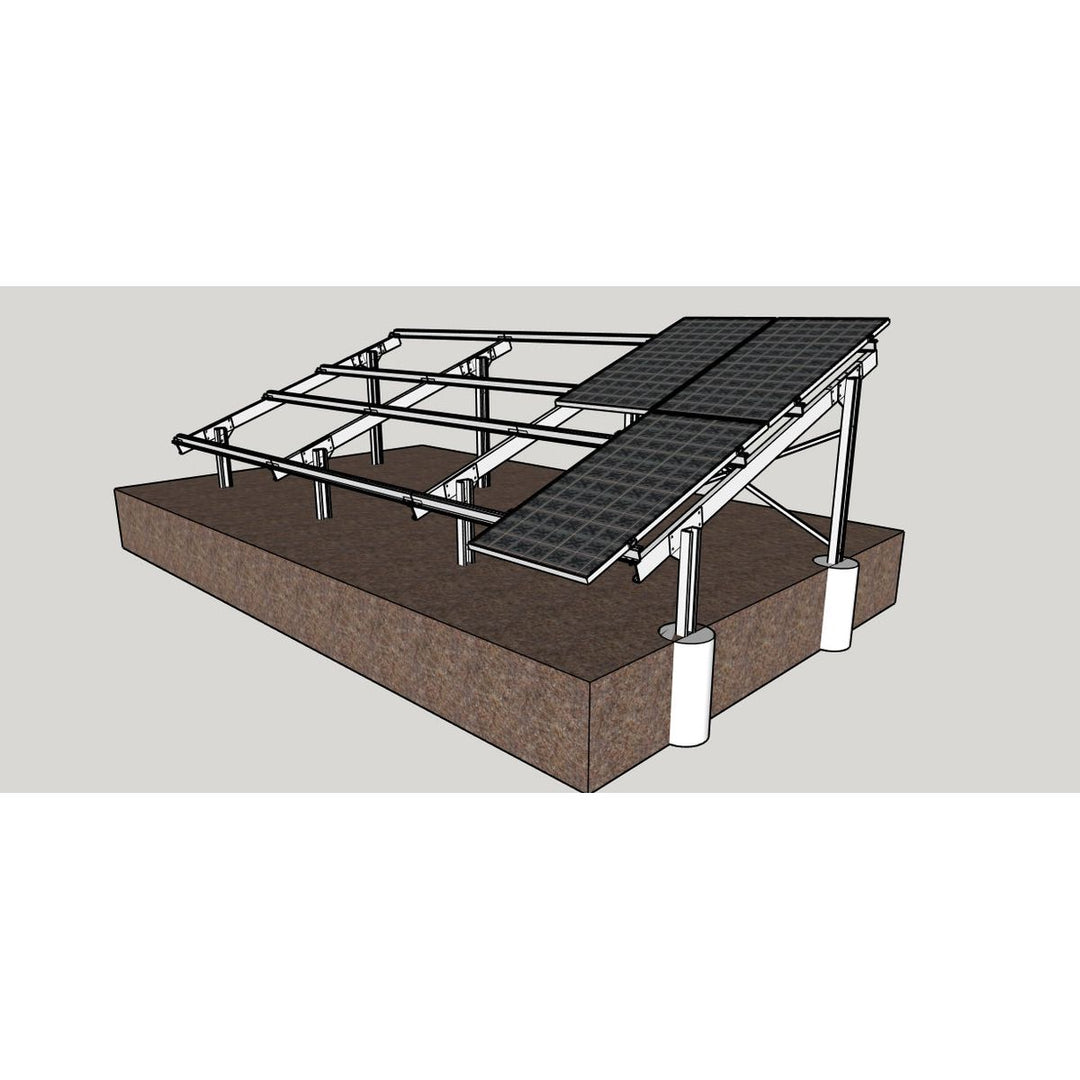

The KDS-GRND-GALV20-12P is a 12-panel pre-galvanised ground mount designed to hold 2 rows of 6 panels, each 1134 mm wide. It uses a fixed 20 degree tilt and is specified with footings cast in concrete.
Key Features
- Pre-galvanised ground-mount structure for 12 solar panels.
- Configured for 2 rows of 6 panels using 1134 mm wide modules.
- Fixed 20 degree tilt with concrete-cast footings.
Applications
- Ground-mounted solar installations on residential, commercial or agricultural sites.
- Projects using 1134 mm wide panels in a 12-panel array layout.
- Sites where a fixed-tilt pre-galvanised mounting structure is preferred.
Why Choose This Product?
This system provides a defined pre-galvanised ground-mount layout for 12-panel arrays, helping simplify planning where the module width and panel arrangement match the supplier specification.
Important Notes
- Designed for 1134 mm wide panels in a 2 x 6 layout.
- This unit is manufactured to order. Civil design, footing requirements and installation should be confirmed for the site before procurement.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-GRND-GALV20-12P |
| Product Type |
Pre-galvanised ground mount |
| Panel Capacity |
12 panels |
| Panel Layout |
2 rows of 6 |
| Panel Width |
1134 mm |
| Tilt Angle |
20 degrees fixed tilt |
| Footing Type |
Cast in concrete |
| Manufacturing |
Manufactured to order |
