Product Overview

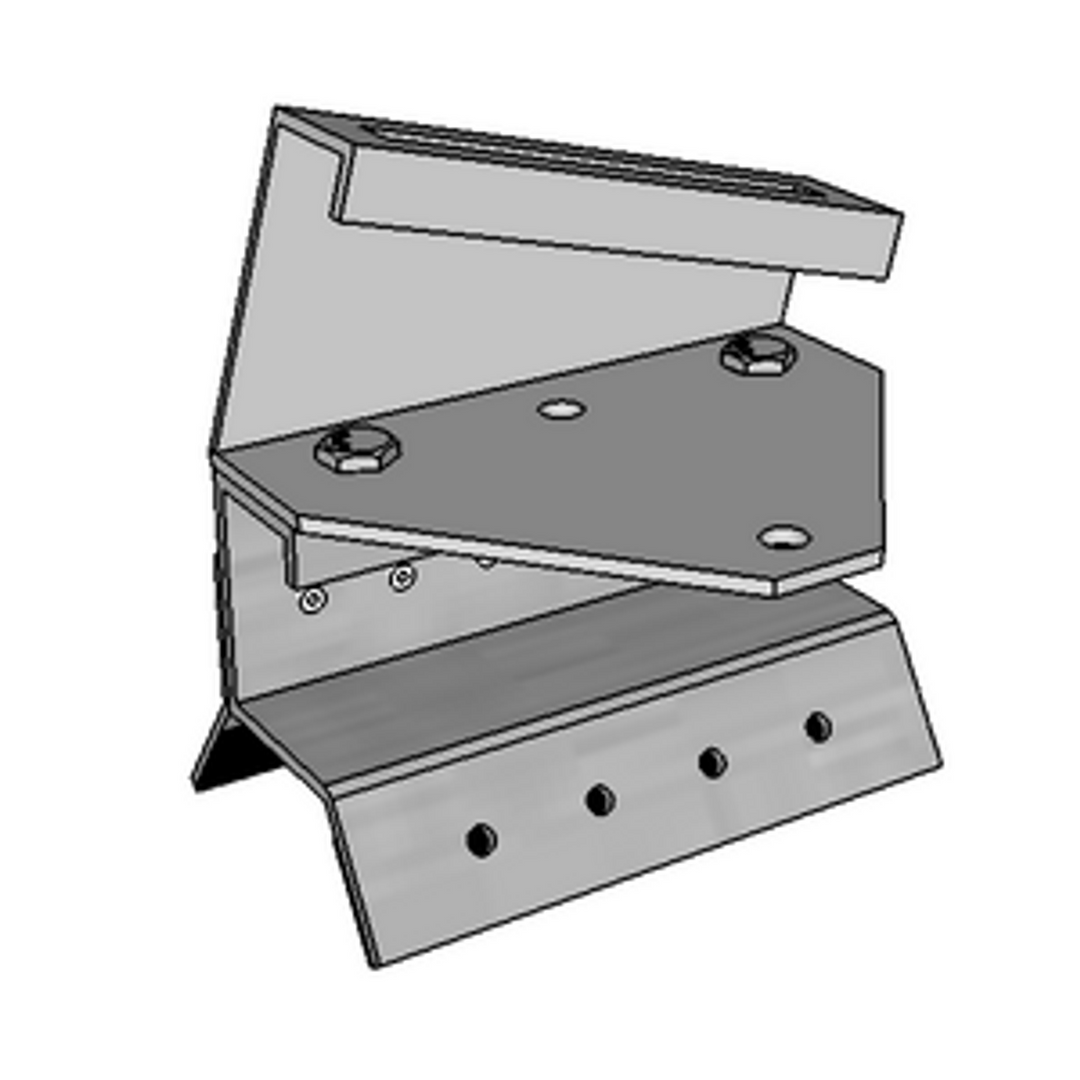

The KDS-IBR120-15TILT-LS-F-AC is a 120 mm long IBR front foot for 15 degree tilt landscape mounting, with the panel positioned across the roof rib. It requires 8 x CLASS3-STITCH-14X22 screws, which are not included.
Key Features
- 120 mm long IBR front foot for 15 degree tilt landscape layouts.
- Designed for panel positioning across the roof rib.
- Supplier documentation includes a data sheet and installation guide.
Applications
- IBR roof tilt-mount solar systems in landscape orientation.
- Installations where the panel runs across the roof rib.
- Residential and commercial rooftop PV mounting layouts using compatible KD Solar hardware.
Why Choose This Product?
This front foot provides a supplier-defined component for 15 degree IBR landscape tilt systems, helping installers keep the roof-anchor geometry aligned with the intended layout.
Important Notes
- Requires 8 x CLASS3-STITCH-14X22 screws, not included.
- Confirm full system compatibility, spacing and roof-sheet suitability before installation.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-IBR120-15TILT-LS-F-AC |
| Product Type |
IBR front foot |
| Length |
120 mm |
| Tilt Angle |
15 degrees |
| Orientation |
Landscape |
| Panel Position |
Across the roof rib |
| Additional Items Needed |
8 x CLASS3-STITCH-14X22 screws |
