Product Overview

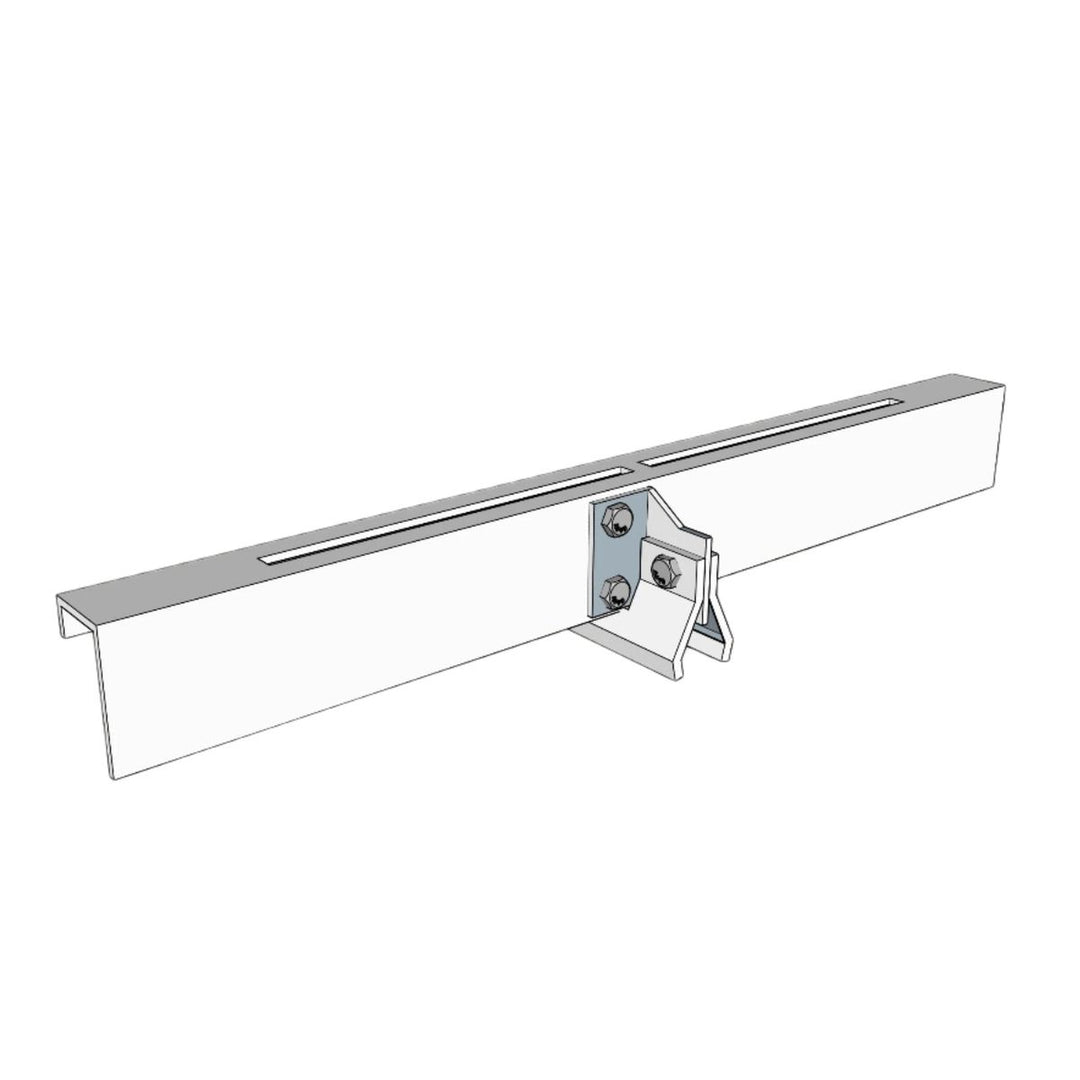

The KDS-CL78-PCSLOT-500NRP is a fully assembled 500 mm ClipLock no-rail port bracket from KD Solar. It is designed for panel layouts parallel to the roof rib and includes 2 x 1.2 mm buffers.
Key Features
- Fully assembled 500 mm ClipLock no-rail port bracket.
- Designed for panels installed parallel to the roof rib.
- Includes 2 x 1.2 mm buffers as part of the supplied assembly.
Applications
- ClipLock portrait no-rail solar mounting layouts.
- Installations where panels are positioned parallel to the roof rib.
- Residential and commercial rooftop PV systems using compatible ClipLock hardware.
Why Choose This Product?
This bracket gives installers a ready-assembled no-rail solution for compatible ClipLock layouts, helping simplify component handling on site. It is especially useful where a panel-parallel-to-rib arrangement is required.
Important Notes
- Confirm ClipLock roof-profile compatibility and panel layout before ordering.
- The supplier source shows a data sheet and installation guide, but does not list additional hardware details beyond the included buffers in the visible text.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-CL78-PCSLOT-500NRP |
| Product Type |
ClipLock no-rail port bracket |
| Length |
500 mm |
| Orientation |
Panel parallel to roof rib |
| Included Components |
2 x 1.2 mm buffers |
| Assembly |
Fully assembled |
