Product Overview

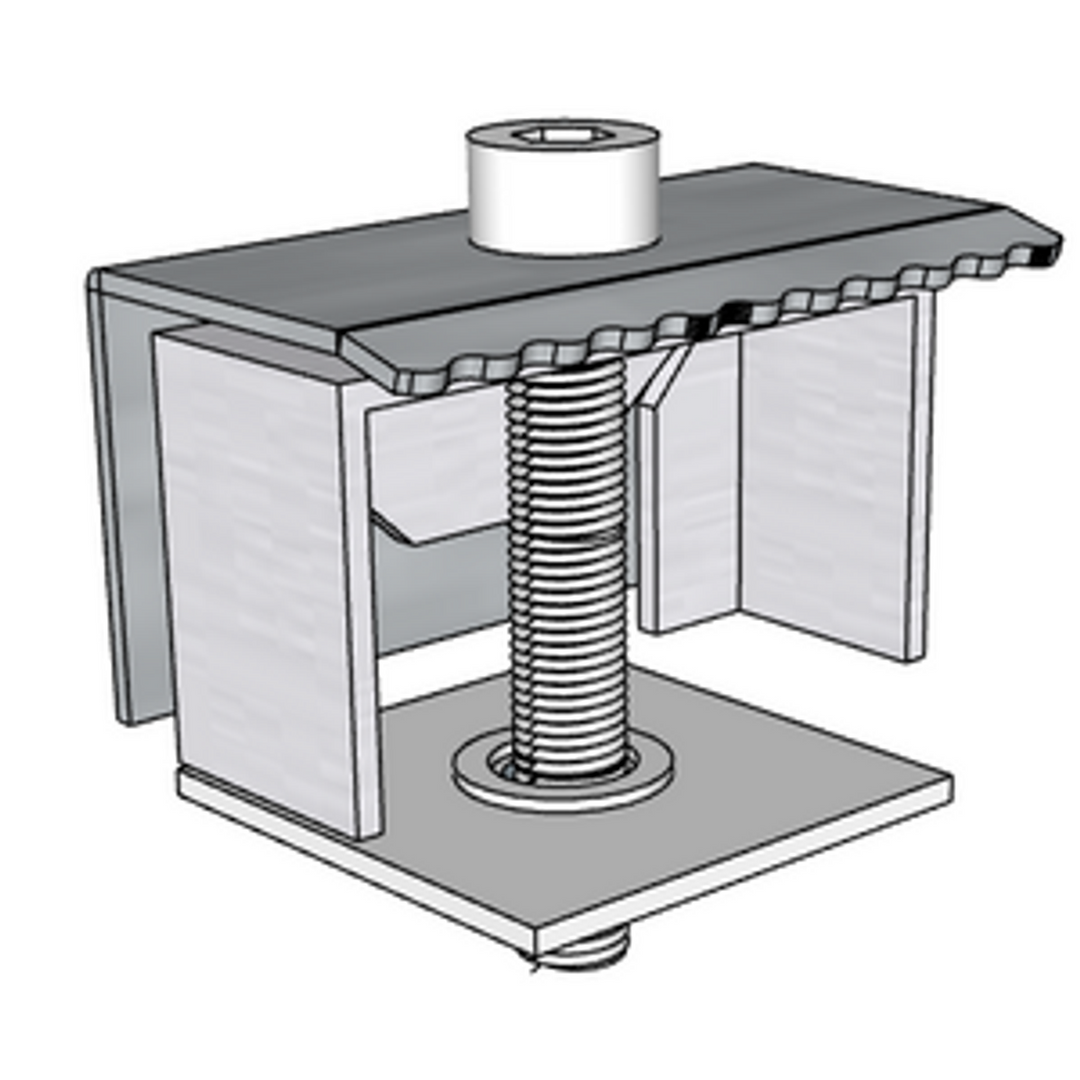

The KDS-END CLAMP-A is an end clamp designed for mounting panels directly to an A-frame structure. It is available in fixed 30 mm, 35 mm and 40 mm options, as well as an adjustable 30 mm to 40 mm variant.
Key Features
- Designed for direct panel mounting to an A-frame structure.
- Available in fixed and adjustable panel-thickness options.
- Supported by separate fixed and adjustable data sheets and installation guides.
Applications
- A-frame solar mounting systems using compatible framed PV modules.
- Installations that require an end clamp matched to the module frame thickness.
- Residential, commercial and small-scale agricultural PV structures using KD Solar A-frame hardware.
Why Choose This Product?
This clamp gives installers a practical way to secure module ends directly to A-frame structures while choosing between fixed and adjustable sizes to suit the panel frame used on site.
Important Notes
- Select the correct option for the module frame thickness: fixed 30 mm, 35 mm, 40 mm or adjustable 30 mm to 40 mm.
- The source text contains minor spelling errors, so panel-mounting intent was interpreted from the supplier wording and option list.
Technical Specifications
| Specification |
Detail |
| Brand |
KD Solar |
| Model |
KDS-END CLAMP-A |
| Product Type |
A-frame end clamp |
| Available Options |
30 mm, 35 mm, 40 mm, adjustable 30 mm - 40 mm |
| Application |
Mounting panel directly to A-frame |
| Documentation |
Fixed and adjustable data sheets and installation guides available |
