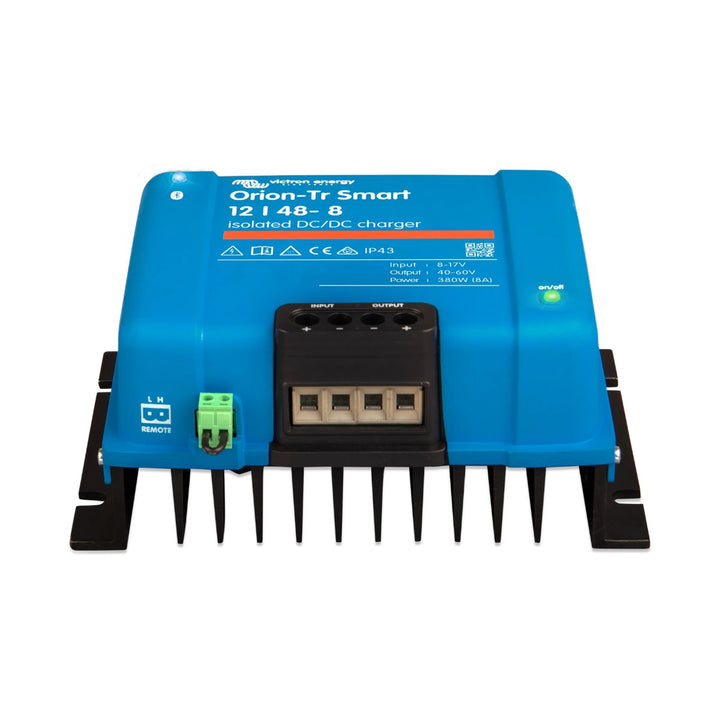

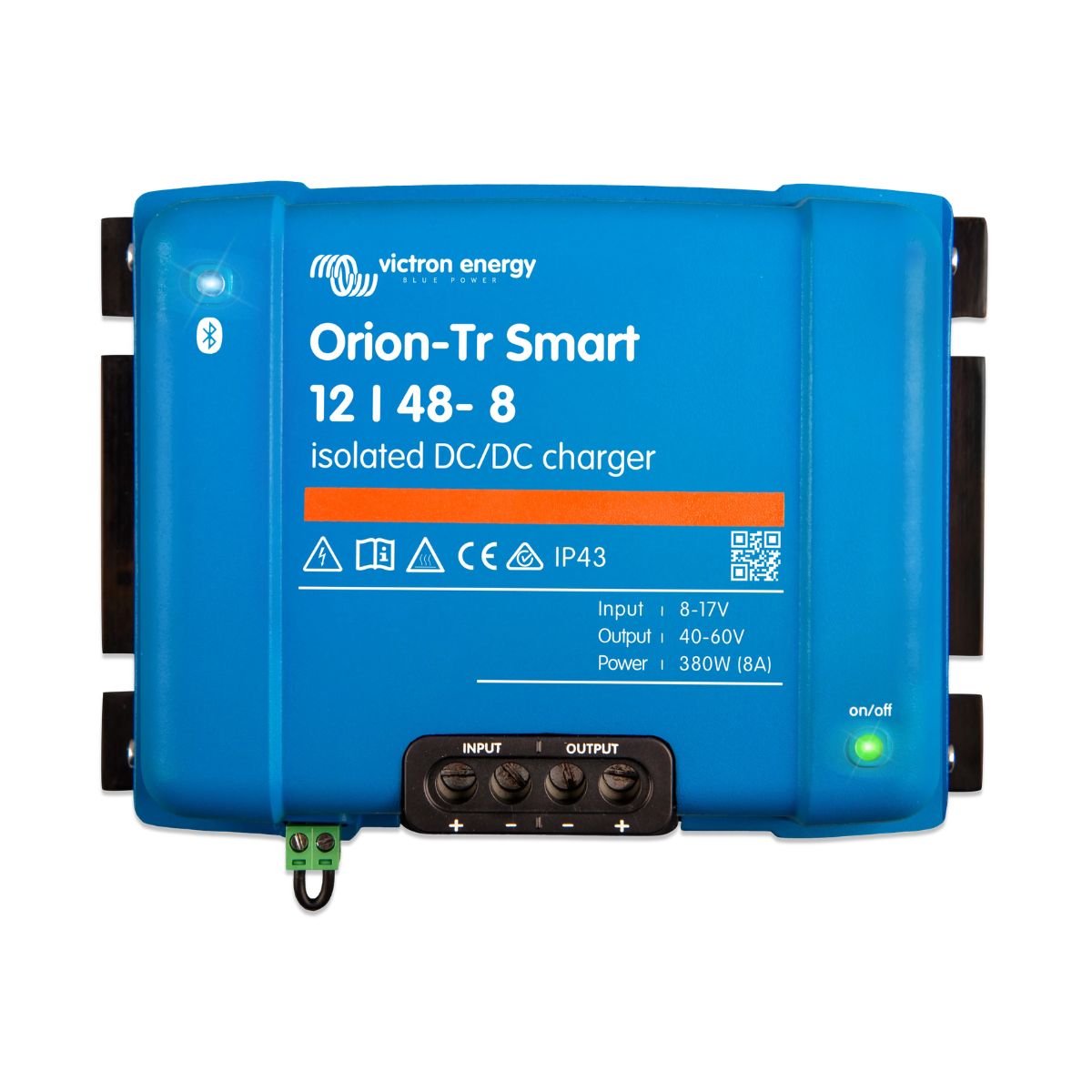

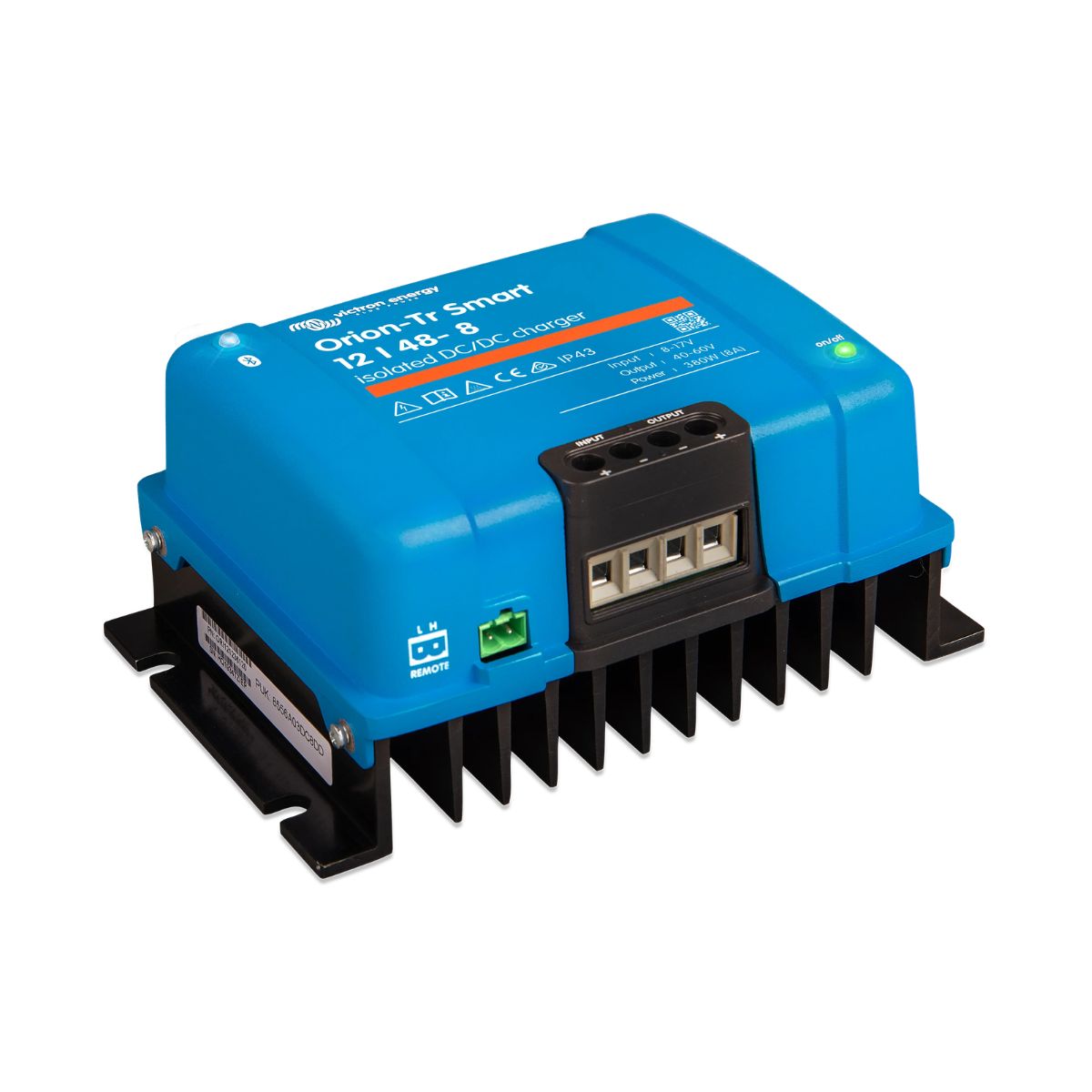

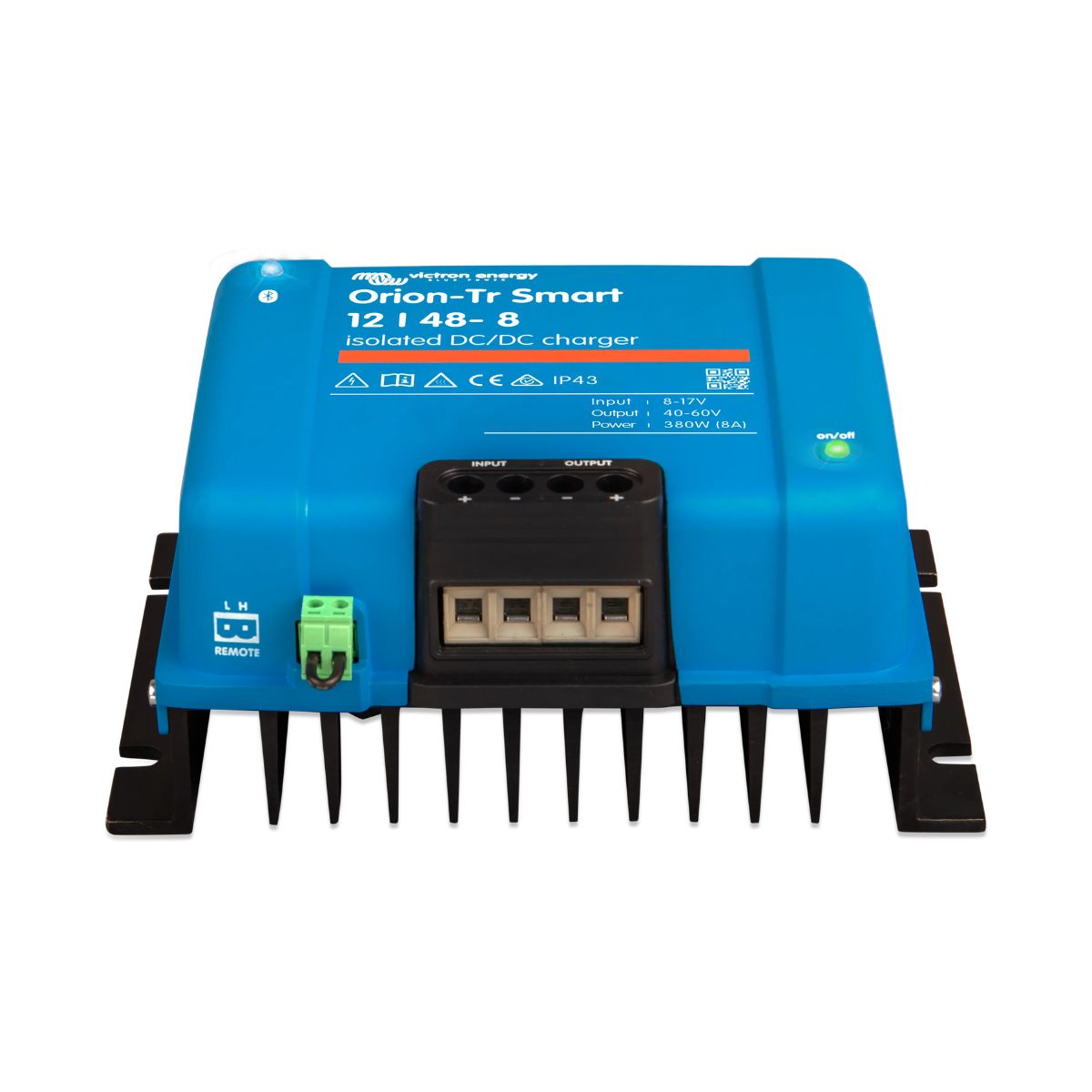

The Orion-Tr Smart 12/48-8 (360W) is a high-performance isolated DC-DC charger designed to efficiently convert and charge a 48V battery system from a 12V power source. Using advanced smart charging technology, it provides reliable power conversion while protecting sensitive equipment with galvanic isolation between input and output circuits.
With integrated Bluetooth connectivity, the charger can be easily configured, monitored, and updated using the VictronConnect app on a smartphone, tablet, or computer. Its fully programmable multi-stage charging algorithm supports both lithium and lead-acid batteries, ensuring optimal battery performance and extended lifespan.
The Orion-Tr Smart 12/48-8’s robust design, high efficiency, and wide operating temperature range make it ideal for automotive, marine, industrial, and off-grid energy systems where dependable DC power management is essential.
Key Features
- Smart DC-DC charger with built-in Bluetooth for configuration and monitoring
- Converts 12V DC input to 48V DC output for battery charging
- Fully programmable multi-stage charging algorithm
- Compatible with lithium and lead-acid batteries
- Galvanic isolation between input and output circuits for safety
- High efficiency operation up to 89%
- Remote on/off control capability
- Adaptive charging to optimize battery life
- Parallel operation supported for increased output power
- Robust design suitable for automotive, marine, and industrial applications
- VictronConnect app support for monitoring, firmware updates, and configuration
Technical Specifications – Orion-Tr Smart 12/48-8 (360W)
| Category |
Specification |
Value |
| Electrical |
Input Voltage Range |
8 – 17 V |
| Under-Voltage Shutdown |
7 V |
| Under-Voltage Restart |
7.5 V |
| Nominal Output Voltage |
48.2 V |
| Adjustable Output Voltage Range |
40 – 60 V |
| Output Voltage Tolerance |
±0.2 V |
| Continuous Output Current (40°C) |
8 A |
| Maximum Output Current (10 sec) |
15 A |
| Short-Circuit Output Current |
25 A |
| Power & Efficiency |
Continuous Output Power (25°C) |
Up to 430 W |
| Continuous Output Power (40°C) |
360 W |
| Maximum Efficiency |
Up to 89% |
| No-Load Input Current |
Approx. 220 mA |
| Environmental |
Operating Temperature Range |
−20°C to +55°C |
| Thermal Derating |
Above 40°C |
| Humidity |
Max 95% non-condensing |
| Mechanical |
DC Terminals |
Screw type |
| Maximum Cable Size |
16 mm² |
| Dimensions |
130 × 186 × 70 mm |
| Weight |
Approx. 1.7 kg |
| Safety & Compliance |
Isolation |
200 VDC |
| Compliance Standards |
EN 60950, EN 61000-6-3, EN 55014-1, ECE R10-5 |
