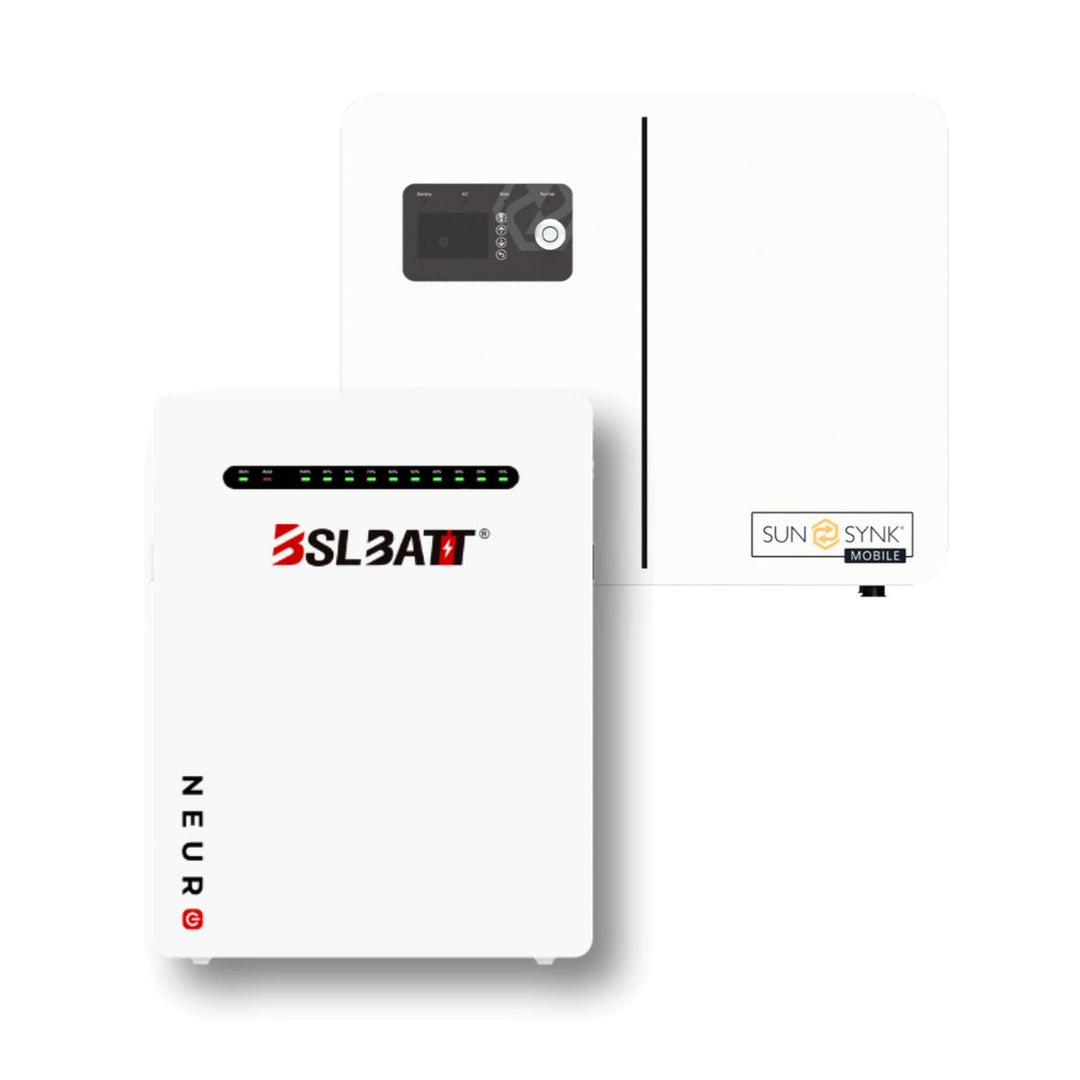

SunSynk Powerlynk 6kW Hybrid Inverter
The SunSynk Powerlynk 6kW Hybrid Inverter is a high-performance single-phase hybrid solar inverter designed for residential and small commercial energy systems. It seamlessly integrates solar PV generation, battery storage, and grid power, supplying clean, reliable power while optimizing energy self-consumption and providing backup during outages. With fast transfer times and advanced MPPT solar tracking, this inverter delivers efficient, uninterrupted power for daily use and essential loads.
This model is engineered for compatibility with modern lithium battery systems and features robust protection mechanisms, ensuring system safety and long-term reliability. It’s ideal for homeowners seeking to reduce reliance on the utility grid, lower electricity costs, and increase energy independence.
Technical Specifications
| Specification |
Details |
| Rated Output Power |
6,000 W (6 kW) |
| Peak/Surge Output |
~12 kVA |
| Phase |
Single-phase AC |
| Nominal Output Voltage |
220/230/240 V AC (configurable) |
| Output Frequency |
50/60 Hz (configurable) |
| Max Output Current |
~26 A |
| Transfer Time |
~10 ms |
| MPPT Channels |
2 independent Maximum Power Point Trackers |
| DC PV Input Voltage Range |
120–450 V |
| Max PV Input Voltage |
~500–550 V DC |
| MPPT Efficiency |
~99.5–99.9 % |
| Battery Voltage Range |
40–60 V DC |
| Max Charge Current |
Up to ~100 A |
| Max Conversion Efficiency |
~97.6 % |
| Battery-to-Load Efficiency |
~94 % |
| Safety Features |
Overcharge, over-discharge, overload, short circuit, over-temperature protection |
| Operating Temperature |
–20 °C to +50 °C |
| Protection Rating |
IP41 (indoor installation) |
Â
BSL Neuro 100Ah 5.12kWh 51.2V Lithium Battery
The BSL Neuro 100Ah 5.12kWh Lithium Battery is a high-quality residential energy storage solution built on safe, long-life LiFePOâ‚„ (Lithium Iron Phosphate) cell chemistry. Designed for hybrid solar systems, backup power applications, and energy self-consumption, this battery lets you store excess solar energy generated during the day for use at night, during peak tariff periods, or during grid outages.
Featuring an integrated Battery Management System (BMS), it delivers comprehensive protection against over-charge, over-discharge, over-current, and temperature extremes, extending both safety and lifetime performance. The modular design supports scalable expansion through parallel connection of multiple units.
Technical Specifications
| Specification |
Details |
| Model |
BSL Neuro 5.12kWh Lithium Battery |
| Battery Type |
LiFePOâ‚„ (Lithium Iron Phosphate) |
| Nominal Voltage |
51.2 V DC |
| Nominal Capacity |
100 Ah / 5,120 Wh (5.12 kWh) |
| Usable Capacity |
~4,608 Wh (90 % DoD) |
| Rated Charge Current |
~40 A / ~2.05 kW |
| Max Charge Current |
~80 A / ~4.10 kW |
| Peak Charge Current (short) |
~110 A / ~5.63 kW (1 s) |
| Rated Discharge Current |
~100 A / ~5.12 kW |
| Peak Discharge Current |
~150 A / ~7.68 kW (2 min) |
| Communication Ports |
RS232, RS485, CAN (Wi-Fi/Bluetooth optional) |
| Parallel Expansion |
Up to 63 units |
| Dimensions (H×W×D) |
590 × 460 × 147 mm |
| Weight |
~50 kg |
| Protection Level |
IP20 |
| Charge Temperature |
0 °C to +55 °C |
| Discharge Temperature |
–20 °C to +55 °C |
| Storage Temperature |
–10 °C to +45 °C |
| Humidity Tolerance |
≤60 % RH |
| Cycle Life |
>6,000 cycles @ 25 °C |
| Design Life |
15+ years |
| Warranty |
~10 years |
